Quick Details
-
Type:
-
Tire Recycling Machine
-
Dimension:
-
2300X1650X1300
-
Power:
-
15KW
-
Weight:
-
4000
-
Structure:
-
double hook
-
Color:
-
Customized
-
Advantage:
-
Easy Operation
-
Adapt tire:
-
1200
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KUSK
-
Weight (KG):
-
4000 KG
-
Type:
-
Tire Recycling Machine
-
Dimension:
-
2300X1650X1300
-
Power:
-
15KW
-
Weight:
-
4000
-
Structure:
-
double hook
-
Color:
-
Customized
-
Advantage:
-
Easy Operation
-
Adapt tire:
-
1200

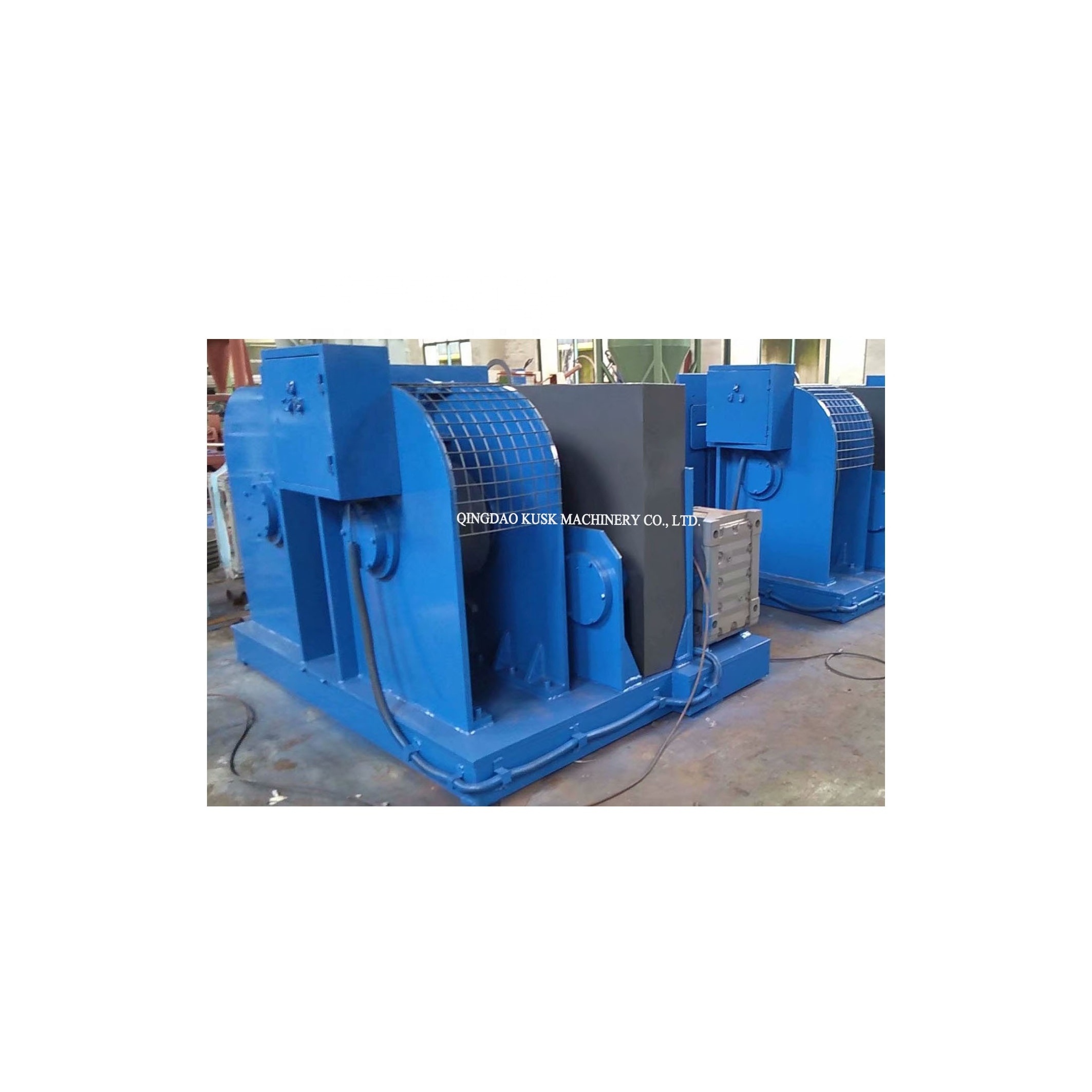

Used Tyre Machine Tire Debeader/Tire Wire Separator Double Hook Puller Machine
Debeader(puller) is used to pull out bead wires inside two tire sidewalls comletely and simultaneously(tyre/tire recyling)
SG Double Hook Debeader is used to pull out bead wires inside two tire sidewalls comletely and simultaneously before nex cutting ans shredding process
(tire recycling plant,tyre recycling,rubber powder plant,rubber crumb plant,shredder,tire shredder,tire grinder)
Waste tyre used tire recycling machine
.tyre crusher
|
Item |
XKP-560 |
|
Diameter of front roll(mm) |
560 (smooth) |
|
Diameter of back roll(mm) |
510 (groove) |
|
Working length(mm) |
800 |
|
Linear speed of front roll(m/min) |
25.56 |
|
Ratio |
1:1.30 |
|
MAX gap(mm) |
15 |
|
capacity(kg/h) |
600-800 |
|
Motor power(kw) |
90 |
|
Dimension (l*w*h)(mm) |
5064*2284*1978 |
|
Weight(kg) |
19000 |
Tire ring cutter
|
Ring cutter Item |
Specification |
|
motor power |
5.5 kw |
|
Capacity pc/h |
80-100 |
|
Motor speed |
1440/min |
|
Max Diameter of tyre |
1200mm |
|
Size L*W*H |
1300X900X1200 |
|
Weight |
About 500kg |
Strips cutter machine
|
Strip cutter Item |
Parameter |
|
Production efficiency kg/h |
1000-2000 |
|
Motor Power |
7.5kw |
|
Disc Diameter |
380mm |
|
Rotate Speed |
1440r/min |
|
Weight |
About 900kg |
Block cutter machine
|
Specification |
|
|
Capacity kg/h |
1500 |
|
motor power |
18.5 kw |
|
Speed of main screw |
420 r/min |
|
Out diameter of cutter |
200mm |
|
Dimension:(L*W*H)mm |
1130x850x1250 |
|
Weight |
About 900kg |
Steel separator machine
|
Steel separator Item |
Specification |
|
Motor power |
18.5 KW |
|
Linear speed of front roller |
1440r/min |
|
Ratio of speed |
1.1 r/min |
|
Dimension L*W*H mm |
1500x900x1400 |
|
Weight |
About 1500kg |
....
