Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
290 mm
-
Travel (Y Axis)(mm):
-
390 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
0.4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
XYZ=290*390*95mm
-
Power (kW):
-
0.4
-
Weight (KG):
-
35
-
After-sales Service Provided:
-
Overseas service center available
-
Communication interface:
-
USB Port
-
Spindle Motor::
-
400W DC spindle , 0-9000r/min
-
Command code:
-
G code/.nc/.ncc/.tab/.txt
-
Patability::
-
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
-
Repeat positioning Accuracy::
-
0.02mm
-
Weight:
-
35kg
-
Certification:
-
CE
-
Power:
-
400W Spindle Motor
-
System Requirements::
-
Win-XP / Win 7 Win 8 Win10 Software Co
Quick Details
-
Working Table Size(mm):
-
300×400
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 9000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
290 mm
-
Travel (Y Axis)(mm):
-
390 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
0.4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
XYZ=290*390*95mm
-
Power (kW):
-
0.4
-
Weight (KG):
-
35
-
After-sales Service Provided:
-
Overseas service center available
-
Communication interface:
-
USB Port
-
Spindle Motor::
-
400W DC spindle , 0-9000r/min
-
Command code:
-
G code/.nc/.ncc/.tab/.txt
-
Patability::
-
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
-
Repeat positioning Accuracy::
-
0.02mm
-
Weight:
-
35kg
-
Certification:
-
CE
-
Power:
-
400W Spindle Motor
-
System Requirements::
-
Win-XP / Win 7 Win 8 Win10 Software Co

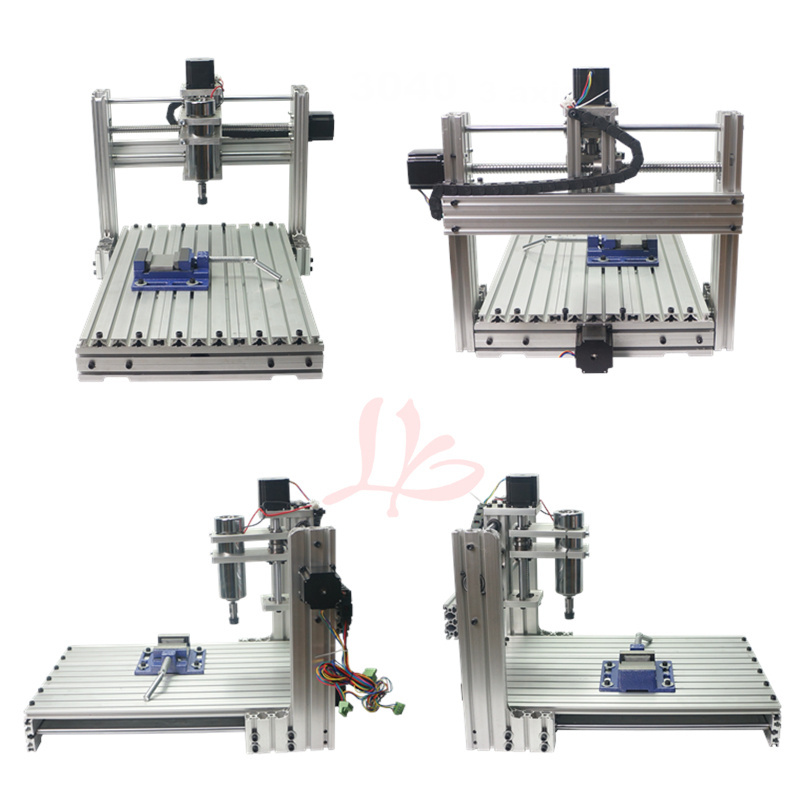

Engraving machine DIY CNC 3040 metal
CNC Router /Engraving Drilling and Milling Machine
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Model and Technical Parameters
|
MODEL |
3040 metal |
|||
|
Attribute |
3axis |
4axis |
5axis |
Only frame |
|
Axis |
3axis |
4axis |
5axis |
3axis |
|
Interface |
USB Port |
USB Port |
USB Port |
No |
|
Spindle Motor: |
400W |
400W |
400W |
No |
|
Weigh |
27 |
31 |
33 |
22 |
|
Max. working stroke |
XYZ=290*390*95mm |
|||
|
Acceptable material thickness |
≤ 120mm |
|||
|
Rail type |
X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis |
|||
|
Spindle motor |
400W DC spindle , 0-9000r/min |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
||||
|
Repeat positioning Accuracy |
0.02mm |
|||
|
Communication interface |
USB Port |
|||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
4th Axis Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
|||
|
5th Axis Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
|||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Sale a and after-sale Service:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
