Kinger top sale low price farm 2 wheel walking tractor

FOB Reference Price: Get Latest Price
≥1 Sets
US $500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Clutch:
Single plate, dry type, with permanent adhesion, friction type
Min. Ground Clearance(mm):
210mm
Tire model:
6.00-12
Structural Weight (without attachments):
290kg
Implements:
Plough Harrow Cultivator
Options:
Hydraulic Valve
Color:
Customer Requirements
OEM service:
yes

Quick Details

Place of Origin:
Shandong, China
Product name:
Kinger top sale low price farm 2 wheel walking tractor
Engine:
8.82kw /12hp water cooled
Clutch:
Single plate, dry type, with permanent adhesion, friction type
Min. Ground Clearance(mm):
210mm
Tire model:
6.00-12
Structural Weight (without attachments):
290kg
Implements:
Plough Harrow Cultivator
Options:
Hydraulic Valve
Color:
Customer Requirements
OEM service:
yes
Product Description

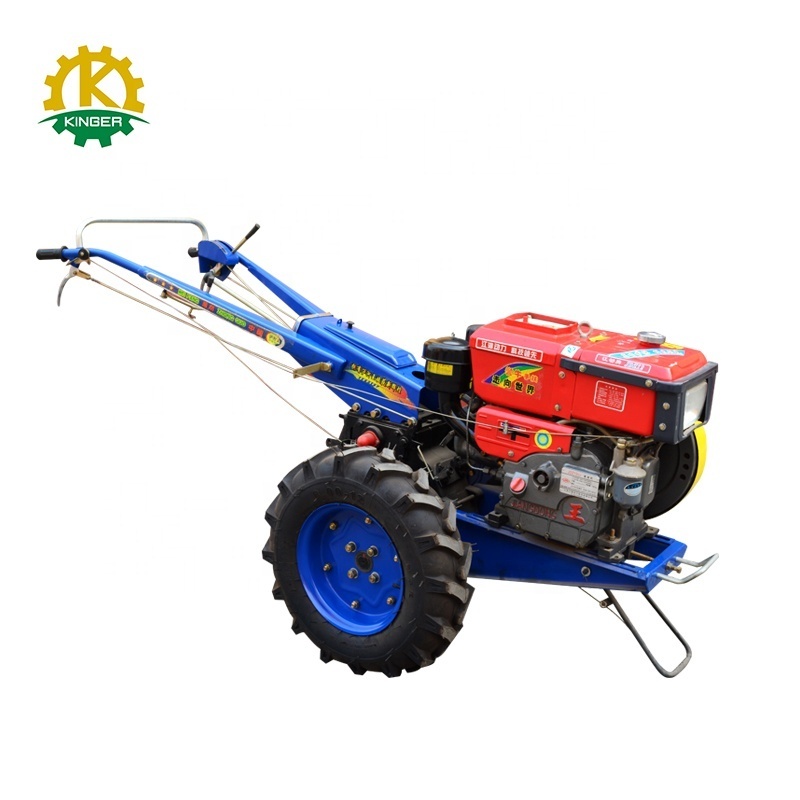

Kinger top sale low price farm 2 wheel walking tractor

performance


The hand tractor is dual-function that can be operated as the towing machine as well as driving machine. It has small and compact structure, light weight,  reliable performance, long service life,  easy operation and good running ability, also they are be assemble a seating equipment for driver .


application

The hand tractor is suitable for working in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can be used for ploughing,harrowing,seeding, cultivating, harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing,milling,and so on.


Model
GH-12
Engine Power
8.82kw / 12hp, 2000rpm
Engine Type
Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled
Starting System
Z - shaped handel / electric
Overall Dimensions
2180×890×1250mm
Wheel Base
680-740mm
Min. Ground Clearance
210mm
Semi-axlis
340mm
Structural Weight (without attachments)
290kg
Weight in use ( with oil, water, tools)
360kg
Wheels
6.00-12 (GB1192-82), herringbone tread pattern

Tire Pressure
Field condition 80-120 (~0.8 lbs 1.2kg/cm2)
Transportation 140-200 (~2.00 lbs 1.40kg/cm2)
Rotation Speed PTO
1176 rev. / Minute
A pair of V-belts
B1850
Clutch
Single plate, dry type, with permanent adhesion, friction type
Gears
(3+1)×2, driven by a cylindrical pinion
Forward Speed
F1: 1.68km/h F 2: 2.61km/h F3: 4.22km/h F 4: 6.79km/h F5: 10.57km/h F 6: 17.08km/h
Reverse Speed
Reverse 1: 1.29km/h Reverse 2: 5.22km/h
Max. volume of lubricating oil in the gearbox
5L

Rotary Tiller
Width of the rototillers cultivation : 100cm
Weight of the rototillers assembly: 56kg

Single Plough
The width of the plow: 25cm
Weight of the single plow: 18.5kg
Rated loading weight for the trailer
1000kg
Our Company

Weifang Kinger Machinery Co. Ltd is a company which has more than 10 years'exporting experiences of tractors and farming machinery. We have very much learned about the strengths and weaknesses of these machines. Some products are under the help of our European customers.Now Kinger products can be found working in more than 80 countries.

Products research and development is always the most important factors in Kinger's success. Excellent after-service can earn more market; this will always be first principle in Kinger's culture.Choose Kinger, excellent service will be guaranteed.

We hope our professional experience and skills can bring you prosperity, and we look forward to establishing good, long-term business relationship with all of our customers.
