Quick Details
-
Weight:
-
1500kg-10000kg
-
Size:
-
3.2m*2.4m*2.2m~12.5m*4.4m*2.5m
-
Power:
-
0.25-0.5kw
-
Brand:
-

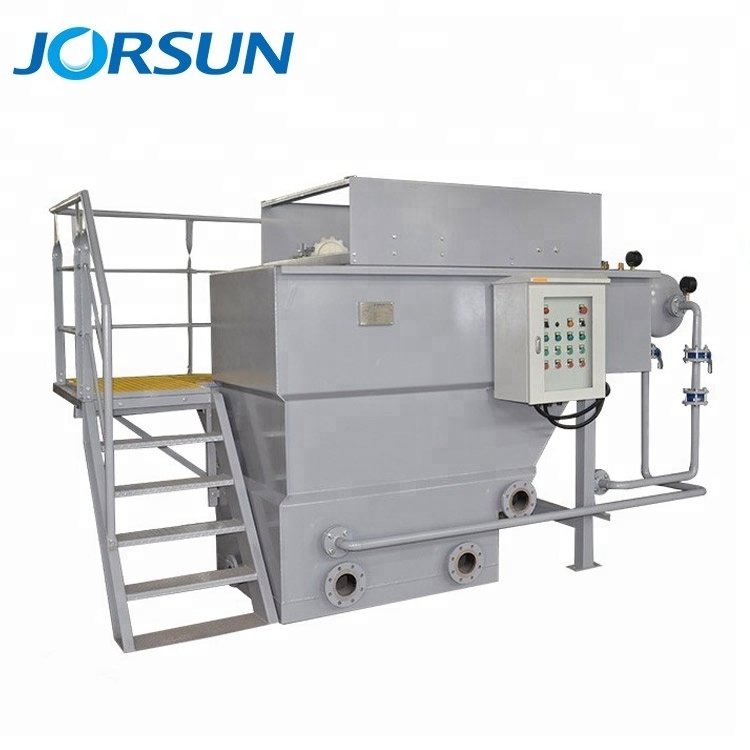

Jorsun dissolved air flotation
-
Performance:
-
Micro bubble and high effective
-
Capacity:
-
70m3/h DAF
-
Wastewater Inlet (a):
-
250
-
Wastewater Outlet (b):
-
200
-
Sludge Outlet (c):
-
150
-
Skimmer(kW):
-
0.2
-
Air compressor(kW):
-
1.5
-
Dimension(m):
-
(9.0/9.5)L*(2.8/3.8)W*(2.3/2.7)H
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jorsun
-
Material:
-
Stainless steel, Carbon steel, Carbon steel DAF
-
Weight:
-
1500kg-10000kg
-
Size:
-
3.2m*2.4m*2.2m~12.5m*4.4m*2.5m
-
Power:
-
0.25-0.5kw
-
Brand:
-
Jorsun dissolved air flotation
-
Performance:
-
Micro bubble and high effective
-
Capacity:
-
70m3/h DAF
-
Wastewater Inlet (a):
-
250
-
Wastewater Outlet (b):
-
200
-
Sludge Outlet (c):
-
150
-
Skimmer(kW):
-
0.2
-
Air compressor(kW):
-
1.5
-
Dimension(m):
-
(9.0/9.5)L*(2.8/3.8)W*(2.3/2.7)H
|
Model |
Capacity |
Power(kw) |
Dimension(m) |
Nozzle list ( DN ) |
||||||
|
(m^3/h) |
Recirculation pump |
Air compressor |
Skimmer |
L/L1 |
W/W1 |
H/H1 |
Inlet |
Outlet |
Sludge outlet |
|
|
DAF-002 |
~2 |
0.75 |
0.55 |
0.2 |
3.3/2.5 |
2.4/1.16 |
2.1/1.7 |
50 |
50 |
80 |
|
DAF-003 |
~3 |
0.75 |
0.55 |
0.2 |
3.6/2.8 |
2.4/1.16 |
2.1/1.7 |
50 |
50 |
100 |
|
DAF-005 |
~5 |
1.1 |
0.55 |
0.2 |
3.9/3.0 |
2.4/1.16 |
2.1/1.7 |
80 |
50 |
100 |
|
DAF-010 |
~10 |
1.1 |
0.55 |
0.2 |
4.3/3.2 |
2.9/1.66 |
2.3/1.9 |
100 |
100 |
100 |
|
DAF-015 |
~15 |
2.2 |
0.75 |
0.2 |
5.4/4.3 |
2.9/1.66 |
2.3/1.9 |
100 |
100 |
100 |
|
DAF-020 |
~20 |
3.0/5.5 |
0.75 |
0.2 |
5.4/4.3 |
3.1/2.16 |
2.3/1.9 |
150 |
100 |
100 |
|
DAF-030 |
~30 |
3.0/5.5 |
0.75 |
0.2 |
6.5/5.4 |
3.1/2.16 |
2.3/1.9 |
150 |
150 |
150 |
|
DAF-040 |
~40 |
3.0/5.5 |
0.75 |
0.2 |
6.7/5.5 |
3.6/2.7 |
2.7/2.3 |
200 |
150 |
150 |
|
DAF-050 |
~50 |
7.5 |
1.5 |
0.2 |
7.6/6.3 |
3.6/2.6 |
2.7/2.3 |
200 |
150 |
150 |
|
DAF-060 |
~60 |
7.5 |
1.5 |
0.2 |
7.9/6.6 |
4.0/3.0 |
2.7/2.3 |
250 |
200 |
150 |
|
DAF-070 |
~70 |
11 |
1.5 |
0.2 |
9.2/7.9 |
4.0/3.0 |
2.7/2.3 |
250 |
200 |
150 |
|
DAF-080 |
~80 |
11 |
1.5 |
0.2 |
9.6/8.4 |
4.0/3.0 |
2.7/2.3 |
250 |
200 |
150 |
|
DAF-100 |
~100 |
15 |
2.2 |
0.2 |
10.7/9.4 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
|
DAF-120 |
~120 |
15 |
2.2 |
0.2 |
11.7/10.4 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
|
DAF-150 |
~150 |
18.5 |
2.2 |
0.2 |
12.5/11.4 |
4.4/3.8 |
2.7/2.3 |
300 |
300 |
150 |
ABOUT JORSUN
- Jorsun established in Shanghai 2004.
- Jorsun pursues the aim of “focus on separation,service for environment”. Committed to separation technology research and development, marketing,equipment manufacturing and services.
- Jorsun main products and services include: XAF® series DAF, Lamella Clarifier, integrated applications.There are more than 1,000 successful references in the worldwide over 40 countries till now, such as paper,petrochemical, printing and dyeing, leather, pharmaceuticals, iron and steel, electronics, food, rivers and community landscape water purification, WWTP advanced treatment and recycled water reuse and some other industries or fields.
- Jorsun adheres to the integrity,profession, safety, innovation company value, to meet customer demands ,has won more extensive customers.
- Jorsun is in pursuit of high quality, continuous innovation,determined to contribute more to environmental protection,become a leader of separation in water fields.
FAQ
Q: How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
Q:How to pay?
A:TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q:What is the delivery time?
A:It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
Q:How to pack the products?
A:We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
Q:How to keep your equipments from corrosion?
A:We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
Q:How do you manufacture your equipment?
A:Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
Q:How to install after the equipments arriving destination?
A:We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
