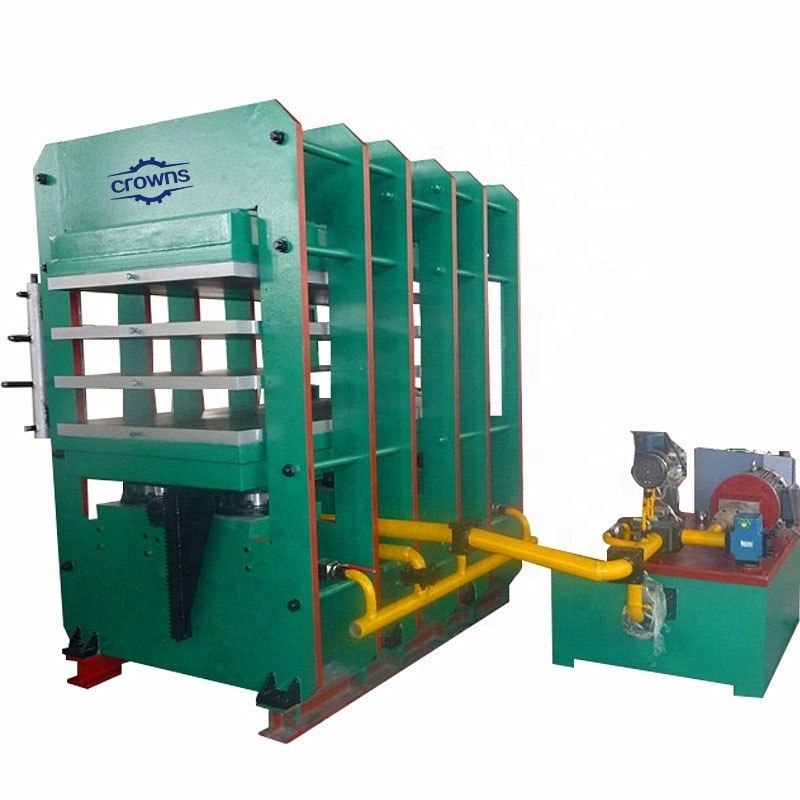

Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine
Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine
Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine
Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine
Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine
Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine
Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine
Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine

Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $18190
≥2 Sets
US $17200
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Year:
2023
Power (kW):
20 kW
Weight (KG):
40000 KG
Name:
Conveyor Belt Hydraulic Press
Application:
Various kinds of rubber products
Belt cord:
Steel wire or Textile
Width:
600-2800mm
Clamping force (MM):
0.9
platen size(L*M) (MM):
1400*10000mm
Total pressure (MN):
49
Piston Stroke (mm):
300 mm
Nominal Moulding Power (MN):
16.00 MN
Heating Method:
Electricity /Steam

Quick Details

Place of Origin:
Shandong, China
Voltage:
380V/50HZ
Dimension(L*W*H):
10000*2400*3580mm
Year:
2023
Power (kW):
20 kW
Weight (KG):
40000 KG
Name:
Conveyor Belt Hydraulic Press
Application:
Various kinds of rubber products
Belt cord:
Steel wire or Textile
Width:
600-2800mm
Clamping force (MM):
0.9
platen size(L*M) (MM):
1400*10000mm
Total pressure (MN):
49
Piston Stroke (mm):
300 mm
Nominal Moulding Power (MN):
16.00 MN
Heating Method:
Electricity /Steam
Rubber Conveyor Belt Making Machine Hot Press Machine Conveyor Belt Hydraulic Press Rubber Press Molding Machine


Introduction
Conveyor Belt Hydraulic press is mainly used for the production, manufacturing, and repair of various types of conveyor belts, such as conveyor belt systems used for handling and transportation, to bond and vulcanize various components of the conveyor belt to ensure they have the required strength and durability.
Working Principle
The working principle of Conveyor Belt Hydraulic press is to combine the conveyor belt system with hydraulic stamping function.By applying pressure and heat to the conveyor belt material, different layers of the conveyor belt are connected together to form a sturdy and durable conveyor belt.
Commonly Used Models

parameters\version
XLB-1400*5700*2
XLB-1400*10000*1
XLB-1600*10000*2
XLB-1800*8000*2
XLB-1800*12000*2
XLB-2000*10000*1

platen size(L*M) (MM)
1400*5700
1400*10000
1600*10000
1800*8000
1800*12000
2000*10000

Total pressure (MN)
25
49
56
51
74
70

pressure unit of plate(mpa)
3.13
3.5
3.5
3.54
3.4
3.5

Ram diameter(MM)
360
450
450
600
500
600

Quantity of ram (MM)
10
20
18
12
18
16

Max.ran stroke (MM)
400
300
400
600
400
300

Clamping force (MM)
0.72
0.9
1.2
1.2
1.2
1.2

Tension force (MN)
0.6
0.8
1.1
1
1.1
1

Steam pressure (Mpa)
0.63
0.63
0.63
0.63
0.63
0.63

Pressure of cooling water (Mpa)
0.3
0.3
0.3
0.3
0.3
0.3

Application
Conveyor belt
Conveyor belt
Conveyor belt
Conveyor belt
Conveyor belt
Conveyor belt

Control form
PLC
PLC
PLC
PLC
PLC
PLC

Overall dimensions
(MM)
Length
5700
10000
1000
2700
2000
10000
Width
2350
2400
2660
8000
12900
3100
Height
4170
3580
4120
4500
3930
4400
1.Vulcanizing unit adapted to ordinary rubber vulcanized conveyor belt nylon belt / PVG conveyor belt and other wire rope core parallel fabric tape.

2.Host-frame structure, hot plate and the plunger are made of high-quality material processing precision is not easy wear and easy maintenance is not easy work stress corrosion stable easy to adjust.

3.With PLC control, curing process can be multi process control, can automatically detect and adjust the hot plate temperature, increase the level of control of plate curing unit, reducing labor intensity and improve production efficiency.
Application
CROWNS MACHINERY
Qingdao crowns machinery co.,ltd was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We
are specialized in rubber and plastic machinery designing,manufacturing and maintenance work.we have been specializing in rubber and plastic machinery and production line for more than 30 years.

CROWNS MAIN PRODUCTS

* Rubber mixing equipment: kneader mixing machine, bucket,mixing mill, bale cutter
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.

Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.

Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.

Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
