- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Baiji
-
Dimension(L*W*H):
-
3340x1680x2800mm
-
Weight:
-
2500 KG, 7500kg
-
Function:
-
Palletizing, Stacking, Carrying, Packing and so on
-
Bottle type:
-
carton box, plastic bottle, bag, can etc.
-
Quantity of layer:
-
2-8 layers
-
Capacity:
-
35-40 cases/min
-
Power:
-
15kw
-
Dimension of Machine:
-
L9120mm *W6150mm*H3545mm
-
Max Loading Height:
-
1750mm
-
Max Loading Weight:
-
1600kg
-
Name:
-
500ml bottle PE film package carton box robot palletizer machine
Quick Details
-
Application:
-
Food, Beverage
-
Packaging Material:
-
Plastic
-
Voltage:
-
380V 50hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Baiji
-
Dimension(L*W*H):
-
3340x1680x2800mm
-
Weight:
-
2500 KG, 7500kg
-
Function:
-
Palletizing, Stacking, Carrying, Packing and so on
-
Bottle type:
-
carton box, plastic bottle, bag, can etc.
-
Quantity of layer:
-
2-8 layers
-
Capacity:
-
35-40 cases/min
-
Power:
-
15kw
-
Dimension of Machine:
-
L9120mm *W6150mm*H3545mm
-
Max Loading Height:
-
1750mm
-
Max Loading Weight:
-
1600kg
-
Name:
-
500ml bottle PE film package carton box robot palletizer machine
Product Description

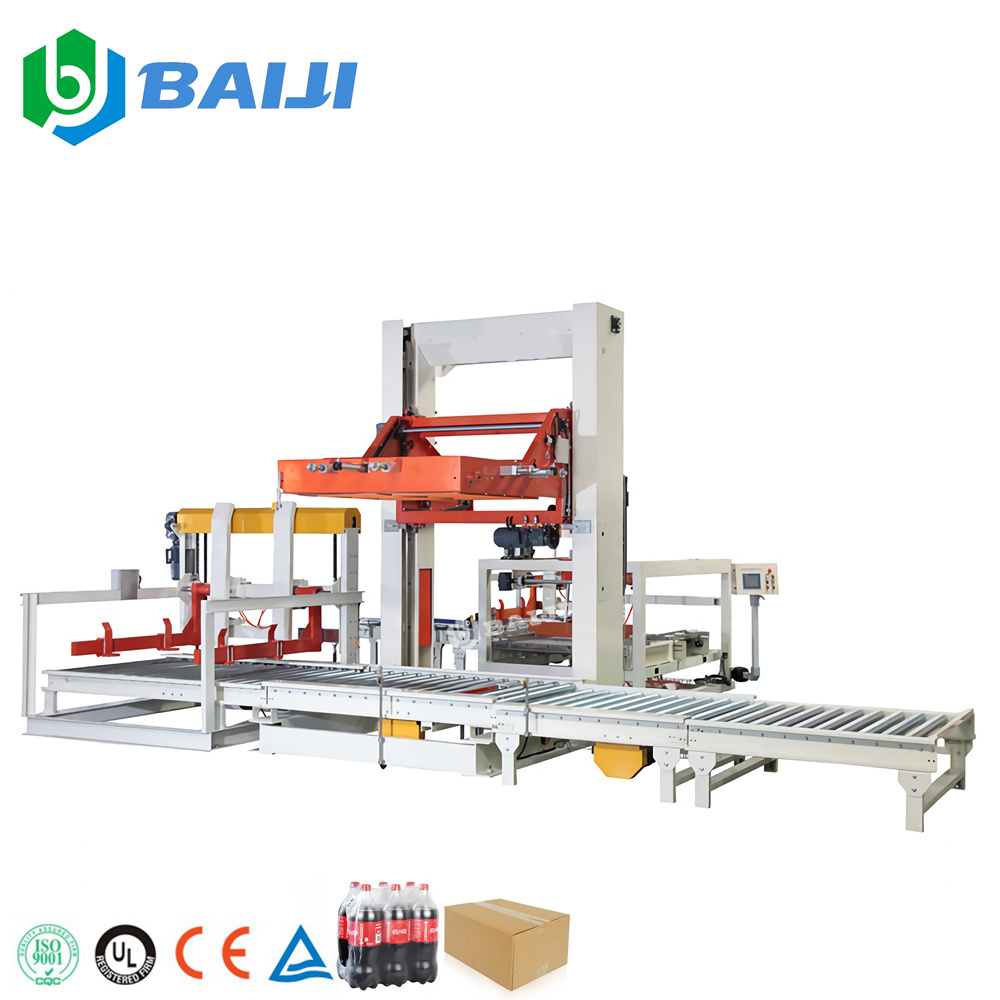

Fully automatic 5 gallon 500ml bottle PE film package carton box robot palletizer machine
1. Touch-screen operation is used to realize human-machine interaction, which can display production speed, cause and location of faults, and has a high degree of automation. The use of PLC programmable sorting cartons of stacking layers, pallet supply and discharge can be programmed into the control.
2. Stacking method is easy and simple to adjust and can be performed on the touch screen.
3. The pallet storage has a large capacity and can hold 10-12 empty pallets. It can realize automatic pallet supply.
4. Several stacking methods can be completed without replacing stacking parts.
Detailed Images
|
Model
|
BJ40
|
BJ40D
|
|
|
Capacity
|
35-40 cases/min
|
36-50 cases/min
|
|
|
Working Air Pressure
|
0.6~0.8Mpa
|
|
|
|
Power
|
15kw
|
23kw
|
|
|
Weight
|
7500kg
|
11000kg
|
|
|
Dimension of Machine
|
L9120mm*W6150mm*H3545mm
|
15100mm*6150mm*3545mm
|
|
|
Max Loading Height
|
1750mm
|
|
|
|
Max Loading Weight
|
1600kg
|
|
|
