Quick Details
-
Power:
-
22-369KW
-
Dimension(L*W*H):
-
depends on different model
-
Weight:
-
15800 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
blue, gray, yellow, while, red, or as clients' request
-
Product name:
-
sand making machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Deya
-
Voltage:
-
220 - 480 V,clients'
-
Power:
-
22-369KW
-
Dimension(L*W*H):
-
depends on different model
-
Weight:
-
15800 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
blue, gray, yellow, while, red, or as clients' request
-
Product name:
-
sand making machine
Contact us directly to get more information whatsapp & wechat: +86 137 2141 9876
Working principle of VSI sand making machine
VSI sand making machine is mainly used for sand making in construction, it is the advanced equipment for producing artificial sand, which is specially designed to provide high quality sand and aggregate for the construction of highway, high-speed railroad, high-rise building, municipal, hydropower dam and concrete mixing plant, and it is also the shaping equipment in the field of artificial sand making and aggregate plant.
Usually it is worked with vibrating feeder, stone crusher, vibrating screen, sand washer, crusher, etc. to form a more economically and efficiently sand making line.
VSI sand making machine investment is 35% to 50% lower than the same scale of traditional process equipment, but output efficiency is 35% to 50% higher than the same scale of traditional process equipment.
For example, limestone with a finished product size ≤ 5mm accounted for more than 90%, river pebbles a finished product size ≤5mm accounted for more than 80%.
Long-term operation and maintenance cost is 35% to 50% lower than the same scale of traditional process equipment, it is widely used in the mechanism of sand and stone materials, cement, resistant materials, metallurgy and other industries.
Technical parameters of VSI sand making machine
|
Model |
VSI7611 |
VSI8518 |
VSI9526 |
VSI1140 |
|
|
Capacity (t/h)
|
Center and Ring feeding |
120-180 |
200-260 |
300-380 |
450-520 |
|
Center feeding |
60-90 |
100-130 |
150-190 |
225-260 |
|
|
Max Feed Size (mm) |
Soft material |
<35 |
<40 |
<45 |
<50 |
|
|
Hard material |
<30 |
<35 |
<40 |
<45 |
|
Rotation speed (r/min) |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
|
|
Power for double motor ( KW ) |
2×55 (75) |
2×90 (125) |
2×132 (175) |
2×200 (270) |
|
|
Overall Dimension L×W×H (mm) |
4100×2250×2285 |
4140×2280×2425 |
4560×2450×2780 |
5100×2690×3200 |
|
|
Weight ( Ton ) |
10 |
12.5 |
14.5 |
19 |
|
|
Lubrication hydraulic pressure station
|
Power for double oil pump |
2×0.25(0.33) |
|||
|
Safety |
To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter. |
||||
|
Overall dimension L×W×H(mm) |
820×520×1270 |
||||
|
Power for oil box heater |
2 kW |
||||

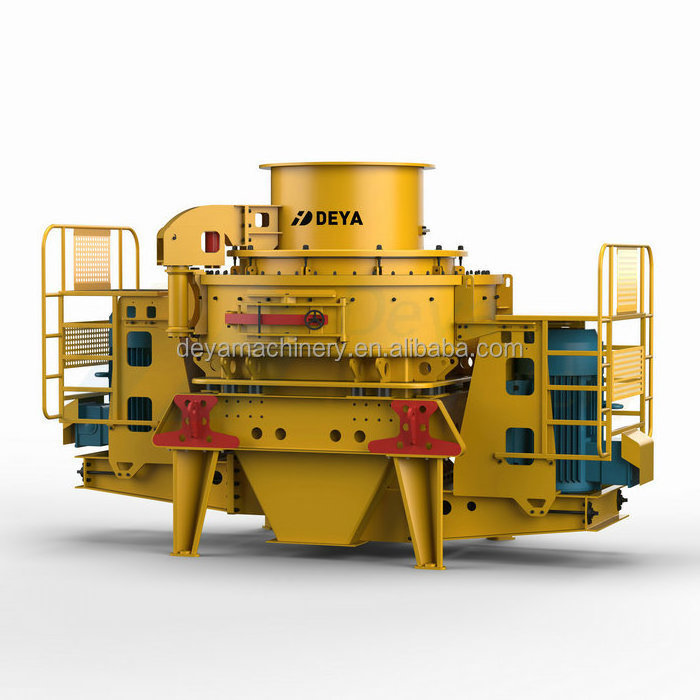

VSI sand making machine produced by deya machinery
New technical data for reference
Related equipment cone crusher
Deya Machinery offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Deya workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
