Quick Details
-
Warranty:
-
12 Months Except The Flow Parts(Wetted Parts), 12 Months Except The Flow Parts(Wetted Parts)
-
Brand Name:
-
An Pump
-
Model Number:
-
QI single stage pump
-
Place of Origin:
-
China
-
Horsepower:
-
as customer's requirement
-
Cable Length:
-
as customer's requirement
-
Outlet Size:
-
as customer's requirement
-
Power:
-
as customer's requirement
-
Certificates:
-
ISO,CE,BV,TUV
-
Shaft Seal:
-
Packing Seal, Mechanical Seal, Expeller Seal
-
Connection Type:
-
Belt, Direct Coupling
-
Driven:
-
Electric Motor, Diesel Engine, VFD
-
Material:
-
Cast Iron,Steel,SS,Brass,A03,A05,Alloy,Gray Iron,CS,Gg,Chrome,Rubber
-
Package:
-
Standard export fumigated wood case with inner plastic
-
OEM:
-
Available
-
Pipes:
-
Available
-
Valves:
-
Available
Quick Details
-
Application:
-
Biofuel Industry, Food and Beverage Industry, Industrial Utilities, Pharmaceutical industry, corrosion resisting centrifugal pump, chemical fluids transfer, pulp fluid transport, light slurry handling, Commercial hot water circulation, commercial water booster, drinking water treatment, irrigation, desalination, heat supply, Process water treatment, Water distribution networks, Heating and cooling system, General industry application, fibrous slurries handling, viscous liquids pumping, clean and slightly contaminated liquids processing
-
Pressure:
-
high pressure water pump
-
Voltage:
-
as customer's requirement
-
Warranty:
-
12 Months Except The Flow Parts(Wetted Parts), 12 Months Except The Flow Parts(Wetted Parts)
-
Brand Name:
-
An Pump
-
Model Number:
-
QI single stage pump
-
Place of Origin:
-
China
-
Horsepower:
-
as customer's requirement
-
Cable Length:
-
as customer's requirement
-
Outlet Size:
-
as customer's requirement
-
Power:
-
as customer's requirement
-
Certificates:
-
ISO,CE,BV,TUV
-
Shaft Seal:
-
Packing Seal, Mechanical Seal, Expeller Seal
-
Connection Type:
-
Belt, Direct Coupling
-
Driven:
-
Electric Motor, Diesel Engine, VFD
-
Material:
-
Cast Iron,Steel,SS,Brass,A03,A05,Alloy,Gray Iron,CS,Gg,Chrome,Rubber
-
Package:
-
Standard export fumigated wood case with inner plastic
-
OEM:
-
Available
-
Pipes:
-
Available
-
Valves:
-
Available

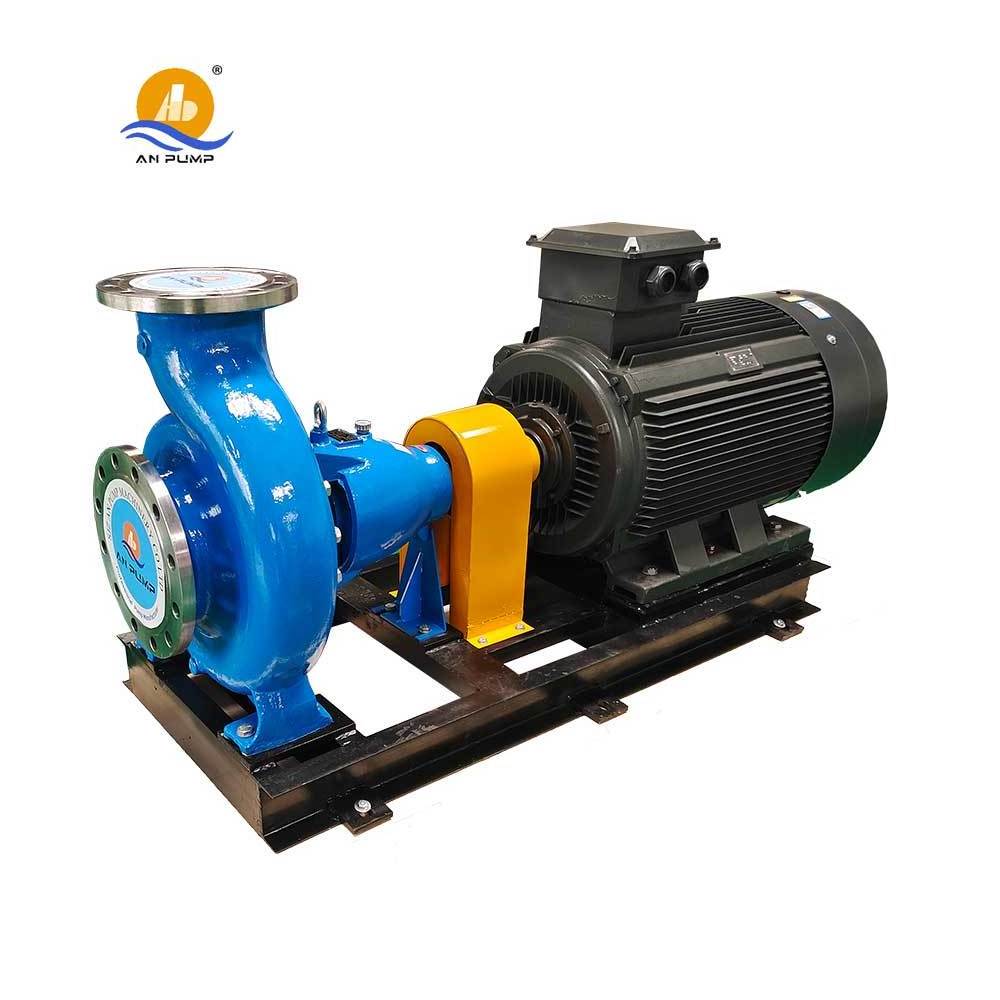

End suction centrifugal back pull-out design corrosion-resistant pump
QI series single stage single suction centrifugal water pumps (end suction pump) comply with ISO2858 international standard.
Easy installation and move, open back structure makes it easy to take out the rotor.
Discharge on top center, pump body supported by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load.
No overload design, make sure performance operate stably.
Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance.
Packing seal and mechanical seal are available.
Construction
1.casing 2.casing cover 3. impeller 4 shaft 5 wear ring 6 impeller nut
7 break gasket 8 shaft sleeve 9 gland 10 water seal ring 11 packing 12 bearing bracket
Performance Chart
| Type | Flow | Head | Power |
| (m3/h) | (m) | (KW) | |
| QI50 | 3.4-15 | 3.7-68.8 | 0.55-11 |
| QI65 | 6.8-30 | 3.7-126.8 | 0.55-30 |
| QI80 | 13.6-60 | 3.6-128 | 0.55-45 |
| QI100 | 27.3-120 | 3.4-115.5 | 1.5-75 |
| QI125 | 56-240 | 8.5-132.5 | 2.2-110 |
| QI150 | 99-240 | 12.4-57.5 | 15-55 |
| QI200 | 197.7-460 | 14.8-55.8 | 30-90 |
| QI 250 | 320-760 | 22.6-52 | 75-132 |
| QI 300 | 530-1200 | 21.9-38 | 90-132 |
How can I make order online?
Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Can you produce the pump with my own brand?
Yes, we have been offering OEM service for 30 years.
Could we pay a visit to your factory?
Yes, you are always welcome to visit our factory.
Is there any after-sales service?
Yes, we can arrange our engineer to go to your application site for assembly or maintenance.
Can you produce goods with special specification?
First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
