Quick Details
-
Range of Spindle Speed(r.p.m):
-
5 - 160 r.p.m
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
22
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hotonmc
-
Model Number:
-
C516 C518 C5112 C5116 C5118 C5123 C5125 C5131
-
Voltage:
-
220V 380V 415V
-
Dimension(L*W*H):
-
2.2x3.2x2.35m
-
Weight (KG):
-
12100 KG
-
Marketing Type:
-
New Product
-
Product Name:
-

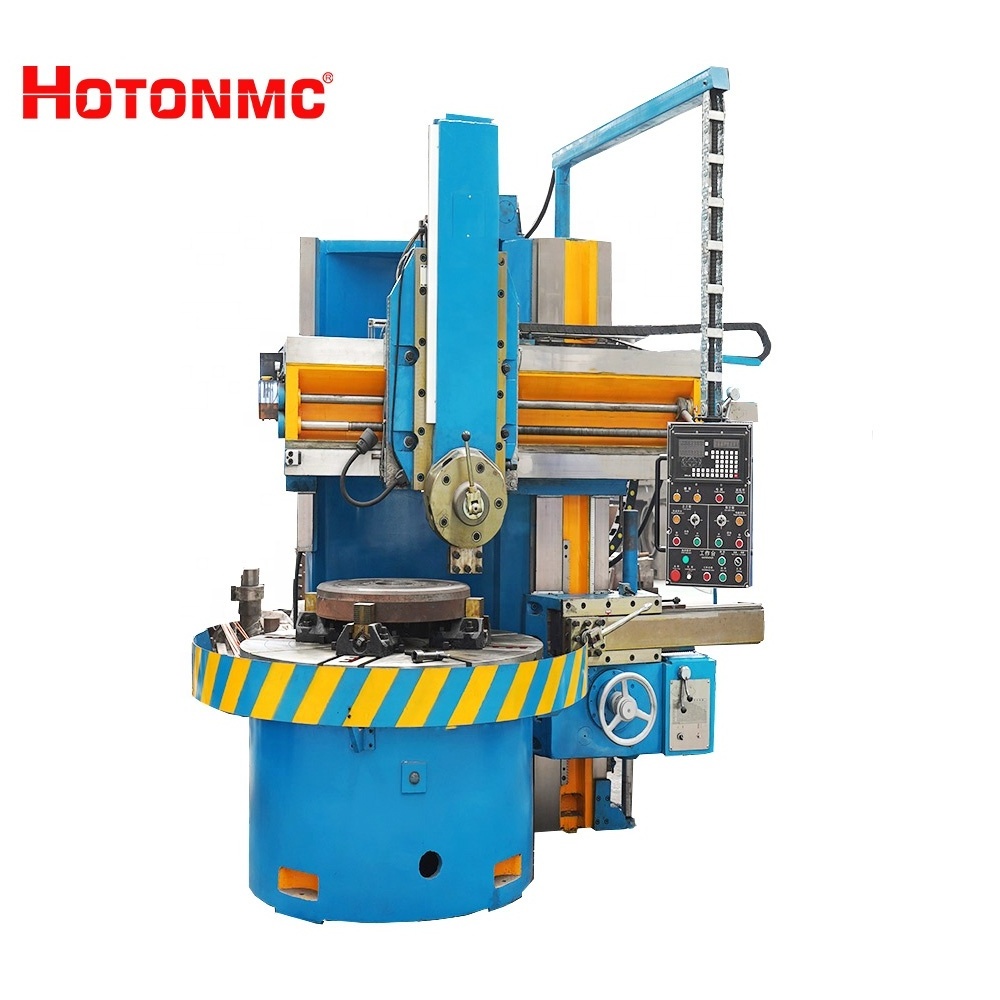

Metal Single Column Vertical Turning lathe machine
-
Automatic Grade:
-
Manual
-
After-sales Service Provided:
-
Overseas third-party support available
-
cnc or not:
-
not
-
Keyword:
-
Vertical lathe machine
-
power:
-
22KW
-
Max. Swing Diameter:
-
800mm
-
Weight:
-
12100KGS
-
Certification:
-
CE ISO
-
Power:
-
22KW
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
100
-
Range of Spindle Speed(r.p.m):
-
5 - 160 r.p.m
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
22
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hotonmc
-
Model Number:
-
C516 C518 C5112 C5116 C5118 C5123 C5125 C5131
-
Voltage:
-
220V 380V 415V
-
Dimension(L*W*H):
-
2.2x3.2x2.35m
-
Weight (KG):
-
12100 KG
-
Marketing Type:
-
New Product
-
Product Name:
-
Metal Single Column Vertical Turning lathe machine
-
Automatic Grade:
-
Manual
-
After-sales Service Provided:
-
Overseas third-party support available
-
cnc or not:
-
not
-
Keyword:
-
Vertical lathe machine
-
power:
-
22KW
-
Max. Swing Diameter:
-
800mm
-
Weight:
-
12100KGS
-
Certification:
-
CE ISO
-
Power:
-
22KW
VERTICAL LATHE FEATURES:
1. This machine is suitable for machining of all kinds of industries. It can process external column face, circular conical surface,head face, shotted, severance of car wheel lathe.
2. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing is good.
3. Gear case is to use 40 Cr gear of gear grinding. It has high precision and little noise. Both hydraulic part and electrical equipment are used famous-brand products in China.
4. Plastic coated guide ways are wearable.Centralized lubricating oil supplying is convenient.
5. Foundry technique of lathe is to use lost foam foundry (short for LFF) technique. Cast part has good quality.
|
MODEL
|
UNIT
|
C518
|
C5112
|
C5116
|
C5123
|
C5125
|
C5131
|
|
Max. turning diameter of vertical tool post
|
mm
|
800
|
1250
|
1600
|
2300
|
2500
|
3150
|
|
Max. turning diameter of side tool post
|
mm
|
750
|
1100
|
1400
|
2000
|
2200
|
3000
|
|
Working table diameter
|
mm
|
720
|
1000
|
1400
|
2000
|
2200
|
2500
|
|
Max. height of work-piece
|
mm
|
800
|
1000
|
1000
|
1250
|
1300
|
1400
|
|
Max. weight of work-piece
|
t
|
2
|
3.2
|
5
|
8
|
10
|
10
|
|
Working table range of rotation speed
|
r/min
|
10~315
|
6.3~200
|
5~160
|
3.2~100
|
2~62
|
2~62
|
|
Working table step of rotation speed
|
step
|
16
|
16
|
16
|
16
|
16
|
16
|
|
Max. torque
|
KN m
|
10
|
17.5
|
25
|
25
|
32
|
35
|
|
Horizontal travel of vertical tool post
|
mm
|
570
|
700
|
915
|
1210
|
1310
|
1600
|
|
Vertical travel of vertical tool post
|
mm
|
570
|
650
|
800
|
800
|
800
|
800
|
|
Power of main motor
|
KW
|
22
|
22
|
30
|
30
|
37
|
45
|
|
Weight of machine(approx.)
|
t
|
6.8
|
9.5
|
12.1
|
19.8
|
21.8
|
30
|
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
