- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
TMAX
-
Weight (KG):
-
35 KG
-
Applicable Industries:
-
Mixing and Grinding Equipment
-
Work Positions:
-
2-8
-
Rotate Speed:
-
50-410 rpm or 40-365 rpm
-
Structure:
-
Rubber roller
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Output (kg/h):
-
0.2 - 1 kg/h
-
Feeding Size (mm):
-
0 - 10 mm
-
Output Size (mesh):
-
0 - 0.1 mesh
-
Place of Origin:
-
China
-
Brand Name:
-
TMAX
-
Weight (KG):
-
35 KG
-
Applicable Industries:
-
Mixing and Grinding Equipment
-
Work Positions:
-
2-8
-
Rotate Speed:
-
50-410 rpm or 40-365 rpm
-
Structure:
-
Rubber roller
-
After-sales Service Provided:
-
Free spare parts

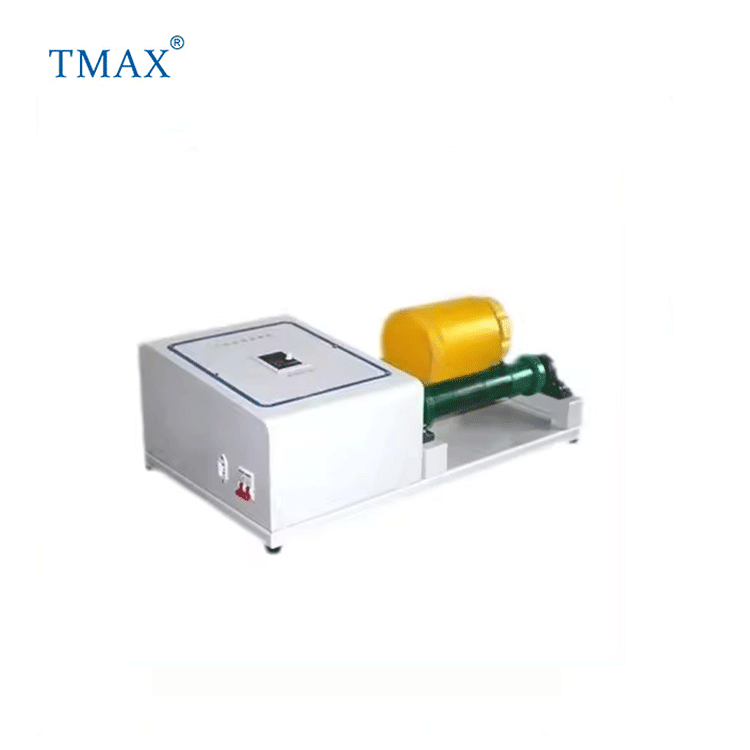

Lab Small Roller Ball Mill Device for Grinding
Introduction
The principle of laboratory roll ball mill is the same as that of tank mill. It is suitable for fine grinding, grinding, dispersing, mixing, material precipitation prevention and other process requirements of single tank material
The machine is compact, convenient to put the laboratory table and handling, is the scientific research, teaching, testing, production of preferred equipment.
Application
Laboratory roll ball mill is a laboratory, small batch production with ultra-fine grinding, mixing equipment.
This machine is beautiful and novel, compact structure, easy to operate, high efficiency, uniform grinding particle size, is the scientific research, teaching, test, production of preferred equipment.
Can be widely used in electronic materials, magnetic materials, ceramic glaze slurry, non-metallic ore, metal ore, new materials and other industries.
Characteristics
1. The equipment is compact in structure, compact in volume, convenient in handling and simple in operation;
2. High working efficiency, uniform grinding of fine granularity;
3. Can be compatible with different sizes of different materials of the ball grinding tank;
4. Easy and quick to take and change cans;
5. Timing, intermittent shutdown or continuous cycle operation;
Parameter
|
Pruduct Name |
LBM-5 |
LBM-15 |
|
800*420*380 |
900*440*400 |
|
|
Weight(kg) |
40kg |
55kg |
|
R o ating of m achine |
Y0.37-483 |
Y0.75-483 |
|
Inverter specifications |
0.4KW/single phase220V |
0.75KW/single phase220V |
|
Main roller speed(r/min) |
60-630 |
60-630 |
|
Maximum load per tank |
35KG |
80KG |
|
Adjustable spacing between rollers |
150 |
170 |
|
Station length |
260 |
340 |
