- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vjoycar
-
Model Number:
-
TK901
-
Keyword:
-
Realtime Tracking tkstar manual gps vehicle tracker
-
Product name:
-
Tkstar tk901 tkstar manual gps vehicle tracker
-
Application:
-
GSM GPS Tracker
-
Battery:
-
600mAh
-
Waterproof:
-
IP65
-
Map:
-
Google Online Maps
-
Color:
-
Black
-
Antenna:
-
Internal
Quick Details
-
Positioning Mode:
-
GPS
-
Function:
-
Geofence
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vjoycar
-
Model Number:
-
TK901
-
Keyword:
-
Realtime Tracking tkstar manual gps vehicle tracker
-
Product name:
-
Tkstar tk901 tkstar manual gps vehicle tracker
-
Application:
-
GSM GPS Tracker
-
Battery:
-
600mAh
-
Waterproof:
-
IP65
-
Map:
-
Google Online Maps
-
Color:
-
Black
-
Antenna:
-
Internal

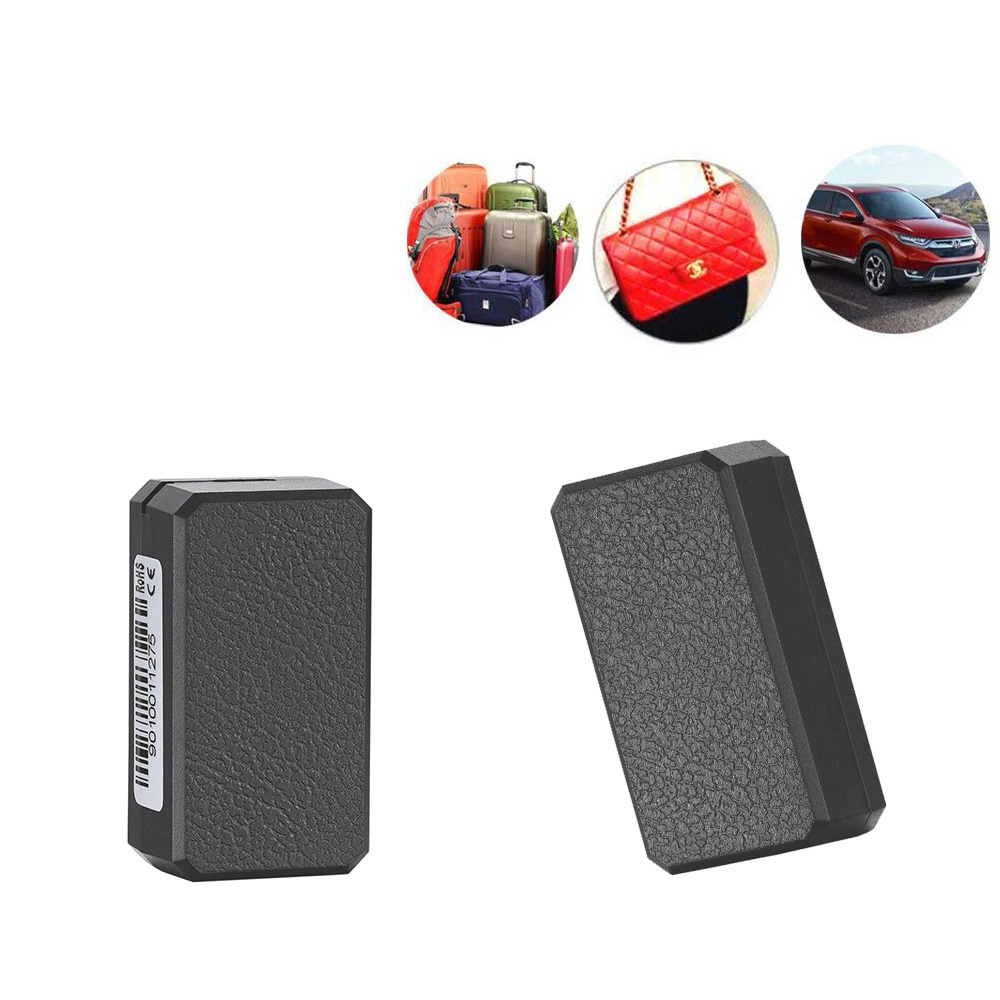

Mini GPS TKstar TK901 Personal Gps Tracker Mini GPS Tracking System with SMS Alarm
gps vehicle tracker/car gps tracker/gps tracker with app/gps asset tracker/accurate vehicle tracker manual gps tracker
Product Highlights:
1. GPS+LBS Dual Positioning Ways:
2. Realtime Tracking
3. History Route Playback:
4. Long Standby Time: It has built-in 600 mAh Li-ion battery,
5. Waterproof IP65:
7. Overspeed Alarm
8. Shock Alarm
9. Movement Alarm
10. Geo-fence: set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
11. Powerful Magnetic: with strong powerful magnet tape,can be very easily installed on vehicles; if take along with wallet and luggage, then can un-install the magnet..
12. Lifetime Free to Support PC Tracking platform and smartphone tracking Application.
tkstar gps tracker tk913 tkstar gps tracker tk913 tkstar gps tracker tk913 tkstar gps tracker tk913 tkstar gps tracker tk913
Tech Specification:
|
Content |
Specs. |
|
Dim. |
47mm x 24mm x 17mm(1.57”*0.94”*0.70”) |
|
Weight |
23g |
|
Network |
GSM/GPRS |
|
Band |
850/900/1800/1900Mhz |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
5m |
|
Time To First Fix |
Cold status 45s Warm status 35s Hot status 1s |
|
Charging input |
DC 5V--1.0A |
|
Battery |
Chargeable changeable 3.7V 600mAh Li-ion battery |
|
Stand by |
7days |
|
Storage Temp. |
-40°C to +85°C |
|
Operation Temp. |
-20°C to +55°C |
|
Humidity |
5%--95% non-condensing |
Package List:
1 * TK901 Main Unit
1 * USB Cabl
1 * User Manual
1 * Original Box (Optional)
(No Sim Card and SD Card included)
VJOYCAR OEM service wide application T630 coin size GPS location trackers with free tracking software
Preparation: A. Device Charged first
B. SIM card with SMS, Call & GPRS
C. Check your APN’s name
D. Place the device outdoors
Set up your device before using server or APP
Step 1-- Insert the SIM card
After inserting the SIM, dial the SIM’s number.
If get through with no answer, the device works.
Step 2-- Set APN
Send the following command by you phone:
eg: apn+123456+space+apn content
Step 3-- Set Mater Phone
admin123456 phone number(This phone number is your own mobile phone number , not the SIM card number in tracker .)
Reply:admin ok
E.g:admin123456 xxxxxxxxxx
A: As long as your country has regular 2G GSM network. If you use 3G SIM card or 4G SIM card, before testing,make sure it has 2G GSM service.
2) Q: Does your web platform/ APP have monthly or yearly subscription fees?
A: No, our web platform and APP are life-long free for our customers.
3) Q: Can I choose to use other platforms or my own servers?
A: Yes. We have long-term cooperation with many third-party platforms such as Wialon, Traccar and Gpsgate. Also, we could send our open communication protocols to you if necessary.
4) Q: How many devices can I have in one account on your platform or APP?
A: There is no limit to the number of devices used in one account. So, you can add as many devices as you like to your account.
5) Q: Do your GPS trackers have real-time tracking function?
A: Yes. After registeration, you can send command *routetrack*99* to the device and you could have real-time tracking.
6) Q: How do your gps trackers work?
A: We use sms to command the devices. The gps trackers would alert you by SMS/ Call in unusual cases. Also, you can monitor the devices on our free platform or APP.
7) Q: Should the devices work with SIM card?
A: Yes, you need to use a SIM card with SMS, Call and GPRS functions.
8) Q: Hong long can the battery last?
A: In normal use, 3-5 years.
9) Q: Do you have warranty for your products?
A: Yes, we have 12-month warranty for all our products, except for unnatural damage. And we provide good after-sales service for many years.
1. Login by IMEI/ID (Only one tracker)
Select “ Log in by IMEI ” on the bottom of screen
Server: www.mytkstar.net
IMEI : on the back side of cover
Password: 123456
2 .Login by username
Note: If you have two tracking devices or more, you need to contact the seller customer service first to create an account for your devices. You can login by username when you get a username and password.
Select “ Log in by username ” on the bottom of screen
Server: www.mytkstar.net
username : contact the seller customer service to create it
Service:
1. Reply Time:
All inquiries will be answered within 24 hours.
2. Payment Terms:
We accept payment by Visa Card, Master card, Alipay, Qiwi Wallet, Western Union and Bank Transfer T/T.
3. Shipment Terms:
All orders can be shipped out within 1-3 working days normally. Once the order is shipped out, we will send an email to you include the track number and the package photos.
4. Customize and Sample:
OEM & ODM services are accepted if you place an order with enough quantity, and sample first is highly welcome.
5. Protocol Open:
With it, you could integrate with your own platform directly.
6. MOQ Limitation: No MOQ limit, 1 pc for sample checking is available.
7. Warranty:
7.1. All orders will be in good quality, package condition and will be strictly checked before shipment. We will try our best to avoid any unhappy problem from quality or package, therefore, please kindly let us know if you are not satisfied when receive the orders.
7.2. All orders enjoy 12months quality warranty since shipment. We offer free repair always whether it’s with or without warranty period, but buyers need to pay for the accessories cost and shipping cost.
7.3. Please kindly note that, because different display and/or computer monitor, the color will be a little aberration. Therefore, hope your understanding. If you are not happy with the orders, please feel free to let us know.
In the past years, we have been released out many unique products to the market and widely accepted by our customers. Current now, our main products are GPS tracker & GPS tracking software, car alarm & motorcycle alarm system, parking sensor and vehicle rear-view system. Our products are widely exported to the USA, UK, Germany, Poland, Denmark, Brazil, Chile, Russia, UAE, India, South Africa, Nigeria and so on. All of our products are with "Industry Standard" and have passed CE full testing(Health, Safety, EMC and Radio) and got the Certifications.
In our peak time, we ever had around 2000 workers. After 2008 economy crisis, our factory have shut off 8 production lines, and only 200 workers left now. However, our hardware engineer, software engineer, production manager, skilled workers...all are here still. Around 20 years working experience, we are open and professional on your project, from OEM to ODM. Wish we have chance to cooperate with you.
2014 · Share E-Bike in Chile.
The first GPS tracker that supports charging while driving, and can be used to charge phones.
2015 · 3G GPS Trackers for Trailers in Australia
Magnet GPS tracker with sleeping function & long battery life
2016 · Hidden GPS Tracker Rectifier for Motorcycle in Pakistan
Integrated GPS tracker with motorcycle original rectifier.
2017 · Truck Head Up Display in Thailand
We developed the first GPS Speedometer on the world in 2015, and offer custom service, OEM ODM are welcome always.
2018 · Low Cost LBS GSM Tracker for Logistic Company in USA
We developed the first GPS Speedometer on the world in 2015, and offer custom service, OEM ODM are welcome always.
