Quick Details
-
Model Number:
-
LB2822/LB2810.5/LB1913
-
Max. Current:
-
lth:20A
-
Mechanical Life:
-
200,000 times
-

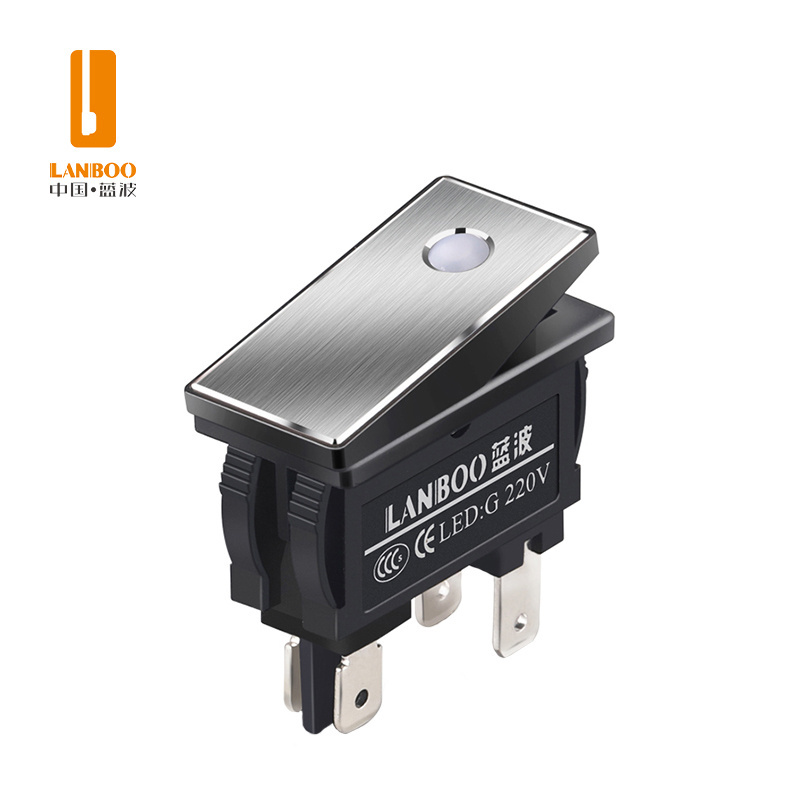

Products name:
-
LB2822/LB2810.5/LB1913
-
Product type:
-
Safety High Current Rocker Switch
-
Lamp color:
-
Gold/Silver/Black
-
Insulation Resistance:
-
≥1000MΩ
-
Contact Resistance:
-
≤50mΩ
-
Electric life:
-
50000 Cycles
-
Led color:
-
Red/Green/Blue
-
Voltage:
-
3V/6V/12V/24V/110V/220V/250V
-
Operation Type:
-
Locking
-
Application:
-
Automotive/High Power Electrical Appliances
-
Certification:
-
CE ROHS ISO9001
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB2822/LB2810.5/LB1913
-
Max. Current:
-
lth:20A
-
Mechanical Life:
-
200,000 times
-
Products name:
-
LB2822/LB2810.5/LB1913
-
Product type:
-
Safety High Current Rocker Switch
-
Lamp color:
-
Gold/Silver/Black
-
Insulation Resistance:
-
≥1000MΩ
-
Contact Resistance:
-
≤50mΩ
-
Electric life:
-
50000 Cycles
-
Led color:
-
Red/Green/Blue
-
Voltage:
-
3V/6V/12V/24V/110V/220V/250V
-
Operation Type:
-
Locking
-
Application:
-
Automotive/High Power Electrical Appliances
-
Certification:
-
CE ROHS ISO9001
| Mounting Aperture | 28*22mm / 28*10.5mm / 19*13mm |
| Serial Number | LB2822/2810.5/1913 High Current Rocker Switch |
| Head shape | Flat Head / High Head (custom) |
| Switch combination | Self-locking(2822/2810.5/1913) / Self-recovering(1913) |
| Action form |
2822/2810.5: 2NO-Normally Open Contact, Fast And Slow Moving Double Contact 1913: 2 NO-Normally Open Contact, Slow Acting Double Contact |
| Waterproof level | IP65, Anti-collision IK10 (refer to GB/T 20138) |
| Heating current |
2822-Ith: 20A, 250VAC 1913-Ith: 20A,9-24VAC 2810.5-Ith:16A,250VAC |
| Working environment | -40°C~+80°C (Non-vacuum State, Without Freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |
| LED voltage |
2822: 9-24V,220V / Customized: 3-8V,25-48V,110V 2810.5: 5-24V, 220V / Customized: 3-8V, 25-48V,110V 1913: 9-24V / Customized:3-8V |
| Rated curren |
2822: AC-15: 110V/250V:20A, DC-13: 12V/24V/36V:20A 2810.5: AC-15: 110V/250V:16A, DC-13: 12V/24V/36V:16A 1913: DC-13: 12V/24V:15A |
| Inductive load |
2822: AC-15: 110V/220V:4A, DC-13: 110V/4A 2810.5: AC-15: 110V/220V:4A, DC-13: 110V/4A 1913: / |
| Glowing shape | Boat/Square |
| Glow color | Red, Green, Blue / Customized: Yellow, White |
