Quick Details
-
Brand Name:
-
Xuanhua
-
Weight:
-
5010 kg
-
Dimension(L*W*H):
-
5200*2000*2550 mm
-
Product Name:
-
crawler pile machines suppliers
-
Name:
-
drop hammer piling machine suppliers
-
Borehole depth:
-
80 m
-
Walking speed:
-
3 km/h
-
Push trip:
-
3.2 m
-
Propulsion compensation:
-
1.2 m
-
Maximum torque:
-
3800/5500
-
speed rotation:
-
40-85 r/min
-
Usage:
-
guard rail piling machine
-
Keywords:
-
pile drilling rig machine
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Efficiency:
-
High Efficience
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xuanhua
-
Weight:
-
5010 kg
-
Dimension(L*W*H):
-
5200*2000*2550 mm
-
Product Name:
-
crawler pile machines suppliers
-
Name:
-
drop hammer piling machine suppliers
-
Borehole depth:
-
80 m
-
Walking speed:
-
3 km/h
-
Push trip:
-
3.2 m
-
Propulsion compensation:
-
1.2 m
-
Maximum torque:
-
3800/5500
-
speed rotation:
-
40-85 r/min
-
Usage:
-
guard rail piling machine
-
Keywords:
-
pile drilling rig machine
Product Description

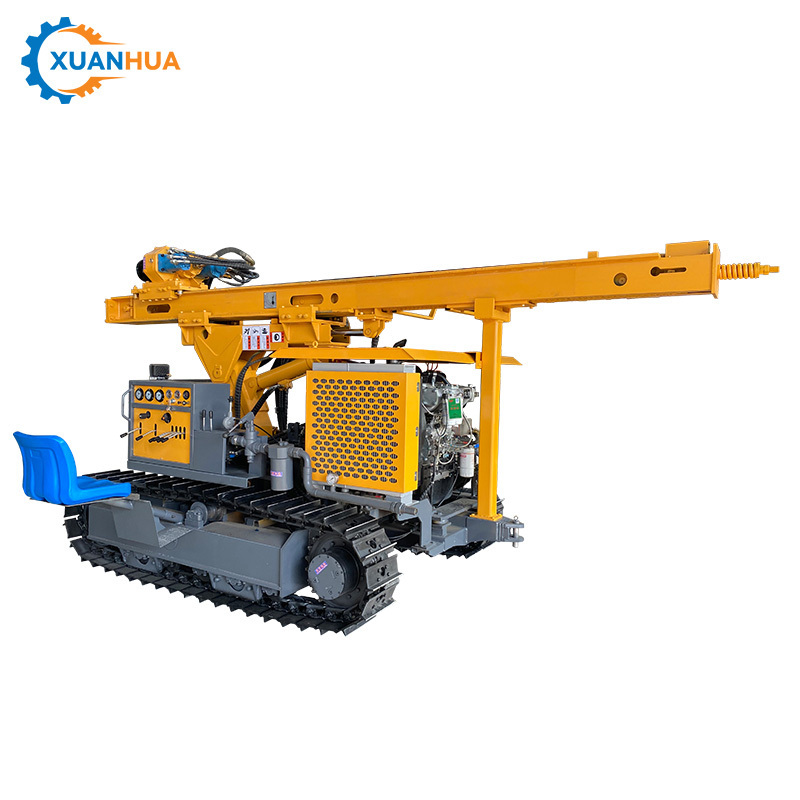

XH-150 drilling rig is a multi-functional drilling rig integrating photovoltaic piling, foundation piling, down-the-hole blasting, etc.The walking motor adopts the motor of new type of high-strength crawler chain excavator, which has the advantages of strong climbing ability and long service life.The drilling rig is equipped with a YUCHAI 75KW turbocharged diesel engine
Adopts new hydraulic technology with low gas consumption.The rotary gearbox adopts double motor and large torque gearbox, which is easy to move and compact in structure. At the same time, the propulsion sliding frame has the function of expansion compensation, the sliding frame supports the ground when drilling, and the drilling performance stability is good.The photovoltaic pile driving diameter can reach 150mm-400mm, and the blasting hole diameter is 60mm-150mm. Using rotation, large torque output motor, the drilling rig has the characteristics of flexible mobility, strong climbing ability, suitable for rugged field operation, convenient perforation shift, high perforation efficiency, simple maintenance and high reliability..It is the ideal multi-purpose drilling rig for photovoltaic piling, mining, highway, water conservancy, power station and other construction facilities.
Features
1.XH-150 drilling rig is a multi-functional drilling rig integrating photovoltaic piling, foundation piling, down-the-hole blasting, etc.
2.The walking motor adopts the motor of new type of high-strength crawler chain excavator, which has the advantages of strong climbing ability and long service life.
3.The drilling rig is equipped with a YUCHAI 75KW turbocharged diesel engine.Adopts new hydraulic technology with low gas consumption
4.The rotary gearbox adopts a dual-motor high-torque gearbox with a compact structure
Technical
Parameters
|
Model
|
Borehole depth
|
Propulsion compensation
|
Push trip
|
Walking speed
|
|
XH-150
|
80 m
|
1.2 m
|
3.2 m
|
3 km/h
|
|
Maximum torque
|
speed rotation
|
Chassis ground distance
|
Total weight
|
Overall dimensions
|
|
3800/5500 N.m
|
40-85 r/min
|
33 cm
|
5.01 T
|
5..2*2.0*2.55 m
|
Product Show
