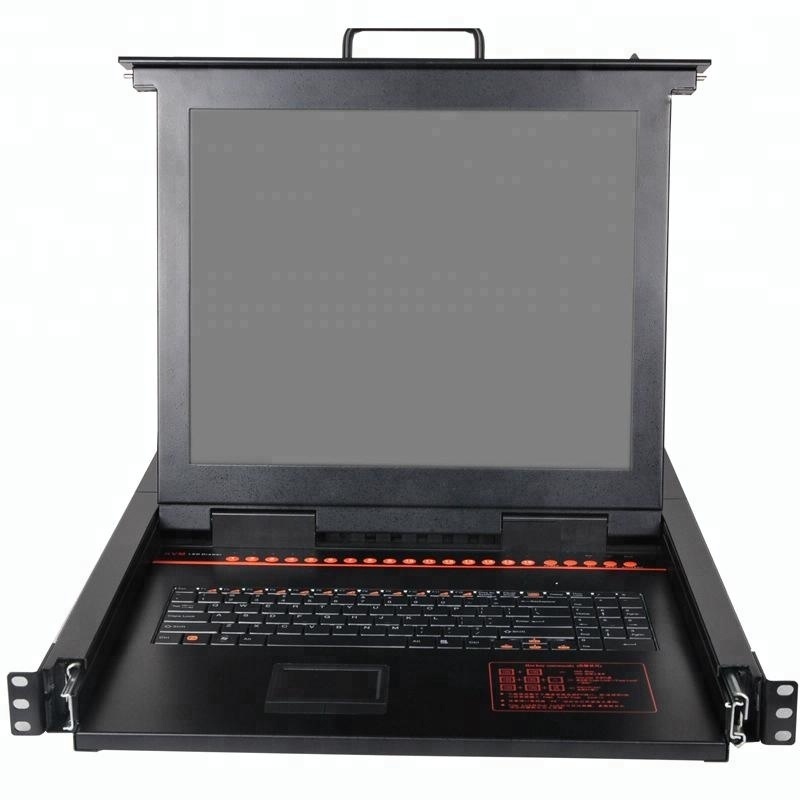

1-16 Port CAT5 KVM Switch with 15" LCD

Specifications:

1-16 Port CAT5 KVM Switch with 15" LCD

·15"TFT Rackmount Monitor LCD KVM
·Dual interface PS/2,USB control computer
·Support DDC2B
·Password security protection
·Withdrawing installation design
Service industry
Product  Details
·LCD display/Touchpad mouse/104 Keyboard with Digital Zone/E-Switch.
·Excellent video effects, the best resolution is up to1024*768 60Hz.
·Support DDC2B.can detect the screen model without switching the computer.
·Dual interface PS / 2 , USB keyboard and mouse are connected to control computer.
·Withdrawing installation design, the length can be adjusted to fit the rack space.
·Humanized design,can be installed and removed by only one person.which improves the efficiency of the administrator.
·To switch the host computer though the hotkey or OSD menu, it can manage up to 512 computers.
·Password security protection, only authorized users can view and manage on-line computer.
·Support a variety of brand industrial computer and the server
·support various operating systems: Microsoft, Linux, Unix, etc.
Specifications:
Model:	ITD15KMT101          ITD15KMT104           ITD15KMT108            ITD15KMT116
Computer Connections:	Direct 1, Max:4  Direct 4, Max:128  Direct 8, Max: 256   Direct 16, Max: 512
Cable port:	D-SUB15 (LCD, PS11/USB keyboard, mouse),OSD switch Support
Switch mode:	Hotkey, OSD menu
Switch Scan Time:	1-255 second (OSD adjustable)
LCD Display:	15"  TFT LCD Resolution: 1024*768 Brightness:250nits Contrast: 500:1
Keyboard/Mouse:	104 Mechanical mute Keyboard Touchpad
Input:	AC100-240V 47-63Hz, 30W
Cabinet Material:	Cabinet Material:
Color :	Insulated black paint (other colors optional)
Dimension ( L x W x H ):	533.6mmx480mmx44mm
Weight:	19.7-24.2Kg
For cabinet:	800-1040mm
Storage temperature:	-30℃~70℃
work temperature:	-10℃~60℃
Humidity:	0%-80%RH
Certificate:	CCC, FCC, CE
Ordering information:
1:ITD15KMT101	15"TFT LCD/Keyboard/Touchpad/100~240V AC Power
2:ITD15KMT104	15"TFT LCD/Keyboard/Touchpad/100~240V AC Power/4 Ports Switch
3:ITD15KMT108	15"TFT LCD/Keyboard/Touchpad/100~240V AC Power/8 Ports Switch
4:ITD15KMT116	15"TFT LCD/Keyboard/Touchpad/100~240V AC Power/16 Ports Switch

Product Display:

Description:

ITD industrial monitor LCD displays are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design. ITD industrial display monitors provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. ITD industrial IP65/ NEMA 4 touch display monitors are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. ITD full-range selection is provided in screen sizes from 5” to 82”.

Customized and flexible mechanical design:

Application:
