Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
- Product Details
- {{item.text}}
Quick Details
-
Wire diameter:
-
0.8-3.0mm
-
Max.spring diameter:
-
35mm
-
wire length:
-
0.01-9999.99
-
speed:
-
260pcs/min
-
cam setting value:
-
±0.10~±359.90
-
Cam rotation speed:
-
1-100rpm
-
Power AC:
-
220V±10%V50HZ
-
Weight:
-
800kg
-
Item:
-
0.8-3.0mm cnc wire spring bending machine
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOBO
-
Color:
-
Customized
-
Wire diameter:
-
0.8-3.0mm
-
Max.spring diameter:
-
35mm
-
wire length:
-
0.01-9999.99
-
speed:
-
260pcs/min
-
cam setting value:
-
±0.10~±359.90
-
Cam rotation speed:
-
1-100rpm
-
Power AC:
-
220V±10%V50HZ
-
Weight:
-
800kg
-
Item:
-
0.8-3.0mm cnc wire spring bending machine
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Product Description

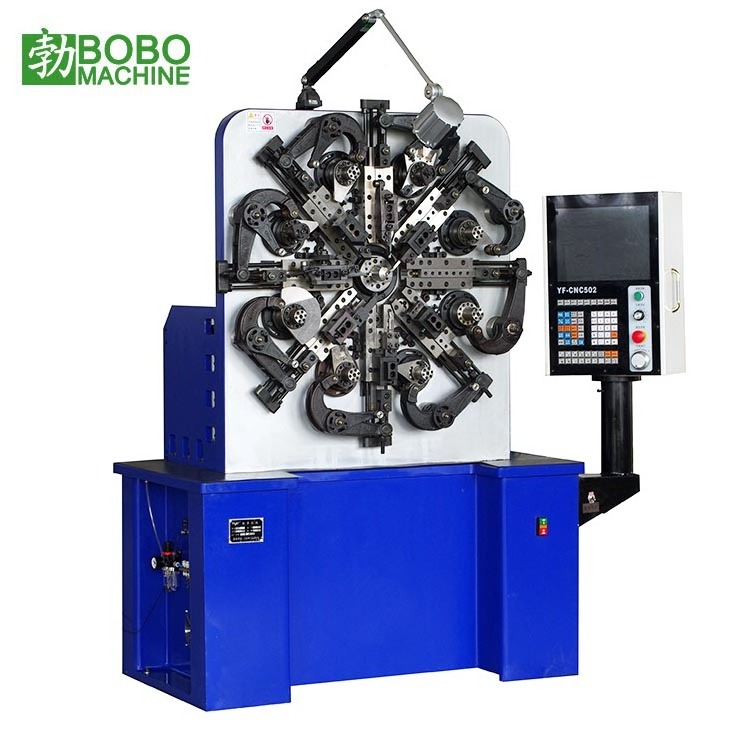

0.8-3.0mm cnc wire spring bending machine
0.8-3.0mm cnc wire spring bending machine can be used to produce every kinds of straight spring, tower spring, pullback spring, double twist spring, tension spring, rectangle spring, clockwork spring, fancy spring, deformed spring, and various kinds of wire forming etc.
Features of 0.8-3.0mm cnc wire spring bending machine
Use Taiwan imported computer control system and import servo motors;
English interface, simple operate, accurate positioning, computer can control 3 to 8 servo motor, all motor can run synchronous or alone;
Set with a precision testing tracking system, will stop automatically if there is any unqualified products;
According to the working condition on the screen, can modify products’ outer diameter or angle etc at any time;
Mechanical design of automatic lubricating oil supply, ensure the equipment running for a long time;
Has the design with automatic stop when wireless, disconnection, tangled lines, also has the function of line automatic acceleration, make the production easier and effective.
Specification
|
|
Item
|
BO-230
|
|
1
|
Wire size
|
Φ0.8- Φ3.0mm
|
|
2
|
Feeding length
|
MaxΦ60mm
|
|
3
|
Outside diameter
|
±0.01~±9999.99
|
|
4
|
Wire feed speed
|
260PCS/MIN
|
|
5
|
Cam setting value
|
±0.10º~±359.90º
|
|
6
|
Cam rotation speed
|
1~100RPM
|
|
7
|
Motor wire feed
|
3.8kw
|
|
8
|
Motor cam
|
3.8kw
|
|
9
|
Power AC
|
380V±10%V50HZ
|
|
10
|
Dimensions
|
960x800x1400mm
|
|
11
|
Weight
|
800KG
|
Packing and Shipping
Packaging:
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
