Quick Details
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
KG
-
Application:
-
Brewpub Beer Brewery Restaurant
-
Material:
-
SUS304/SUS316/red Copper
-
Capacity:
-
300L
-
Heating way:
-
Steam Electric Heating Beer Brewing Equipment
-
Usage:
-
DIY Beer
-
Application Industrie:
-
Beer
-
Heat Insulation:
-
Polyurethane-thickness:80mm
-
Inner jacket thickness:
-
3mm
-
Outer jacket thickess:
-
2mm
-
Product Name:
-
300L Beer Brewing Equipment
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Voltage:
-
Customized
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
KG
-
Application:
-
Brewpub Beer Brewery Restaurant
-
Material:
-
SUS304/SUS316/red Copper
-
Capacity:
-
300L
-
Heating way:
-
Steam Electric Heating Beer Brewing Equipment
-
Usage:
-
DIY Beer
-
Application Industrie:
-
Beer
-
Heat Insulation:
-
Polyurethane-thickness:80mm
-
Inner jacket thickness:
-
3mm
-
Outer jacket thickess:
-
2mm
-
Product Name:
-
300L Beer Brewing Equipment

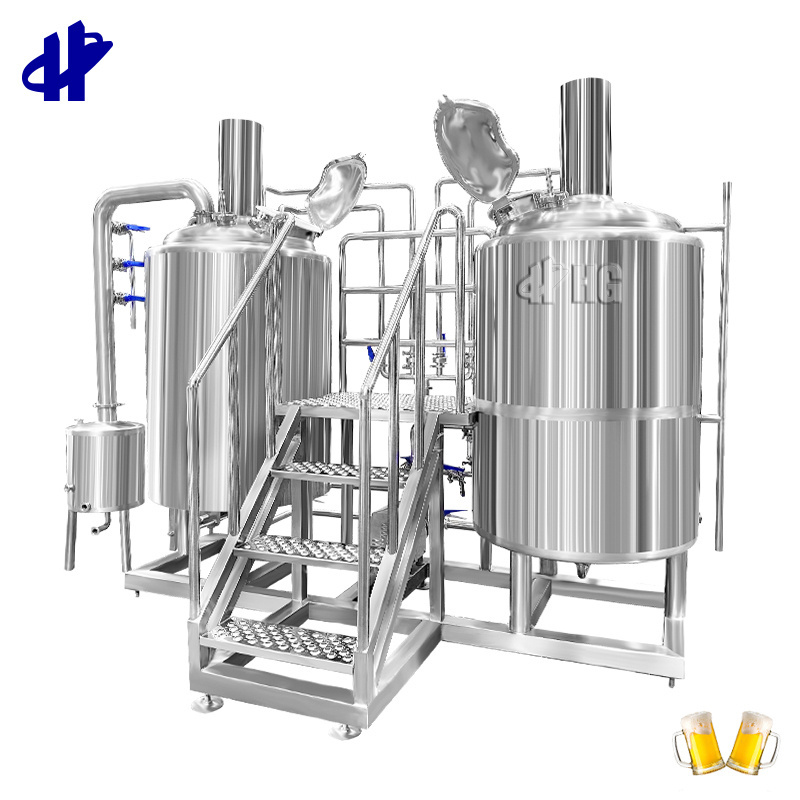

Micro Brewery System Craft Equipment 300l Brewing Beer 300 Liter Brewery beer machine
|
Architecture
|
Main Components
|
Brewing process
|
|
1.Milling System
|
01.Malt Mill
|
Malt crushing in mille
|
|
2.Heating Method
|
01.Steam Boiler (Optional)
02.Burner (Optional) 03.Electric Heating (Optional) |
For heating saccharification system
|
|
3.Saccharification System
|
01.Mash Tun / Lauter Tank& Brew Kettle/ Whirlpool Tank (2 Vessels)
02.Mash Tun & Lauter Tank & Brew Kettle / Whirlpool Tank (3 Vessels) 03.Mash Tun / Lauter Tank & Brew Kettle & Whirlpool Tank (3 Vessels) 04.Mash Tun & Lauter Tank & Brew Kettle & Whirlpool Tank (4 Vessels) |
Extraction of sugar from malt for subsequent fermentation
|
|
4.Fermentation System
|
01.Fermentation Tank
02.Bright Tank |
Use for cool wort fermentation or maturation
|
|
5.Cooling System
|
01.Glycol Tank
02.Glycol Unit |
Use for glycol water chilling and keep cooling wort in the late of fermentation period
|
|
6.CIP System
|
01.Disinfection Tank
02.Alkali Tank |
Use for cleaning tanks
|
|
7.Control System
|
01.PID
02.PLC (Siemens) |
Plays a controlling role in the brewing process
|
|
Item
|
Production capacity
|
Volume in US Gallon
|
Heating area
|
Tank diameter
|
Height
|
|
HG-100
|
100L/day
|
26US Gallon
|
0.25㎡
|
650mm
|
2000mm
|
|
HG-200
|
200L/day
|
53US Gallon
|
0.25㎡
|
850mm
|
2200mm
|
|
HG-300
|
300L/day
|
79US Gallon
|
0.3㎡
|
950mm
|
2500mm
|
|
HG-500
|
500L/day
|
132US Gallon
|
0.5㎡
|
1160mm
|
2800mm
|
|
HG-1000
|
1000L/day
|
264US Gallon
|
1.0 ㎡
|
1360mm
|
3000mm
|
|
HG-2000
|
2000L/day
|
528US Gallon
|
2.0㎡
|
1760mm
|
3150mm
|
|
HG-3000
|
3000L/day
|
792US Gallon
|
3.0㎡
|
1860mm
|
3800mm
|
|
HG-5000
|
5000L/day
|
1320US Gallon
|
5.0㎡
|
2260mm
|
4400mm
|
1.High cost performance
2.Good abrasion resistance materialcopper beer equipment
3.We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4.Polishing accuracy up to Ra0.4μ m
5. Strict tank pressure test
6. Energy conservation and pollution emissions
7.It can be customized according to the process and requirements of customers
2.Good abrasion resistance materialcopper beer equipment
3.We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4.Polishing accuracy up to Ra0.4μ m
5. Strict tank pressure test
6. Energy conservation and pollution emissions
7.It can be customized according to the process and requirements of customers
|
No.
|
Item
|
Specification
|
|
01
|
Gross capaity
|
375L
|
|
02
|
Useful capacity
|
300L
|
|
03
|
Thickness
|
Inner (SUS304)thickness: 3.0mm;
External-Jacket(SUS304) thickness: 2.0mm |
|
04
|
Material
|
Stainless steel 304
|
|
05
|
Cooling way
|
Dimple jacket plate
|
|
06
|
Cleaning way
|
CIP in situ cleaning, with rotary spray cleaning ball
|
|
07
|
Insulation
|
Polyurethane-thickness: 100mm
|
|
08
|
Accessories
|
Sample valve, Pressure gauge, Breath valve, Temperature gauge,
Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on. |
|
Item
|
Production capacity
|
Volume in US Gallon
|
Heating area
|
Tank diameter
|
Height
|
|
HG-100
|
100L/day
|
26US Gallon
|
0.5㎡
|
650mm
|
1500mm
|
|
HG-200
|
200L/day
|
53US Gallon
|
0.8㎡
|
850mm
|
1600mm
|
|
HG-300
|
300L/day
|
79US Gallon
|
1.2㎡
|
960mm
|
1700mm
|
|
HG-500
|
500L/day
|
132US Gallon
|
1.8㎡
|
1160mm
|
2300mm
|
|
HG-1000
|
1000L/day
|
264US Gallon
|
2.6㎡
|
1360mm
|
2500mm
|
|
HG-2000
|
2000L/day
|
528US Gallon
|
3.6㎡
|
1560mm
|
2850mm
|
|
HG-3000
|
3000L/day
|
792US Gallon
|
4.5㎡
|
1760mm
|
3800mm
|
|
HG-5000
|
5000L/day
|
1320US Gallon
|
7.2㎡
|
1960mm
|
4400mm
|
FAQ
Q:How many years of experience in brewing equipment do you have?
A: We have more than 20 years in brewing and beer filling equipment.
Q: Where is your factory located?
A: Our factory is located in New Town, Jiyang Zone, Jinan, Shandong, China, 2 hours high speed train to Beijing.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
Q: How about the installation?
A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair,
as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
Our service
1.Pre-Service:
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height),
we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
.
2.After-Service:
-We guarantee the quality of the electrical elements within one year and tanks body within 1 years.
If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
-After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do our best to support.
-We can also dispatch our engineer to your brewery to install and adjust the machines for you.
He can also train your staff to use the equipment.
