Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1060*535*2.5mm
-
Panel Efficiency:
-
100W
-
Brand:
-
OEM
-
Power:
-
100W
-
Lamination Material:
-
ETFE
-
Voltage supported:
-
17.6V or 35.2v
-
Solar cell:
-
sunpower
-
Size:
-
1060*535*2.5mm
-
Solar panel shape:
-
Customized Solar Panel
-
Type:
-
Flexible
-
Warranty:
-
5 YEARS
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Brand Name:
-
OEM
-
Model Number:
-
Flexible solar panel 100w
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1060*535*2.5mm
-
Panel Efficiency:
-
100W
-
Brand:
-
OEM
-
Power:
-
100W
-
Lamination Material:
-
ETFE
-
Voltage supported:
-
17.6V or 35.2v
-
Solar cell:
-
sunpower
-
Size:
-
1060*535*2.5mm
-
Solar panel shape:
-
Customized Solar Panel
-
Type:
-
Flexible
-
Warranty:
-
5 YEARS
-
Certificate:
-
CE

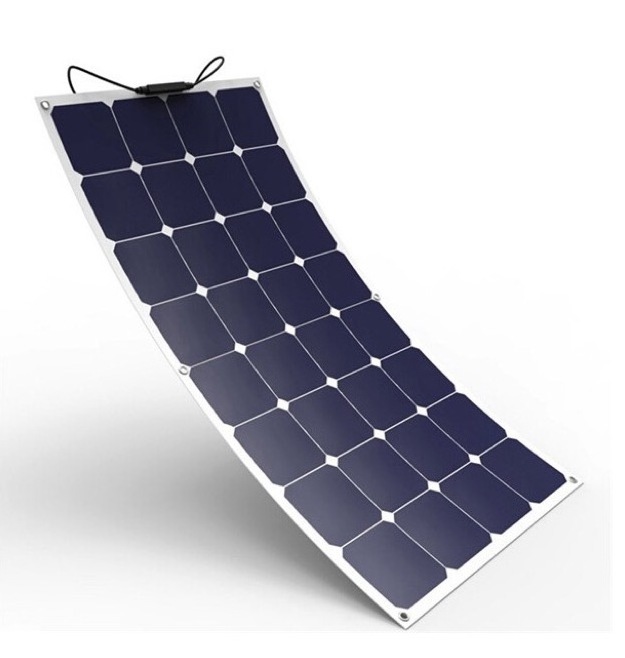

Solar Panel 100w 12v Custom Design Amorphous Silicon Adhesive Thin Film Flexible Solar Panel 100W Bendable Solar Panel 12V
|
Model
|
MOL-F100W
|
MOL-F120W
|
MOL-F150W
|
MOL-F200W
|
|
Peak power at STC (Pmax/W)
|
100
|
120
|
150
|
200
|
|
Maximum power voltage (Vmp/V)
|
18
|
19.8
|
22.5
|
18.5
|
|
Maximum power current (Imp/A)
|
5.55
|
6.0
|
8.33
|
8.38
|
|
Open circuit voltage (Voc/V)
|
20
|
21.6
|
18
|
22.7
|
|
Short circuit current (Isc/A)
|
6.1
|
6.5
|
8.56
|
9.05
|
|
Number of cells (PCS)
|
32 (4*8)
|
36 (4*9)
|
48 (4*12)
|
60 (6*10)
|
|
Dimension (mm)
|
1050*540*2.5
|
1180*540*2.5
|
1550*540*3
|
2050*540*3
|
|
Weight (KG)
|
1.7
|
2.2
|
3.15
|
|
|
Connectors
|
MC4 compatible
|
|||
|
Junction box
|
IP67 Rated
|
|||
|
Output cable
|
4mm², 900mm length
|
|||
|
Power tolerance
|
±3%
|
|||
|
Maximum system voltage
|
1000VDC
|
|||
|
Standard test condition (STC)
|
1000W/m², 1.5 AM spectrum, 25 ℃ cell temperature
|
|||
Key Features:
Extremely Flexible
- With a flex range of up to 248 degrees, this panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount.
Ultra Lightweight
- Thanks to advanced polymer materials, the weight of this product is 70% less than conventional solar panels, making transportation and installation a breeze.
Super Thin Lamination
- Discreet and thin, the 100W Lightweight Panel is only a tenth of an inch thick. Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup
Highly Durable
- Rigorously tested, the 100W panel is designed to withstand extreme wind of up to 2400Pa and snow loads of up to 5400Pa
