Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Four Star
-
Model Number:
-
BNC-JW3B/N-C-J3D-300
-
Impedance:
-
50 Ohm
-
Frequency Range:
-
DC-3GHz
-
Durability:
-
Mating cycles ≥500
-
Temperature Range:
-
-40℃~+85℃
-
RoHS:
-
Compliant
-
VSWR:
-
≤1.30@DC-3GHz
-
Dielectric Withstanding Voltage:
-
≥1500V RMS,50Hz,at sea level
-
Working Voltage:
-
≤500V RMS,50Hz,at sea level
-
Interface:
-
IEC 60169-16/IEC 60169-8
-
Insertion Loss:
-
≤0.55dB@2GHz
Quick Details
-
Type:
-
Jumper
-
Application:
-
RF
-
Gender:
-
Male/Male
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Four Star
-
Model Number:
-
BNC-JW3B/N-C-J3D-300
-
Impedance:
-
50 Ohm
-
Frequency Range:
-
DC-3GHz
-
Durability:
-
Mating cycles ≥500
-
Temperature Range:
-
-40℃~+85℃
-
RoHS:
-
Compliant
-
VSWR:
-
≤1.30@DC-3GHz
-
Dielectric Withstanding Voltage:
-
≥1500V RMS,50Hz,at sea level
-
Working Voltage:
-
≤500V RMS,50Hz,at sea level
-
Interface:
-
IEC 60169-16/IEC 60169-8
-
Insertion Loss:
-
≤0.55dB@2GHz
Product Description

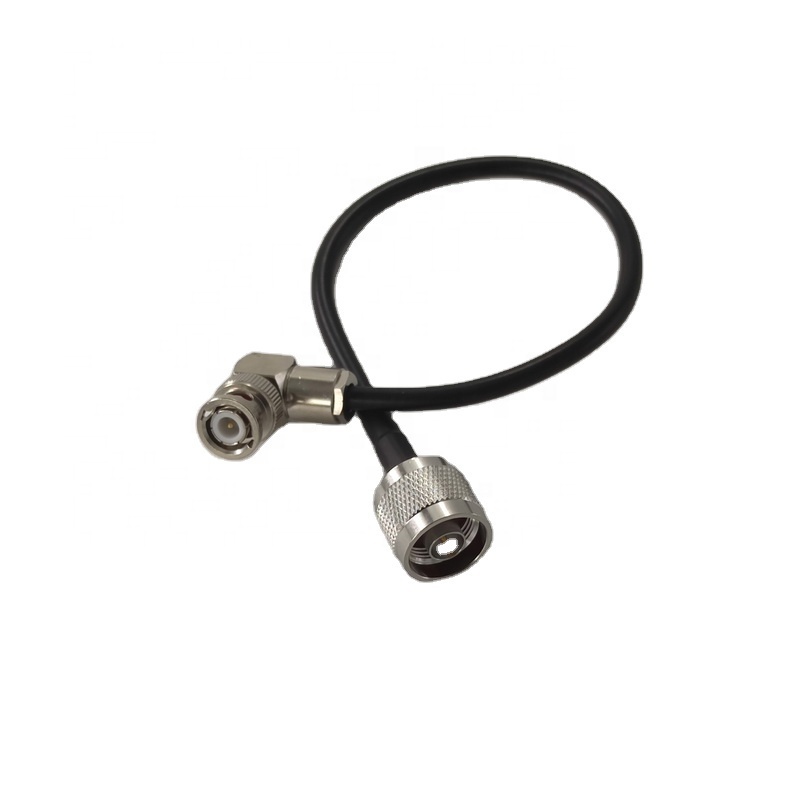

RG58 Cable Jumper(Assembly) With BNC Male Right Angle Clamp Connector to N Male Crimp Connector
Specification
|
Model No.
|
BNC-JW3B/N-C-J3D-300
|
|
|
|
Interface
|
IEC 60169-16/IEC 60169-8
|
|
|
|
Electrical
|
|
|
|
|
Characteristic Impedance
|
50ohm
|
|
|
|
Typical Frequency Range
|
DC-3GHz
|
|
|
|
VSWR
|
≤1.30@DC-3GHz;
|
|
|
|
Insertion Loss
|
≤0.55dB@2GHz
|
|
|
|
Dielectric Withstanding Voltage
|
≥1500V r.ms.at sea level
|
|
|
|
Working Vlotage
|
≤500V RMS,50Hz,at sea level
|
|
|
|
Dielectric Resistance
|
≥5000MΩ
|
|
|
|
Mechanical
|
|
|
|
|
Durability
|
Mating cycles ≥500
|
|
|
|
Material and Plating
|
|
|
|
|
Parts Name
|
Material
|
Plating
|
|
|
Body
|
Brass
|
Ni
|
|
|
Insulator
|
PTFE
|
—
|
|
|
Center conductor
|
Phosphor bronze
|
Au
|
|
|
Coupling Nut
|
Brass
|
Ni
|
|
|
Back nut
|
Brass
|
Ni
|
|
|
Washer
|
Brass
|
Au
|
|
|
Braid clamp
|
Brass
|
Ag
|
|
|
Ferrule
|
Annealed copper
|
Ni
|
|
|
Shrink tube
|
EVA
|
—
|
|
|
Environmental
|
|
|
|
|
Operating Temperature Range
|
-40℃~+85℃
|
|
|
|
RoHS
|
Compliant
|
|
|
|
Protection Rate
|
IP66
|
|
|
|
Cable Family
|
RG58 Coaxial Cable (See below)
|
|
|
