Quick Details
-
Name:
-
HVAC duct sheet beading machine / duct sheet metal forming machine
-
Model:
-
G1.2X1300
-
Thickness:
-
1.2mm
-
Width:
-
1300mm
-
Function:
-
Five thread grooving
-
Power:
-
1.5W
-
Motor:
-
380V/220V/or other
-
Weight:
-
460kgs
-
Color:
-
Customer's Requirement
-
Speed:
-
Fast
Quick Details
-
Place of Origin:
-
China
-
Machine Type:
-
Cut to Length Line
-
After-sales Service Provided:
-
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Name:
-
HVAC duct sheet beading machine / duct sheet metal forming machine
-
Model:
-
G1.2X1300
-
Thickness:
-
1.2mm
-
Width:
-
1300mm
-
Function:
-
Five thread grooving
-
Power:
-
1.5W
-
Motor:
-
380V/220V/or other
-
Weight:
-
460kgs
-
Color:
-
Customer's Requirement
-
Speed:
-
Fast

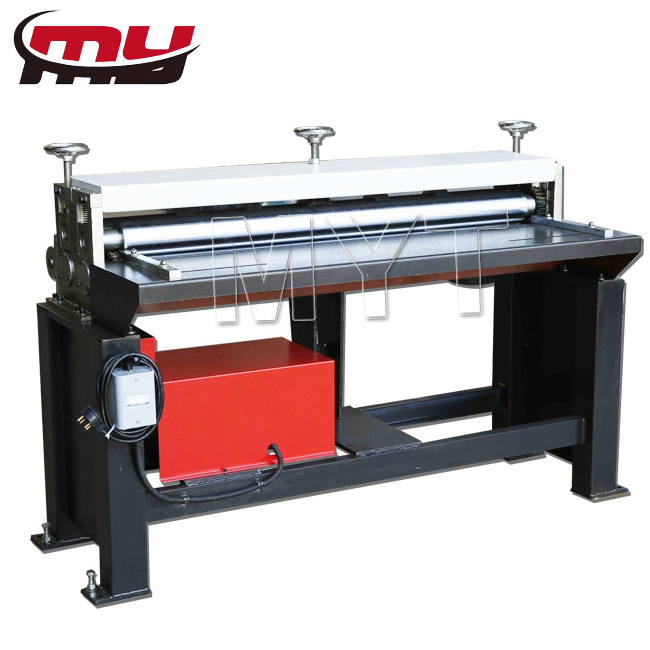

MYT brand HVAC duct sheet beading machine / duct sheet metal forming machine
Hvac HVAC duct sheet beading machine / duct sheet metal forming machine
1. This kind bending grooving machine/five lines grooving machine is the most widely-used and traditional machinery applied in the manufacture of making wind-tubes/air duct,processing plate sheet,etc.
2. The bending grooving machine/five lines grooving machine can make the plate more stronger and greatly ensure the precision and accuracy during the working process.
3. This type bending grooving machine/five lines grooving machine have simple and strong structure,anybody can operate it easily. With the reasonable weight, the convenience in movement and the adaption to different working environment. All rollers and bearings adopt excellent steel processed by advanced heat treatment technology(quenching),which enhances wear-resistance for the machine.
4. Bending grooving machine/five lines grooving machine combine with our Lock forming machine,TDF flange forming machine,TDF folding machine and Shearing machine can be an simple air duct production line.
2.Parameters of five lines grooving machine:
|
Model |
Plate thickness(mm) |
Plate width(mm) |
Power(KW) |
Weight(kg) |
Dimension(L*W*H)mm |
|
G1.2*1300 |
0.5-1.2 |
1300 |
1.5 |
400 |
1550*1050*1170 |
|
G1.2*2000 |
0.5-1.2 |
2000 |
1.5 |
600 |
2350*1050*1300 |
|
G1.5*1500 |
0.5-1.5 |
1500 |
2.2 |
500 |
1800*1000*1250 |
