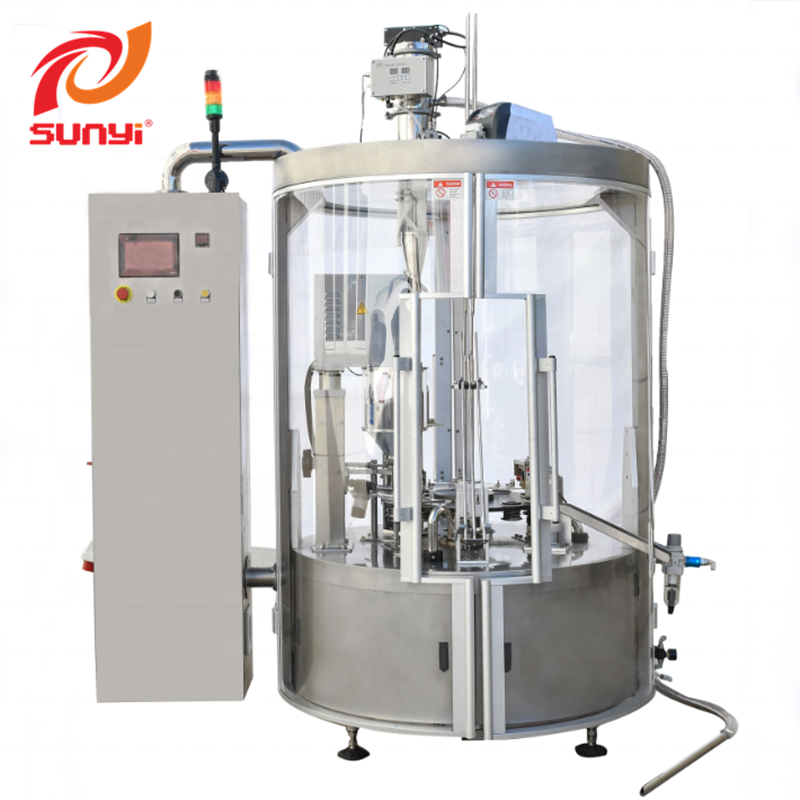

skp-1n nespresso coffee capsule filling sealing machine rotary maker coffee capsule filler

skp-1n nespresso coffee capsule filling sealing machine rotary maker coffee capsule filler

FOB Reference Price: Get Latest Price

≥1 Pieces

US $25000

≥2 Pieces

US $22000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ±0.15g

Driven Type:: Pneumatic-electric

Voltage:: AC 110V 220V 380V

Place of Origin:: Jiangsu, China

Brand Name:: sunyi

Dimension(L*W*H):: 1900 mm(L)X1118 mm(W)X2524 mm(H)

Weight:: 800 KG

Product name:: automatic granule filling and sealing machine

Function:: filling and sealing machine

Processing Types:: automatic granule filling and sealing production line

Capacity:: 14000BPH

Filling accuracy:: ±0.15g

MAX. speed:: 180-240 cup/min

Control system:: PLC(OMRON, SCHNEIDER, ROCKWELL)

After-sales Service Provided:: Field maintenance and repair service

Marketing Type:: New Product 2020

Quick Details

Machinery Capacity:: 8000BPH

Packaging Material:: Plastic, Paper, Metal, Glass, Wood

Filling Material:: Milk, Water, Oil, Juice, Powder

Filling Accuracy:: ±0.15g

Driven Type:: Pneumatic-electric

Voltage:: AC 110V 220V 380V

Place of Origin:: Jiangsu, China

Brand Name:: sunyi

Dimension(L*W*H):: 1900 mm(L)X1118 mm(W)X2524 mm(H)

Weight:: 800 KG

Product name:: automatic granule filling and sealing machine

Function:: filling and sealing machine

Processing Types:: automatic granule filling and sealing production line

Capacity:: 14000BPH

Filling accuracy:: ±0.15g

MAX. speed:: 180-240 cup/min

Control system:: PLC(OMRON, SCHNEIDER, ROCKWELL)

After-sales Service Provided:: Field maintenance and repair service

Marketing Type:: New Product 2020

Product Introduction

_{Automatic Customized Granule Filling and Sealing Rotary Machine}

Filling weight range: 0-20g

Filling accuracy: ±0.15g

Max speed: 50 cup/min

Hopper capacity: 110L

Control system: PLC(OMRON, SCHNEIDER, ROCKWELL)

Displayer: 7 inch touchscreen

Power supply: AC 110V, 220V, 380V 50-60Hz

Dimension: 3400x2380x2150mm

Products Description

High Performance and Technology

• The machine’s contact with food areas are all stainless steel;

• The high-quality pneumatic components make the air circuit of the machine run stably. The stable air pressure and the even air flow inside the machine can greatly improve the production capacity and guarantee the lifetime of the machine;

• Capsule sorter lifting and conveying system greatly save labor costs;

• UV sterilization system provides a good production environment for capsule production;

• The second strengthen heat sealing. It eliminates the risk of defective products entering the market, even if the first heat seal fails;

• The peristaltic pump drop filling device is ready for adding liquid flavors in the capsule;

• The online weighing device feeds the data back to the PLC in real time, identifies the defective products and automatically eliminates them;

• Roll film cutting and sealing system with high-precision fine tooth cylinder blade can realize online cutting and sealing at the same time. The sealing deviation is within 0.1mm. With the identification mark system, servo motor drives roll film expansion and dragging precisely;

• Automatically counts the output of the finished capsules;

• With nitrogen filling device, it creates a low-pressure environment makes the residual of Oxygen reduced to less than 2% in the capsule, so that the fresh coffee is sealed and wrapped by highly pure nitrogen;

• The remote control system solves the problem of international PLC and HMI inconsistency of the software installed on the PC side. Moreover, you can observe the condition of the parameter value of the machine in real time through the mobile app.
