Quick Details
-
Supplier Type:
-
Custom
-
Product name:
-
Active Balance Equalizer /BMS
-
Application:
-
Battery Pack
-
Battery type:
-
Li-ion LiFePO4 LTO Battery Pack
-
Balanced current:
-
0.5-1A , settable
-
Communication:
-
CAN,computer host,bluetooth,etc.
-
connect to free PC program:
-
UART , Modbus ,485 , CAN
-
connect to Free App:
-
Bluetooth
-
Compatible with other brands of BMS:
-
YES
-
Balance method:
-
energy transfer ( active balance)
-
Certificate:
-
CE ROHS
Quick Details
-
Model Number:
-
JHB-ZDJH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
100balance
-
Supplier Type:
-
Custom
-
Product name:
-
Active Balance Equalizer /BMS
-
Application:
-
Battery Pack
-
Battery type:
-
Li-ion LiFePO4 LTO Battery Pack
-
Balanced current:
-
0.5-1A , settable
-
Communication:
-
CAN,computer host,bluetooth,etc.
-
connect to free PC program:
-
UART , Modbus ,485 , CAN
-
connect to Free App:
-
Bluetooth
-
Compatible with other brands of BMS:
-
YES
-
Balance method:
-
energy transfer ( active balance)
-
Certificate:
-
CE ROHS
Product Description
Why do you need a Battery Balancing System
In fact,the individual cells in a battery pack are rarely an exact duplicate of all the cells in the battery pack.Because of the inconsistency between individual cells, there will be differences in performance between individual cells or single strings of cells, such as voltage differences.
In actual use, when a pack of batteries reaches a specified charge cutoff voltage then the charger will shut off. If one cell in a pack reaches that voltage before other cells reach a full charge it will cause the charger to shut off.As a result, the remaining cells in the battery pack cannot be fully charged.
Conversely when the weakest cell in a pack reaches its discharge cutoff voltage it will show as the discharge point and shut down the pack prematurely.thereby the user unable to balance the energy stored by other cells.
Our battery balancing system can help you solve it. If your battery pack already uses a BMS, you only need to connect our active balancing module as show below and it can work together with the original BMS.
In addition, you can also choose our intelligent active balancing BMS, which not only has the protection function of BMS, but also has active balancing function and other extended functions.
Need more info, please click " contact supplier" to talk with us,we will give you professional advice.
Our Advantages

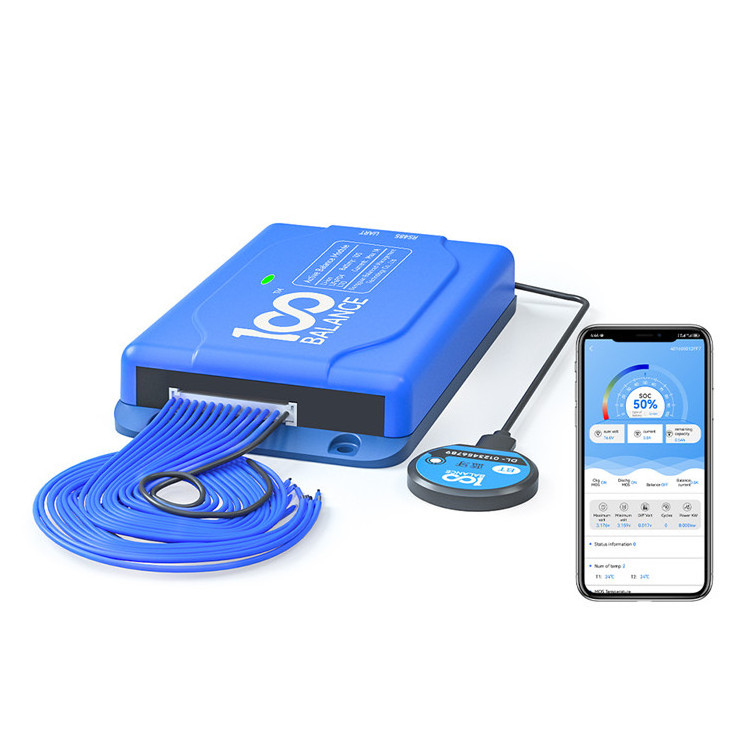

1A smart active balance module
Features
1. Adopt active balancing method of energy transfer, which is more energy-saving and efficient.
2. Efficiently balance the cell voltage difference,
Help to extend battery life.
;
3. Low energy consumption, less heat generation, high safety ;
4. 1A equalization current ,
more
efficient;
5. Accurately monitor the voltage difference, real-time monitoring the battery via APP or PC.
6. Bluetooth smart APP communication;
7. Free PC software communication, support UART/Modbus/485/CAN .
8.
Compatible with almost all brands of BMS on the market.
Specification
|
100balance active balancer
|
Basic parameter
|
|
Product name
|
Smart Active Balance module
|
|
Brand Name
|
100balance
|
|
Key words
|
Active Balance Equalizer
|
|
Application
|
Lithium Battery Pack
|
|
Balance method
|
Energy transfer ( active balancing )
|
|
Battery type
|
Li-ion , LiFePO4 , LTO Battery Pack
|
|
Battery pack strings
|
3 - 24S
|
|
Balanced current
|
0.5 - 1A , settable
|
|
Communication
|
CAN , computer host , bluetooth,etc.
|
|
Connect to free PC program
|
UART , Modbus ,485 , CAN
|
|
Connect to Free App
|
Bluetooth
|
|
Compatible with other brands of BMS
|
YES
|
|
Certificate
|
CE ROHS
|
|
100Balance Active Balance Equalizer
|
Working parameter
|
|
Battery pack type
|
Ternary lithium (NCM) ,
Lithium iron phosphate ( LFP ) ,
Lithium titanate ( LTO )
|
|
Balance on condition
|
Minimum voltage of single unit ≥ 3.2V ,
Equalizing differential pressure ≥ 50mV
( This is Factory default value, it can be set
via APP or PC host )
|
|
Balance closing condition
|
Minimum voltage of single unit < 3.2V ,
Equalizing differential pressure < 50mV
( This is Factory default value, it can be set via APP or PC host ) |
|
Working power consumption
|
< 1mA
|
|
Sleep current
|
< 600uA
|
|
working temperature
|
-20℃ ~ 60 ℃
|
|
communication mode
|
UART , Bluetooth , RS485
|
Tips:
For bulk orders, some parameters can be customized, please consult us for details, please click " Contact Supplier" .
Application
The main application areas include but not limited to: E-bike / Electric two-wheelers , electric tricycle , low speed quad, cleaning car, forklift, scooter, tourist car, golf cart, RV energy storage, home energy storage, outdoor energy storage, AGV, energy storage cabinet, lease battery swapping, electric wheelchairs, Lead-Acid upgrade to Lithium, Electric bicycles, power bank,etc..
Installation Instructions
Before connecting the balancing module to your battery, please read the product manual carefully and remember the following steps.
Sequence of battery connection for active balance module:
1.Please Remember!! Do not insert active balance module when welding sampling line.
2.Start from the thin black wire connecting the first string of negative battery B-,connect the second wire (red line) to the first string of positive battery,then con-nect the positive and negative terminals of each strings of batteries in turn, untilthe last string of total positive terminal B+.
3.After the wiring is connected, the plug should not be directly inserted into the active balance module. Use a multi-meter to measure the voltage between each twoadjacent metal terminals through the back of the cord plug, or use a cord detectorto measure the voltage directly. If it is Li-ion battery voltage should be between3.0~4.15V, LiFepo4 battery should be between 2.5~3.6V, lithium titanate batteryshould be between 1.8~2.8V, ensure that the voltage is correct before the nextoperation.
4.Insert the line into the active equalizer （balance module).
If you need more info, please contact us, we could provide
One-to-one after-sales service,via Alibaba,email or other tools ,including making video call, sending guidance video or photos.
Packing & Delivery
Premium Environmentally-Responsible Packaging
Package included:
1 x Smart 1A Active Balance Module For Li-on Battery
1 x Wire Harness
1 x User Manual
1x Bluetooth module
Tips: If you want to customize product packaging, please feel free to contact us.
