Quick Details
-
Usage:
-
lathe machine ( live center )
-
A:
-
42 of live center
-
B:
-
62 of live center
-
MAX R.P.M:
-
4500 R.P.M
-
Co Accuracy:
-
0.003 of live center
-
G.W. WEIGHT kgs:
-
2.2 kgs of live center
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-

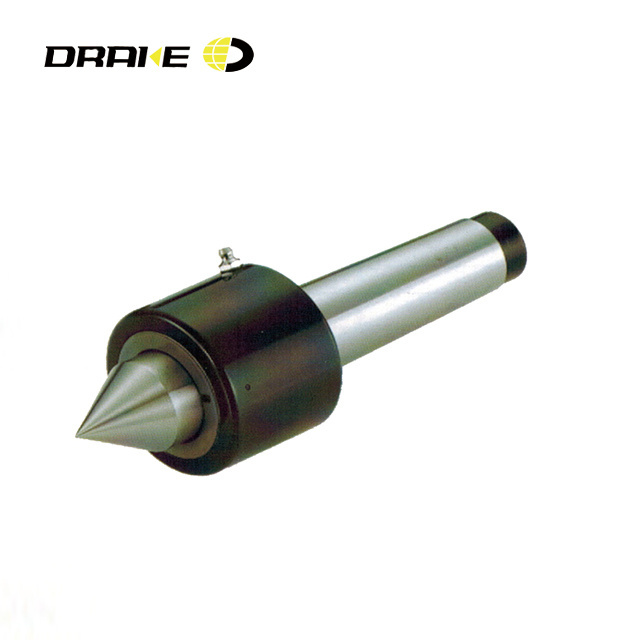

High Speed High Precision Carbide Tipped MT5 MT4 Live Center
-
Type:
-
NCH-MT.4A
-
Usage:
-
lathe machine ( live center )
-
A:
-
42 of live center
-
B:
-
62 of live center
-
MAX R.P.M:
-
4500 R.P.M
-
Co Accuracy:
-
0.003 of live center
-
G.W. WEIGHT kgs:
-
2.2 kgs of live center
High Speed High Precision Carbide Tipped MT5 MT4 Live Center
Product Description
Parameters
Size Parameters & Performance Parameters
| Specifications | unit:mm | |||||||||||||
|
MORES TAPER
MT\MK |
A | B | C | D | D1 | d | L | d1 |
Co
Accuracy |
Max
R.P.M |
θ |
G.W.
WEIGHT kgs |
Package Size
L×W×H |
Remark |
| NCH-MT.3A | 39 | 55 | 86 | 53 | 30 | - | 180 | 12 | 0.003 | 5000R.P.M | 60º | 1.28kgs | 240×70×61 | - |
| NCH-MT.4A | 42 | 62 | 108 | 63 | 32 | - | 208 | 12 | 0.003 | 4500R.P.M | 60º | 2.2kgs | 253×92×80 | - |
| NCH-MT.5A | 49 | 71 | 136 | 83 | 40 | - | 256 | 18 | 0.003 | 3500R.P.M | 60º | 4.33kgs | 303×108×101 | - |
| NCH-MT.6A | 80 | 110 | 189 | 128 | 70 | - | 379 | - | 0.008 | 1500R.P.M | 60º | 14.20kgs | 410×177×168 | - |
| NCH-MT.3B | 45 | 55 | 86 | 53 | 30 | 10 | 186 | 12 | 0.003 | 5000R.P.M | 60º | 1.28kgs | 240×70×61 | - |
| NCH-MT.4B | 52 | 62 | 108 | 63 | 32 | 12 | 218 | 12 | 0.003 | 4500R.P.M | 60º | 2.20kgs | 253×92×80 | - |
| NCH-MT.5B | 59 | 71 | 136 | 83 | 40 | 14 | 266 | 18 | 0.003 | 3500R.P.M | 60º | 4.42kgs | 303×108×101 | - |
| NCS-MT.3 | 28 | 55 | 86 | 53 | 30 | - | 169 | - | 0.005 | 5000R.P.M | 60º | 1.80kgs | 255×138×100 | - |
| NCS-MT.4 | 30 | 62 | 108 | 63 | 32 | - | 196 | - | 0.005 | 4500R.P.M | 60º | 2.53kgs | 255×130×100 | - |
| NCS-MT.4P | 30 | 62 | 108 | 63 | 32 | - | 196 | - | 0.005 | 4500R.P.M | 30º | 2.40kgs | 235×130×80 | - |
| NCS-MT.5P | 34 | 71 | 136 | 83 | 40 | - | 237 | - | 0.005 | 3500R.P.M | 30º | 5.00kgs | 275×147×97 | - |
| NCH-MT.4AT | 42 | 62 | 108 | 60 | 32 | - | 208 | 12 | 0.003 | 4500R.P.M | 60º | 2.50kgs | 253×92×80 | - |
| NCH-MT.5AT | 49 | 71 | 136 | 80 | 40 | - | 256 | 18 | 0.003 | 3500R.P.M | 60º | 4.80kgs | 303×108×101 | - |
| NCH-MT.4BT | 52 | 62 | 108 | 60 | 32 | 12 | 218 | 12 | 0.003 | 4500R.P.M | 60º | 2.50kgs | 253×92×80 | - |
| NCH-MT.5BT | 59 | 71 | 136 | 80 | 40 | 14 | 266 | 18 | 0.003 | 3500R.P.M | 60º | 4.80kgs | 303×108×101 | - |
