- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Power:
-
2.2kw
-
Weight:
-
17 KG
-
Dimension(L*W*H):
-
355*227*227MM
-
Name:
-
Rice flour mill machine
-
Material:
-
SBR
-
Color:
-
black,brown ,amber ,white ,red ,green
-
Size:
-
14inch
-
Cast drum:
-
iron Cast Drum
-
Application:
-
rice mill machine
-
Certification:
-
ISO9001
-
Hardness:
-
90-92 (shore A)
-
Advantage:
-
Good wear-resistance suitable for using in the cold area
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HongQi Bridge
-
Production Capacity:
-
99%
-
Voltage:
-
380V
-
Power:
-
2.2kw
-
Weight:
-
17 KG
-
Dimension(L*W*H):
-
355*227*227MM
-
Name:
-
Rice flour mill machine
-
Material:
-
SBR
-
Color:
-
black,brown ,amber ,white ,red ,green
-
Size:
-
14inch
-
Cast drum:
-
iron Cast Drum
-
Application:
-
rice mill machine
-
Certification:
-
ISO9001
-
Hardness:
-
90-92 (shore A)
-
Advantage:
-
Good wear-resistance suitable for using in the cold area

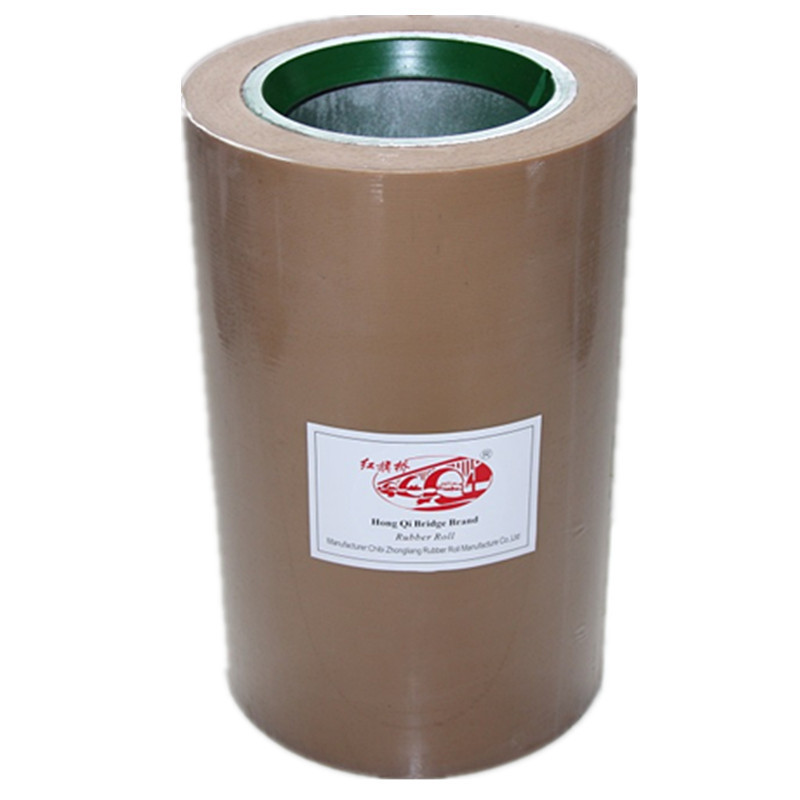

Rice flour mill machine
Hot sale rice flour mill machinery satake rice mill / portable rice milling machine
Brand:
“ Hongqi bridge “ are the first in china with salient features that surpass all the competition. They have very high temperature resistant, high hulling efficiency and a sure bonding that ensures that the rubber stays with the metal drum.
Durability
The heat and abrasion resistant increases output with increased durability.
Smoother Production:
The clustered sheeting coating on the Rollers ensure air trip feel in smoothing production.
Consistency:
The automated compound mixing facilities of the Rollers make sure the consistency and evenness exists till the last layer of the Rubber.
Longer life Span
HongQi Bridge Rubber Rollers They last 2 times longer than other brands.
HongQi Bridge Rubber Rollers are suitable for very high speed operational conditions. There is no crack formation until the last layer of the rubber.
Abrasive Resistance Rollers
- Abrasion Resistant Rollers.
- Until the last layer uniformity in assured.
- Suitable for more abrasion area.
Long Rollers
First Time in china introduces Rollers up to 28".
Apart from size 4"To 14" Rollers We can Produce 20", 25",28" Rollers Also (For Special Applications).
Drum Less Rollers
· Drum Less Rubber Rollers.
· Available in All Sizes.
· Suitable for Low Speed Operation.
Long Life Rollers
HongQi Bridge Rubber Roller.
Long period Life.
Maximum hulling capacity.
Available in all Dimension.
Production and administration conception:
We have tried our best to provide wonderful goods and service to customers through perfect managment,precise style of work,sincere attitude and enthusiastic cooperation spirit
Operating principle:
Because of speed difference of veer and reversion between two rubber rollers, paddy are torn up by two rubber rollers.In the end, rice grains come out.
Rice flour mill machine Pic
Hot sale rice flour mill machinery satake rice mill / portable rice milling machine, rice flour mill machine, hot sale rice flour mill machinery satake rice mill, portable rice milling machine
Specification:
|
Type |
Inch |
External diameter |
Length |
Thickness of rubber |
|
Wheel Type |
4” |
222 mm |
100 mm |
19.5 mm |
|
6” |
222 mm |
152 mm |
19.5 mm |
|
|
8” |
225 mm |
200 mm |
25 mm |
|
|
10” |
255 mm |
254 mm |
24.5mm |
|
|
Casing Type |
14” |
227 mm |
355 mm |
29.5 mm |
|
18” |
232 mm |
457 mm |
30.5 mm |
|
|
20” |
258 mm |
508 mm |
30.5 mm |
|
|
|
25” |
255 mm |
635mm |
30.5mm |
|
|
28” |
255mm |
710mm |
30.5mm |
|
Color |
white and brown |
|||
|
Hardness Shore A |
92±3° |
|||
|
Tensile Strength |
≥21.0(Mpa) [Superior to international advanced level] |
|||
|
Elongation Rate |
≥250% [Superior to international advanced level] |
|||
|
Brand |
Hong QI Bridge, Tiger & Lion, JinBao |
|||
Advantage:
1.Strong bonding between rubber roll and drum
2.Ensure high degree of heat resistance and durability
3.High peeling efficience at minimum broken rice to be attained by its well balance of elasticity, hardness and abrassion resistance.
Useful tips:
1.Take away sand from rice,make sure the cleanliness of rice before hulling.
2.Two rolls should be placed at the parallel side,the space must be equal.
3.The flow or discharge should be balanced,the flow layers should well-arranged.
4.Control the segregation efficiency,and use it within the limits.
|
Standard Quotation Sheet |
|
Model No. |
Meas.(mm) |
Packaging |
Weight(1carton) |
20"HQ/PCS |
Capaciy |
Mill rate |
hardness |
|
|||
|
hot sale rice flour mill machinery satake rice mill / portable rice milling machine |
Product Size:355*227 |
Carton or as your request |
N.W:33KG |
1200PCS |
600tons/pair |
90%-95% |
91 ° ~93 ° |
|
|||
|
|
Carton Size: 470*242*370 |
|
G.W:34KG |
|
|
|
|
|
|||
|
Material |
indicate the different material applied |
|
|
|
|
||||||
|
Delivery |
Depend on the quantity in details |
||||||||||
|
Payment |
30% T/T in advance,70% against copy of B/L,or by L/C |
||||||||||
|
MOQ |
200 pcs |
||||||||||
LOADING PICTURES:
Usage and Attention
1. Optional of Rubber Roller: For the choice of the black, brown and white rubber roller with hardnes shore A 90 o C and 95 o C, it should be according to the type of rices, climate conditions, and different seasons.Try to avoid to use the single roller, the recommended way is higher hardness for fast roller, lower hardness for slow roller.
2.Temperature and Hardness Control: The proper hardness is shore A 82-86 o C, and the temperature is below 50 o C. When the temperature reaches above 60 o C, the hardness of roller should be reduced 4-8 o C
3. Alternative use of rubber rollers is recommended:
A: It can increase the usage life of roller and quantity of dehusking rice.
B: Each roller has break time during the working, which is good for recoving the function of rubber, adjusting the speed difference
upon on different diameters, and controlling the temperature effectively.
4. Two rollers should be at the same level to keep the space equal.
5. The paddy inputting should keep the balance.
6. Keep the rate of the re-hulling under the limitation
7. Storage:
A: Avoid the direct sun shine and soaked in the rain and snow.
B: Away from the heating device about 1.5m.
C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.
D. Keep the room temperature 10-30
o
C, comparative moisture 50-80
o
C
E. Keep in vertical position, horizontal is not allowed.
F. No other materials pressure on it, no hitting to avoid deformation and damage
G. Validity of storage life: one year.
