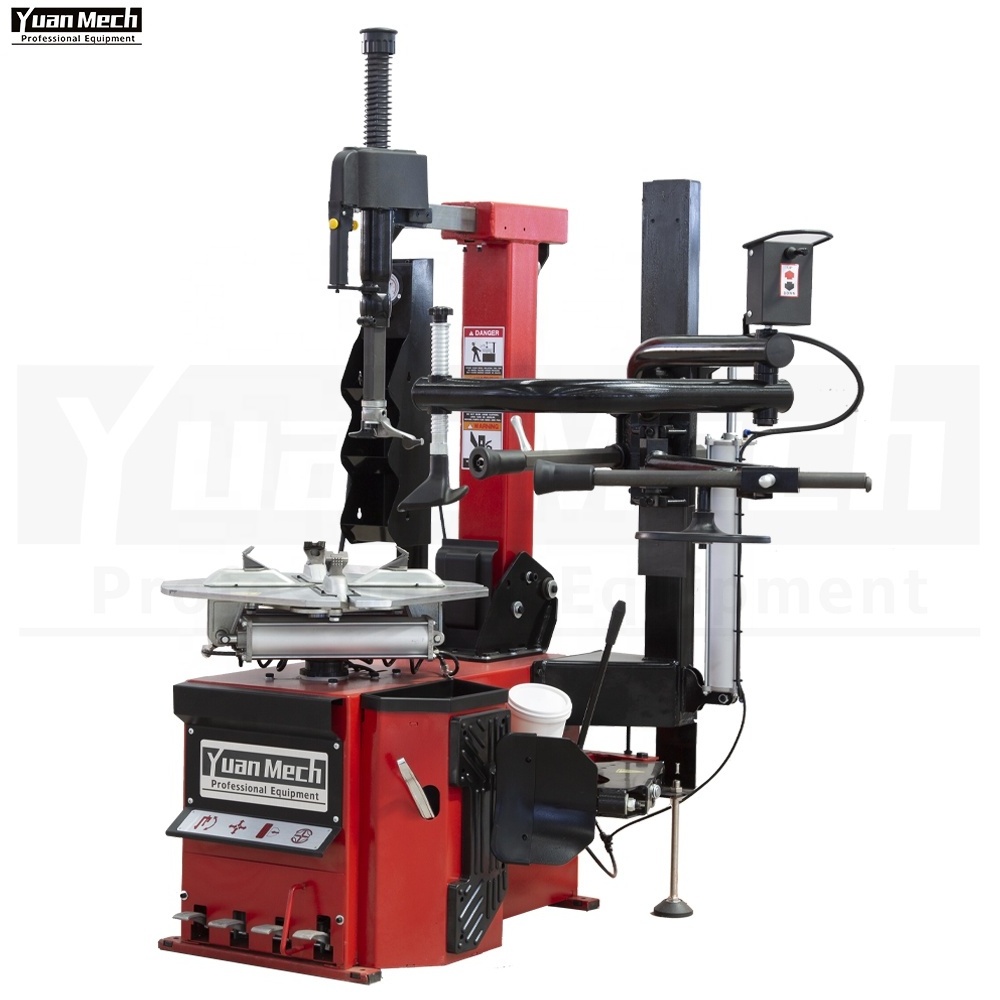

YuanMech C9573 Auto Car Tire Changers Equipment Tire Changing Machine

YuanMech C9573 Auto Car Tire Changers Equipment Tire Changing Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $947

≥34 Pieces

US $889

≥78 Pieces

US $830

≥130 Pieces

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: YuanMech

Model Number:: C9573

Warranty:: 14 Months

Product Name:: Tyre Equipmnt Desmontadora De Neumaticos Tire Changing Machine

Certification:: CE Certificate

Working Pressure:: 8-10bar/117-145psi

Outside clamping:: 10-22"

Inside clamping:: 13-24"

Max. wheel width:: 3-15"

Max. wheel diameter:: 1000mm(40'')

Bead breaker force:: 2800kg

Color:: Customized Color Acceptable

Weight machine:: N.W:255+75kg G.W:270+80kg

Quick Details

Motor Power:: 0.75kW/ 1.1 kW

Operating Pressure:: 8-10 bar/ 117-145 Psi

Power Supply:: 110V/220V/240V/380V/415V 50Hz/60Hz

Place of Origin:: Liaoning, China

Brand Name:: YuanMech

Model Number:: C9573

Warranty:: 14 Months

Product Name:: Tyre Equipmnt Desmontadora De Neumaticos Tire Changing Machine

Certification:: CE Certificate

Working Pressure:: 8-10bar/117-145psi

Outside clamping:: 10-22"

Inside clamping:: 13-24"

Max. wheel width:: 3-15"

Max. wheel diameter:: 1000mm(40'')

Bead breaker force:: 2800kg

Color:: Customized Color Acceptable

Weight machine:: N.W:255+75kg G.W:270+80kg

Product Overview

Advantage 1			High-Strength
Advantage 2			High-Effeiciency
Advantage 3			User Friendly
Advantage 4			Cost Effective
Advantage 5			Quality Assurance
Advantage 6			CE Approved

Products Description

1.An helper arm will help with stiffer sidewalls, run-flats and other low-profile tires. 2.Three positions for pressing the tires to ensure high efficiency in mounting and demounting process.

Combination of powerful lifting disc and press roller.

1.Powerful side-mount bead breaker breaks the toughest beads.

2.Adjustable blade offers multi-angle tire capacity. 3.The bead breaking blade returns smoothly when it detaches from the tire. 4.Optional Quick Deflation Valve

This rubber bump-stop reduces shock loading and wear on the cylinders.

Scientific structure, robust and strong column base support.

The pedals’ high responsiveness prevents tire tears and considerably speeds up operations.And all pneumatic locks and switches are easy to reach.

High quality, explosion-proof filter, lubricator and regulator.

1.An air pressure dump valve lets you release air from the tire.

2.Foot-controlled tire inflator. Inflate tires without lifting a finger.

1.The motor has strong copper rotor construction, high-quality bearings, thermal-cool insulation and durable rolled steel frames. 2.The gearbox never needs maintenance and has a massive oil and grease reservoir for improved heat dissipation and component lubrication.

The pedal assembly can be removed as an integral unit allowing easy servicing.

1.The high-torque electric turntable features increased speed and reversible direction for quicker tire removal and installation. 2.High strength and rust proof clamps provide firm hold and grip.
