Quick Details
-
Brand Name:
-
Tianxiang
-
Model Number:
-
TXZL11
-
Operating Temperature:
-
-20-80℃
-
Operating voltage/Power supply:
-
24V±20%DC OR 230V±15%AC
-
Flow Indicator::
-
LED(6)
-
Set Type:
-
Potentiometer
-
Pressure:
-
100bar
-
Output:
-
PNP,NPN Relay, analog value output (4...20mA)
-
Respose Time:
-
1-13s, typical value 2s
-
Protect Grade:
-
IP67
-
Connection:
-
M12 connector/2m cable
-
Weight:
-
0.4KG
-
Product name:
-
Water Flow Switch
-
Certification:
-
CE
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1~150 cm/s
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tianxiang
-
Model Number:
-
TXZL11
-
Operating Temperature:
-
-20-80℃
-
Operating voltage/Power supply:
-
24V±20%DC OR 230V±15%AC
-
Flow Indicator::
-
LED(6)
-
Set Type:
-
Potentiometer
-
Pressure:
-
100bar
-
Output:
-
PNP,NPN Relay, analog value output (4...20mA)
-
Respose Time:
-
1-13s, typical value 2s
-
Protect Grade:
-
IP67
-
Connection:
-
M12 connector/2m cable
-
Weight:
-
0.4KG
-
Product name:
-
Water Flow Switch
-
Certification:
-
CE
Product Description

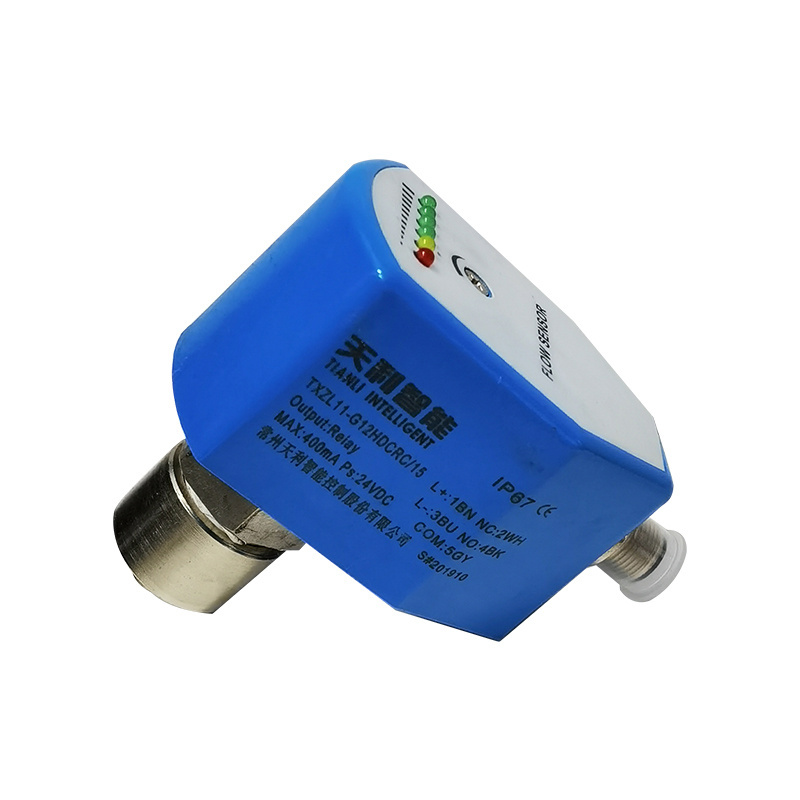

TXZL11 Electronic flow switch
Characteristic:
No moving parts, maintenance free, easy installation, one model suite for multiple pipe diameter requirements , continuous adjustable switching value, extremely low pressure loss, compact structure, LED display flow trend and switching status.
No moving parts, maintenance free, easy installation, one model suite for multiple pipe diameter requirements , continuous adjustable switching value, extremely low pressure loss, compact structure, LED display flow trend and switching status.
Specification
|
|
|
|
Set Range
|
1...150cm/s(water)
|
|
|
3...300cm/s(oil)
|
|
|
20...2000cm/s(air)
|
|
Signal Output
|
PNP,NPN Relay， analog value output （4...20mA）
|
|
|
No+Nc(SPDT) Normally open + normally closed（SPDT）
|
|
Operating voltage/Power supply |
24V±20%DC OR 230V±15%AC
|
|
switch current
|
Max.400Ma(PNP NPN,type)
|
|
|
Max4A(relay type)
|
|
Onload current
|
Max.80mA
|
|
Flow Indicator:
|
LED（6）
|
|
Set Type
|
Potentiometer
|
|
Pressure
|
100bar
|
|
Temperature
|
4℃/s
|
|
Respose Time
|
1-13s， typical value 2s
|
|
Initialization time
|
8s
|
|
Electrical protection
|
Reverse phase, short circuit, overload protection
|
|
Protect Grade
|
IP67
|
|
Medium temperature
|
-20--80℃
|
|
Ambient temperature
|
-20--80℃
|
|
Storage temperature
|
-20--100℃
|
|
Connection
|
M12 connector/2m cable
|
|
Material
|
Probe: stainless steel
|
|
|
(shell)：PBT
|
|
Weight
|
0.4KG
|
LED INDICATOR
Yellow and green LED Light
It means that velocity is larger than set value
If the velocity will be faster
The green LED will be lighter
multi-connector
The electronic flow control with multi-connector,such as the M18*1.5,G1/4,G1/2,G3/4,G1 inch or Customized
