Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
VH-NM-L34
-
Style:
-
38 x 38mm PCBA
-
Product name:
-
4MP fixed/vari-focal lens IP camera module
-
Resolution:
-
4MP
-
SoC:
-
Ingenic T31N
-
Lens:
-
Fixed Lens/manual vari-focal lens
-
Video Compression:
-
H.264/H.265/h265+
-
Storage:
-
Max 512GB TF/SD Card
-
Power Supply:
-
12V DC/PoE
-
Type:
-
Mini Module
Quick Details
-
Special Features:
-
Human Detection
-
Function:
-
Two-way Audio
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
VH-NM-L34
-
Style:
-
38 x 38mm PCBA
-
Product name:
-
4MP fixed/vari-focal lens IP camera module
-
Resolution:
-
4MP
-
SoC:
-
Ingenic T31N
-
Lens:
-
Fixed Lens/manual vari-focal lens
-
Video Compression:
-
H.264/H.265/h265+
-
Storage:
-
Max 512GB TF/SD Card
-
Power Supply:
-
12V DC/PoE
-
Type:
-
Mini Module

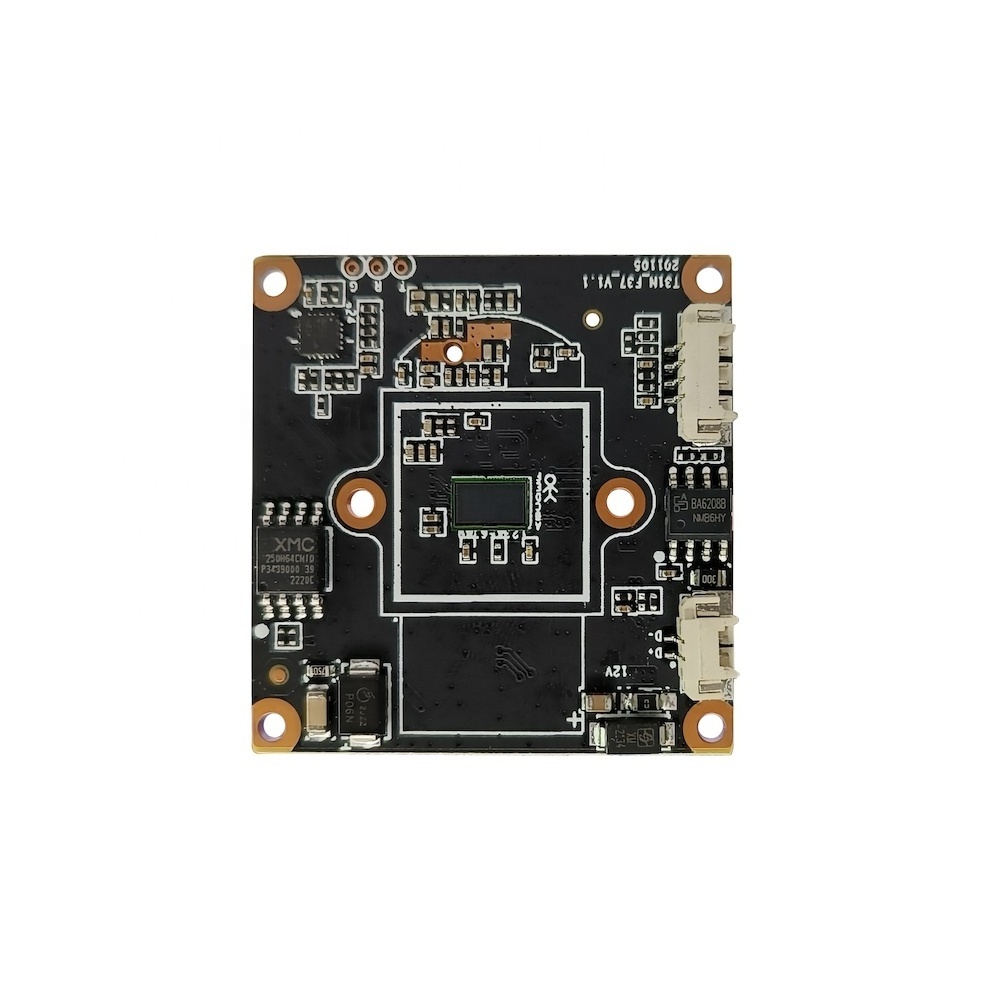

4MP fixed/vari-focal lens IP camera module
Max. 2560 x 1440@20fps
Smart H.265, H.265, H.264+, H.264
Support fixed lens & vari-focal lens
Support two-way audio
Support human detection, instrusion alarm and sound warming
Support night vision and TF card storage(max. 512GB),
Support extended board which support I/O, RS485
ONVIF, 3D-DNR, DEFOG, DWDR, human detection, motion detection, privacy masking
| Camera | ||
| Model No. | VH-NM-L34 | VH-NM-AK54 |
| SoC | T31N | |
| Sensor | GC4053 1/2.9" 4MP low illumination CMOS sensor | GC4043 1/2.8" 4MP low illumination CMOS sensor |
| Lens | Support both fixe lens and vari-focal lens | |
| Day & Night | ICR switch, auto/color/B&W/CDS trigger/customized time | |
| WDR | DWDR(off/low/middle/high) | |
| IR LED Control |
Auto/manual/off, support 0~100 brightness adjust (IR/warm/dual light) |
|
| 3D DNR | Off/low/middle/high/higher | |
| Defog | Off/low/middle/high | |
| Mirror | Off/horizontal/vertical/flip | |
| Image Setting | Brightness, contrast, sharpness, saturation, chroma | |
| Human Detection (Not availve for P2P version) | ||
| Detection Quantity | ≤5 persons | |
| Humanoid Pixel | ≥40 x 40P | |
| Detection Accuracy | ≥99% | |
| Response Speed | ≤1s | |
| Max Detection Frame | 5fps/s | |
| Detect Part | Any part of human being such as head, hand, sholder | |
| Human Tracking | Support | |
| Detection Mode | Support both moving and standing human detection | |
| Detection Method | Image detection during day or night with light or IR LED on | |
| Detection Area | Full scren(default), specified area | |
| Upload Method | By private protocol | |
| Trigger Method | Triggered by video | |
| Audio & Video | ||
| Standard | Smart H.265/H.265/H.264 | |
| Main Stream |
2560 x 1440@20fps 2304 x 1296@20fps 2048 x 1536@20fps 1920 x 1080@20fps |
|
| Sub Stream |
720 x 576@25fp
640 x 480@25fps
352 x 288@25fps 320 x 240@25fps |
|
| Max. Resolution | 2560 x 1440(4MP) | |
| Video Code Rate | Fixed code rate, variable code rate(main stream 160~4000Kbps) | |
| Video Type | Composited stream, video stream | |
| Audio Standard | G.711u/G.711A 64Kbps | |
| Network & Function | ||
| Network Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPNP, SMTP | |
| Connection Protocol | Slink, ONVIF | |
| Security Mode | Authorized user name and password, HTTPS encryption, AES connectinng encryption, RTSP verification | |
| Motion Detection | Settable detection area, settable sensitivity level | |
| Occlusion Alarm | Support 1 area | |
| Privacy Masking | Support 4 areas | |
| Schedule Linkage | Sanpshot, email | |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm | |
| OSD | Title, time and date overlay, multi-line and colorful character are optional | |
| Interface | ||
| Network Port | 10/100M self-adaptive RJ 45 port | |
| Audio | Audio input/output | |
| General | ||
| Power Supply | DC12V, PoE(optional) | |
| Size | 38 x 38mm | |
| Work Condition | -10~+50℃, RH90% max | |
