Application materials: This series of Metal deburring machines are suitable for stainless steel, steel, aluminium, copper, etc.
Application products: Removal of burrs on laser-cut, waterjet-cut and punched products
Application Industries: Metal deburring machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal
Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis,
Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel, hardware, auto parts, Glasses Frame, Electronic Parts,
Nameplates, etc
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
15
-
Weight (KG):
-
2000
-
Function:
-
Polishing Metal
-
Application:
-
Stainless Steel
-
Machine Type:
-
Automatic Grinding Polishing
-
Certification:
-
ISO CE
-
Name:
-
polishing machine
-
Usage:
-
Workpieces Surface Deburring Polishing
-
MOQ:
-
1 Set
-
Speed:
-
1-10 M/ Min
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Model:
-
1000
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xingsai
-
Marketing Type:
-
Hot Product 2024
-
Power (kW):
-
15
-
Weight (KG):
-
2000
-
Function:
-
Polishing Metal
-
Application:
-
Stainless Steel
-
Machine Type:
-
Automatic Grinding Polishing
-
Certification:
-
ISO CE
-
Name:
-
polishing machine
-
Usage:
-
Workpieces Surface Deburring Polishing
-
MOQ:
-
1 Set
-
Speed:
-
1-10 M/ Min
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Model:
-
1000
Product Description

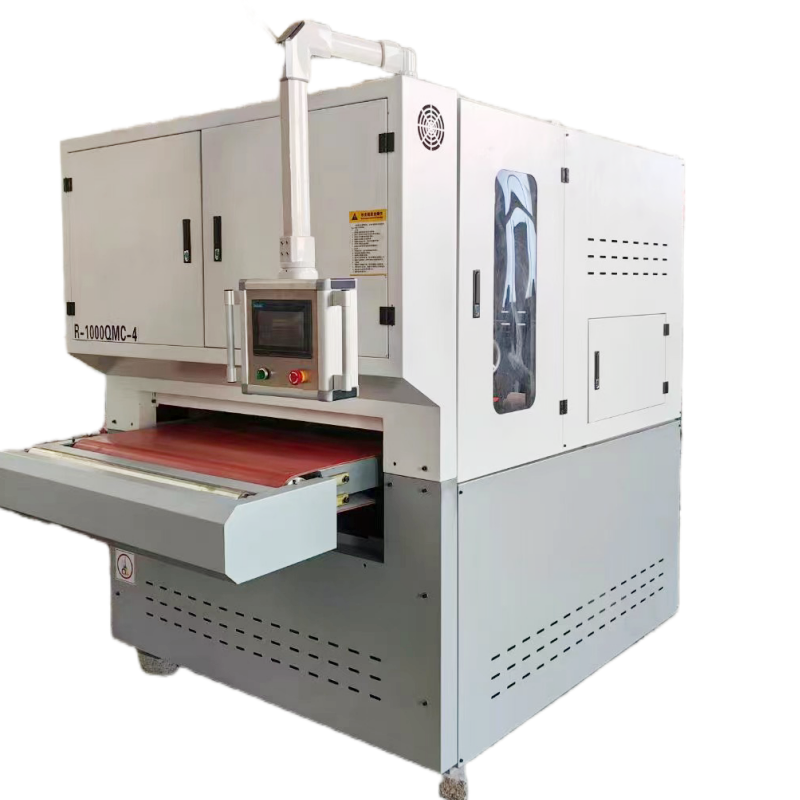

Sheet Metal Deburring Machine Quality Control
1. All-round quality control in the procurement process, all components used famous brands
2. All machines can be traced back to the production batch, which is convenient for quality control and after-sales.
3. Round after round of testing before delivery to ensure that the machines arrived without any possibility of problems.
2. All machines can be traced back to the production batch, which is convenient for quality control and after-sales.
3. Round after round of testing before delivery to ensure that the machines arrived without any possibility of problems.
Machine Application
specification
|
the main part of the equipment parameters
|
|
|
|
|
||
|
Item
|
Content
|
Specification
|
|
|
||
|
Processing
range |
Working Width
|
≤1300mm
|
|
|
||
|
|
Thickness
|
0-130mm
|
|
|
||
|
|
Length
|
Unlimited
|
|
|
||
|
Attachment other
|
Sand belt drive motor *2 sets
|
22kw*2pcs
|
|
|
||
|
|
6 Universal roller brushes
|
2.2kw*3pcs
|
|
|
||
|
|
Lifting motor * 2pcs
|
1.5kw(platform)+0.75kw(Universal roller brush)
|
|
|
||
|
|
Feed conveying motor *1 set
|
4kw
|
|
|
||
|
Operating parameter
attachment |
Alternate speed
|
0-35r/min(Variable frequency)
|
|
|
||
|
|
Spindle speed
|
8-20r/min(Variable frequency)
|
|
|
||
|
|
Feed rate
|
0.5-8 M/min
|
|
|
||
|
Other Processing
range |
Fixed model
|
Magnetic/vacuum adsorption platform
|
|
|
||
|
|
Negative pressure adsorption
|
15kw
|
|
|
||
|
|
Thickness adjustment mode
|
Automatic
|
|
|
||
|
|
Thickness adjustment accuracy
|
0.05mm
|
|
|
||
|
|
Working air pressure
|
0.4-0.6Mpa
|
|
|
||
|
|
Machine dimension
|
3600mm*1950mm*2200mm
|
|
|
||
|
|
Total quality content
|
About 4500kg
|
|
|
||
machine running video
Effect Display
befor polishing.
finished polishing
1The oxygen layer can choose to retain or remove and draw the effect according to customer requirements.
2, The diameter of the active roller is up to 240mm, the contact area is large, the deburring effect is good, and the efficiency is high.
3, For the deformation plate, the deformation of the cutting plate does not have the problem of only hitting the high point
4,The automatic guiding CNC control of the abrasive belt is accurate and simple.
5, Small pieces are not a problem, as long as the width is greater than the height, it can be sanded
6, Fast speed, high efficiency, one equipment can top 20 manpower
7, equipped with high power and low energy consumption motor, strong power
2, The diameter of the active roller is up to 240mm, the contact area is large, the deburring effect is good, and the efficiency is high.
3, For the deformation plate, the deformation of the cutting plate does not have the problem of only hitting the high point
4,The automatic guiding CNC control of the abrasive belt is accurate and simple.
5, Small pieces are not a problem, as long as the width is greater than the height, it can be sanded
6, Fast speed, high efficiency, one equipment can top 20 manpower
7, equipped with high power and low energy consumption motor, strong power
sanding belt
2，the sanding belt have many kinds,it based on polishing parts material need.
Universal wheel
1，universal wheel have two size
300*300*28mm
300*300*32mm.
2,it main fuction is High speed rotary grinding, deburring, slag, chamfering and obtuse effect
PLC full computer touch screen fully automated, high precision, easy to operate
structure drawing choose
factory workshop truth
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
FAQ
Q:Why choose our machine?
A:We are polishing machine equipment MANUFACTURER, So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A: We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.Please tell me your requirements first, then we can designed the suitable machine to you.
Q:How about delivery time?
A: 10-15days
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email.
Q: Do you have installation and training service in our local?
A: Currently, we have service partners in Portugal, Tukey and India. Portugal and Turkey partners provide service for the European area. In other areas, if needed, we will arrange an engineer from China.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support and service, and consumables at the lowest price.
