Quick Details
-
Pins:
-
4p
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMICO
-
Model Number:
-
SO-HA-004
-
Name:
-
heavy duty connector
-
Certificate:
-
CE ROHS UL DMT
-
OEM:
-
Provided
-
Mechanical Stability:
-
High
-
Specification:
-
DNEN60664,DNEN61984
-
Current:
-
10A 230/400V
-
Pollution Degree:
-
3
-
Mechanical Working Life:
-
≥500
-
Material:
-
Polycarbonate
Quick Details
-
Type:
-
Amphenol connector
-
Application:
-
Automotive
-
Gender:
-
male female one set
-
Pins:
-
4p
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMICO
-
Model Number:
-
SO-HA-004
-
Name:
-
heavy duty connector
-
Certificate:
-
CE ROHS UL DMT
-
OEM:
-
Provided
-
Mechanical Stability:
-
High
-
Specification:
-
DNEN60664,DNEN61984
-
Current:
-
10A 230/400V
-
Pollution Degree:
-
3
-
Mechanical Working Life:
-
≥500
-
Material:
-
Polycarbonate
Product Description
Cable entry protection:
1. Universal cable glands
2. Special cable clamp with strain relief,bell mouthed cable fitting and anti-twist devices
3. Cable gland with normal or multiple seal
4. Extensive range of accessories
1. Universal cable glands
2. Special cable clamp with strain relief,bell mouthed cable fitting and anti-twist devices
3. Cable gland with normal or multiple seal
4. Extensive range of accessories
Hoods:
1. low or high construction
2. Top or side cable entry .1 or 2 locking levers
1. low or high construction
2. Top or side cable entry .1 or 2 locking levers
Male insert with:
1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminal
1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminal
Female insert with:
1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminal
1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminal
Housing:
1. Housing(bulkhead mounting) with or without thermoplastic or metal covers,1 or 2 locking levers
2. Housing(surface mounting) low or high construction with or without thermoplastic or metal covers,1 or 2 locking levers,1 or 2
cable entries
3. Hood(cable to cable) low or high construction for cable to cable connections
1. Housing(bulkhead mounting) with or without thermoplastic or metal covers,1 or 2 locking levers
2. Housing(surface mounting) low or high construction with or without thermoplastic or metal covers,1 or 2 locking levers,1 or 2
cable entries
3. Hood(cable to cable) low or high construction for cable to cable connections
Accessories:
1. Protective covers available
2. Code and guide pins for coding
3. Special insert fixing screws for use without hoods and housings
4. Label according to CSA-approval
1. Protective covers available
2. Code and guide pins for coding
3. Special insert fixing screws for use without hoods and housings
4. Label according to CSA-approval
Details Images
Characteristics
Innovative SMICO-Quick Lock termination technology with reduced wiring times
No special tools required
Insert suitable for all metal plastic hoods and housings of the sized H3A
For currents up to 10A
|

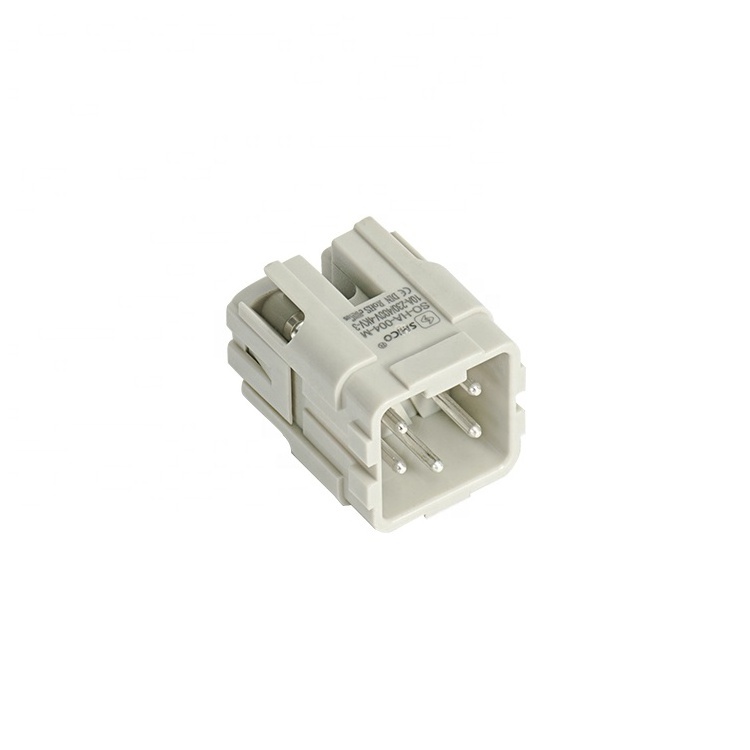

Insert
|
|
|
|
Number of contacts
|
4+PE
|
|
|
Electrical data acc. to EN 61 984
|
|
|
|
---Rated current
|
10A
|
|
|
---Rated voltage conductor
|
230/400V
|
|
|
---Rated impulse voltage
|
4kV
|
|
|
---Pollution degree
|
3
|
|
|
---Pollution degree 2 also
|
10A 230/400V 4kV 2
|
|
|
Rated voltage acc. to UL/CSA
|
600V
|
|
|
Insulation resistance
|
≥1010Ω
|
|
|
Material
|
polycarbonate
|
|
|
Limiting temperatures
|
-40℃...+125℃
|
|
|
Flammability acc. to UL 94
|
V0
|
|
|
Mechanical working life(mating cycles)
|
≥500
|
|
Characteristics:
Two levers at the bottom part of the housing
* Secure locking ensured by four locking points
* Minimal space requirements and high locking force
* Ideal for laterally arranged connectors
* Secure locking ensured by four locking points
* Minimal space requirements and high locking force
* Ideal for laterally arranged connectors
Two levers on the hood
* Secure locking ensured by four locking points
* Minimal space requirements and high locking forces
* Ideal for laterally arranged connectors and surface-mounted housings with caps
* Secure locking ensured by four locking points
* Minimal space requirements and high locking forces
* Ideal for laterally arranged connectors and surface-mounted housings with caps
One lever at the bottom part of the housing
* Two locking points along the longitudinal axis
* Easy to access even with cable entering laterally
* Cap on the upper part of the housing can be locked
* Two locking points along the longitudinal axis
* Easy to access even with cable entering laterally
* Cap on the upper part of the housing can be locked
|
Hood&Housing
|
|
|
|
Material
|
Polycarbonate
|
|
|
Colour
|
light grey (RAL 7032)
|
|
|
Locking element
|
|
|
|
---Lever type
|
plastic elastic pressing
|
|
|
---Material
|
polyamide
|
|
|
Hoods/Housing sealing
|
NBR
|
|
|
Limiting temperatures
|
-40℃...+125℃
|
|
|
Flammability acc.to UL 94
|
V0
|
|
|
Degree of protection acc.to EN 60529 for coupled connector
|
IP65
|
|
|
Cable gland
|
|
|
|
|||
|
|
Metal cable gland
|
Plastic cable gland
|
Hose cable gland
|
|||
|
Material:
|
Nickel-plated brass
|
Nylon
|
Nylon
|
|||
|
Seal Material
|
NBR
|
NBR
|
|
|||
|
Degree of protection
|
IP68
|
IP68
|
IP54
|
|||
|
Temperature range
|
Stat:-40℃-100℃
Dyn:-20℃-80℃ |
Stat:-40℃-100℃
Dyn:-20℃-80℃ |
-40℃-+150℃
|
|||
Product packaging
Zhejiang Smico Electrical Technology Co.,Ltd is a company specializing in heavy duty connector Research,production and sales as one integrated high-tech enterprises,with many years of professionaland technical strength and long-term development goals.In the company“to the quality ofsurvival,to the credibility of development”and absorbing the international advanced technologyand design concept,is committed to providing high quality products and the best service,make the products on the market can be a leading position.
