Quick Details
-
product name:
-
isdb-t modulator
-
inputs:
-
6 ASI ,384 ip
-
RF out:
-
DVB-C , DVB-T , ATSC-T, ISDB-T, DTMB Modulation, 8/16*Carrier RF Out
-
IP out:
-
8*MPTS (6*MPTS and 2*RF pass through)
-
Multiplexing:
-
support
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Huafan
-
Model Number:
-
Q4
-
product name:
-
isdb-t modulator
-
inputs:
-
6 ASI ,384 ip
-
RF out:
-
DVB-C , DVB-T , ATSC-T, ISDB-T, DTMB Modulation, 8/16*Carrier RF Out
-
IP out:
-
8*MPTS (6*MPTS and 2*RF pass through)
-
Multiplexing:
-
support

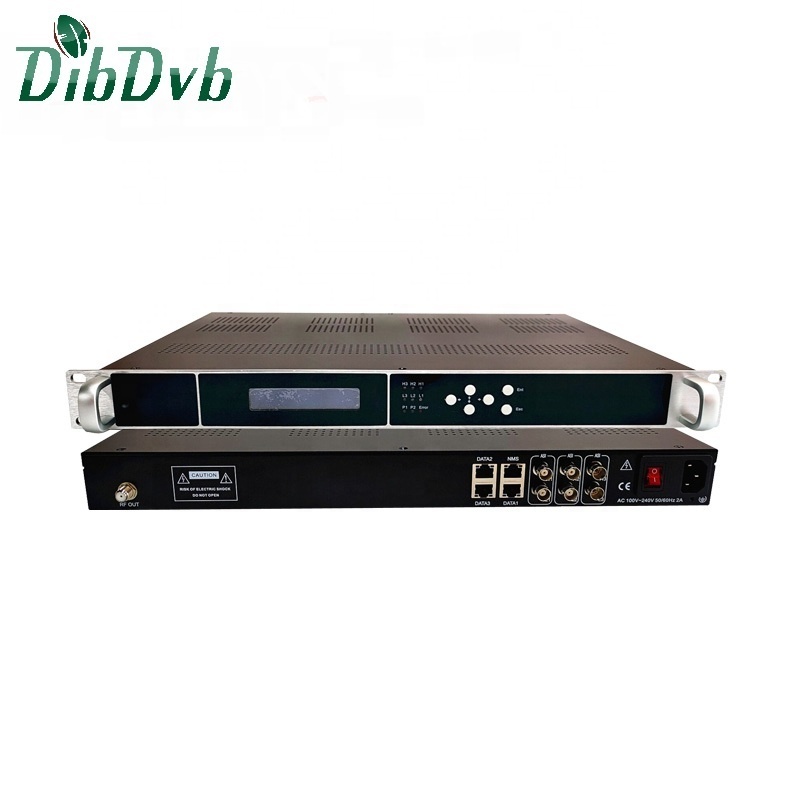

Catv multi channel rf isdb-t modulator 16 carrier out for Digital Cable TV System with 3*GbE Port input
Q4 IP to RF modulator, with ASI input, optional modulation (DVB-C, DVB-T, ATSC, ISDB-T, DTMB) to convert Video/Audio signals into RF over exist Coax Cable distribution. It provides a best-of-class modulator platform for Digital TV Owners and IPTV operators.
The platform can change the modulation signal by software upgrade, this flexible operation can help to reduce the cost in the operation of the project. Q4 supports modulation channel independent multiplexing, with DVB-T, ISDB-T, DVB-C, ATSC, DTMB modulation output, and can output different modulation signals.
- High density, high quality, high performance, high flexibility
- Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation, 8/16*Carrier RF Out
- supports 384*IP (SPTS/MPTS) inputs over 3*GbE Port
- 6 separate ASI input
- 8*MPTS (6*MPTS and 2*RF pass through) out over GE1
- 8/16 Channel Non-adjacent Carrier RF output
- Supports non-adjacent frequencies in the whole frequency range, and solves a small number of isolated frequency points
- Agile full-band: 96 ~ 864Mhz
- Selectable the Value of PCR PID same as Video PID
- LCN (Logical Channel Number) support
- PSI/SI editing & inserting
- PID Remapping & Filtering
- Support TTL editing
- PCR correct and PCR interval adjusting
- Superior Shoulders and Excellent modulation quality MER
- Easy-to-Use System Management via Web
Principle Chart
TECHNICAL SPECIFICATIONS
IP Interfaces
Types: 3* Gigabit Ethernet
Connector : providing 1000Base-T (twisted pair, RJ-45)
IP Encapsulation : MPEG-TS over UDP/RTP IP
I/O Speed (1Gbe ports) : 840 Mbps per port
IP Input
Addressing & Protocols : Unicast,Multicast(IGMP V2/V3)
MPEG Format : 188/204 Bytes per TS packet
Maxinumber of services : 384*IP over 3*GBE
Transport stream : reception of MPTS and SPTS
IP Output
Maxinumber of services : 8*MPTS (6*MPTS and 2*RF pass through)
TS out : GbE
Packet Length : 1-7
MPEG Format : 188 Bytes per TS packet
Null Packet Processing : Filtering & Insertion
DVB-ASI inputs
Connecto : BNC female, 75Ω
Signal Level : 200-800mVp-p
Packet Length : 188 bytes
Maximum bit-rate per port : ≤100Mbps
Number of Input Ports : 6 separate ASI ports
Stream Output
RJ45 Port : 100/1000M GbE Port
MPEG TS over UDP, unicast, and multicast streaming
MPEG TS over RTP/RTSP
Configurable packet size : (2-7)x188Bytes
Filter Null Packet
Modulation Part
Connector : 1 Port, F-Type, 75
Output Return Loss : 14 dB
MER : ≥40dB
Default RF out level (8/16/32 Carrier ) : -35 ~ -5dbm
High RF out level (16/32 Carrier ) : -35 ~ 5dbm
RF frequency : 96~ 864Mhz, 1KHz step
separate control Frequency difference range : (0 ~768M)
Numbers of RF Channel : 8/16*Carrier RF Out, 16/32 Carrier DVB-C
Modulation Mode : DVB-C, DVB-T, ATSC, ISDB-T, DTMB
DVB-T Standard EN300744
FFT mode : 2K, 8K
Bandwidth : 6M, 7M, 8M
Constellation : QPSK, 16QAM, 64QAM
Guard Interval : 1/4, 1/8, 1/16, 1/32
FEC : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C Standard J83.A (DVB-C, J83.B, J83.C)
|
Carrier |
ANNEX A |
Annex B |
Annex C |
|
|
Constellation (QAM) |
16,32,64,128, 256 |
64 |
256 |
64/256 |
|
Bandwidth (Mhz) |
8 |
6 |
6 |
6 |
|
Symbol Rate ( Mbaud) |
5-7 |
5.057 |
5.361 |
4.2-5.3 |
ISDB-T Standard ARIB STD-B31
Constellation : DQPSK, QPSK, 16QAM, 64QAM
Guard Interval : 1/32, 1/16, 1/8, 1/4
Transmission Mode : 2K, 4K, 8K (4 RF mode only support 2K)
Code rate : 1/2, 3/4, 5/6, 7/8
BandWidth : 6Mhz
ATSC Standard ATSC A/53
Constellation : 8 VSB
DTMB Standard : GB20600-2006
Constellation : 4QAM, 16QAM, 32QAM, 64QAM
Code rate : 0.4, 0.6, 0.8
Guard Interval : 420, 595, 945
DTMB Standard GB20600-2006
Constellation :4QAM, 16QAM, 32QAM, 64QAM
Code rate : 0.4, 0.6, 0.8
Guard Interval : 420, 595, 945
Multiplexing
Maximum PID Remapping 180 input per channel
PID remapping by automatically or manually
PSI/SI : SDT/PMT/TOT/PAT/BAT/CAT/TDT/NIT
Accurate PCR adjusting
Max Numbers : 4 mux for RF and 1 Mux for 4*MPTS (4*MPTS channels can Separate MUX) IP out in Modulation
4 Mpts IP out In Tuners gateway
System
Local interface : LCD + control buttons
Remote management Web/NMS
NMS interface : RJ45, 100M
Language : English
Environment
Voltage range : 100 to 240V AC ; 50/60Hz
Power consumption : 60W
Operation Temperature : 0 ~ 45℃
Storage Temperature : -20 ~ 80℃
Dimensions : 482mm (L) * 380mm (W) * 44mm (H)
Weight : 4.5 kg
