Quick Details
-
Model Number:
-
DLR680P-27
-
Place of Origin:
-
Anhui, China
-
Input Voltage(V):
-
120-277
-
Lamp Luminous Flux(lm):
-
3750
-
Beam Angle(°):
-
110
-
Product name:
-
27W Dimmable Commercial Recessed Linear LED Lighting Fixture
-
Warranty:
-
5 Years
-
Certification:
-
ETL/DLC
-
Installation:
-
Suspended mounting, Track installation
-
LPW:
-
125lm/w
-
Driver:
-
Chinese led driver
-
Shape:
-
Rectangle
-
Beam Angle:
-
110°
-
CCT:
-
3000K-6000K
-
Dimension:
-
47.25"X2.76"X3.15"
Quick Details
-
Body Material:
-
Steel+PC cover
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
DL
-
Model Number:
-
DLR680P-27
-
Place of Origin:
-
Anhui, China
-
Input Voltage(V):
-
120-277
-
Lamp Luminous Flux(lm):
-
3750
-
Beam Angle(°):
-
110
-
Product name:
-
27W Dimmable Commercial Recessed Linear LED Lighting Fixture
-
Warranty:
-
5 Years
-
Certification:
-
ETL/DLC
-
Installation:
-
Suspended mounting, Track installation
-
LPW:
-
125lm/w
-
Driver:
-
Chinese led driver
-
Shape:
-
Rectangle
-
Beam Angle:
-
110°
-
CCT:
-
3000K-6000K
-
Dimension:
-
47.25"X2.76"X3.15"

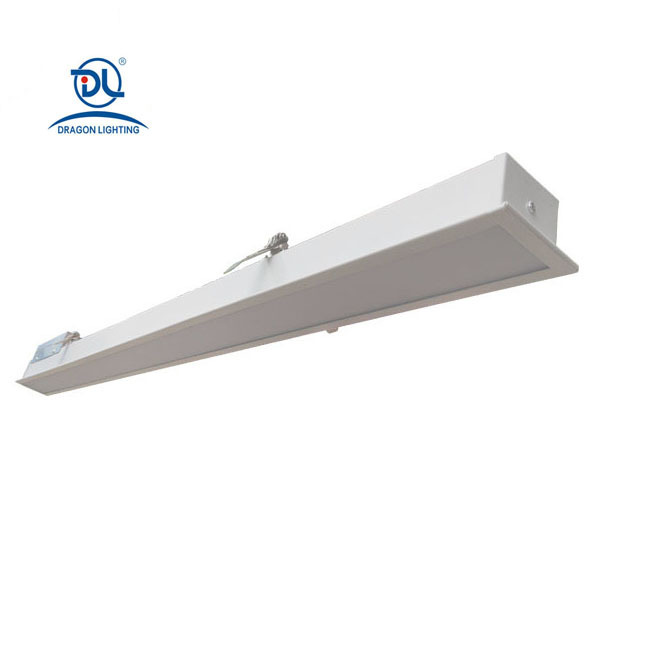

27W Dimmable Commercial Recessed Linear LED Lighting Fixture
Technical data:
|
Model: DLR680P-27 Fixture Demension:47.25"X2.76"X3.15" Output power: 27W Luminous Flux: 2835lm Light efficiency: 105lm/W LED: LED SMD 2835 Driver:Chinese LED driver |
CRI: >80 CCT: 3000k-6000k Rated input:110-277V Beam Angle: 110° Certification: ETL/DLC Warranty: 50000 hours Dimmable or Dali driver is available on request |
Housing for LED linear light:
High quality steel housing, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white/black/grey powder coating.
Diffuser for LED linear light:
The light designed by the LED stripe with Polycarbonate cover together, high efficiency and no glare, it will give novel visual effect and soft luminosity.
LED type for LED linear light:
It uses LED Epistar ,Sumsung ,Hongli SMD 2835.
Electrical for LED linear light:
Arcata or Famous logo standard driver or Dali /Dimmable driver.
Mounting for LED linear light:
Recessed Mounting.
Main applications:
1.Hotel / Hospital / Supermarket
2.Conference / Meeting room / Factory / Office
3.Residential Home / Institution Building
4.School / College / University
5.Church / Theater / Sport Area
Save energy:
Energy saving, saving 65% than the traditional lights at the same brightness.
Lower glare:
Unique double parabolic grille designed according to the principle of optics, it can effectively prevent and eliminate all kinds of glare, and it is not easy for eyes to produce visual fatigue for long time.
Easy to be installed:
The light is easy to be installed by stainess hung wire or hung cable.
Long life:
it has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
Specifications:
|
Model |
Power |
Leds |
Luminous Flux (lm) |
Efficiency (lm/w) |
CRI |
CCT |
|
30 |
2835 |
3150 |
1 05 |
>80 |
3000K - 6000K |
|
|
40 |
2835 |
4200 |
1 05 |
>80 |
3000K - 6000K |
|
|
27 |
2835 |
2835 |
1 05 |
>80 |
3000K - 6000K |
Packing details:
|
Model |
Dimension (L*W*H)(inch) |
Packing size (inch) |
Qty/ctn |
|
47.25X2.76X3.15 |
47.80x6.30x7.09 |
4 |
|
|
47.25X2.76X3.15 |
47.80x6.30x7.09 |
4 |
|
|
47.25X2.76X3.15 |
47.80x6.30x7.09 |
4 |
The light is easy to be installed by mounting kit. It uses Arcata driver,and it can gives the light
long life.
It has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection. Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit.
Q1: Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.
Q3: Do you have any MOQ limit for LED light order?
A: 1pc for sample order is available.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to place an order for LED light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q6: Are you a factory? A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters.
Q7: Do you offer guarantee for the products? A: Yes, we offer 3-5 years warranty to our products.
