- Product Details
- {{item.text}}
Quick Details
-
Ejector Force(kN):
-
150 kN
-
Theoretical Shot Volume(cm³):
-
34 cm³
-
Injection Rate (g/s):
-
28 g/s
-
Injection Weight (g):
-
30 g
-
Screw Speed (rpm):
-
1 - 150 rpm
-
Screw diameter (mm):
-
22 mm
-
Distance between Tie Bars:
-
H450*V325mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Henan, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
SR-ZSJ
-
Brand Name:
-
SHARE
-
Power (kW):
-
2.2 kW
-
name:
-
China Inejction Molding Machine
-
Keyword:
-
PC.ABS.LCP.PP.PVC Plastic Injection Machine
-
keywords:
-
Plastic Machinery Equipment
-
Screw Diameter:
-
22mm
-
Injection pressure:
-
162Mpa
-
power:
-
2.2kw
-
Key Words:
-
Vertical Plastic Injection Moulding Machine
-
kw:
-
Pet Preform Injection Making Machine
-
Plastic Type:
-
Preform Injection
-
Product name:
-
Plastic Injection Moulding Machine
-
Marketing Type:
-
New Product 2021
Quick Details
-
Plasticizing Capacity(g/s):
-
40
-
Mold Height(mm):
-
130 - 280 mm
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
150 kN
-
Theoretical Shot Volume(cm³):
-
34 cm³
-
Injection Rate (g/s):
-
28 g/s
-
Injection Weight (g):
-
30 g
-
Screw Speed (rpm):
-
1 - 150 rpm
-
Screw diameter (mm):
-
22 mm
-
Distance between Tie Bars:
-
H450*V325mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Henan, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
SR-ZSJ
-
Brand Name:
-
SHARE
-
Power (kW):
-
2.2 kW
-
name:
-
China Inejction Molding Machine
-
Keyword:
-
PC.ABS.LCP.PP.PVC Plastic Injection Machine
-
keywords:
-
Plastic Machinery Equipment
-
Screw Diameter:
-
22mm
-
Injection pressure:
-
162Mpa
-
power:
-
2.2kw
-
Key Words:
-
Vertical Plastic Injection Moulding Machine
-
kw:
-
Pet Preform Injection Making Machine
-
Plastic Type:
-
Preform Injection
-
Product name:
-
Plastic Injection Moulding Machine
-
Marketing Type:
-
New Product 2021
Product Description

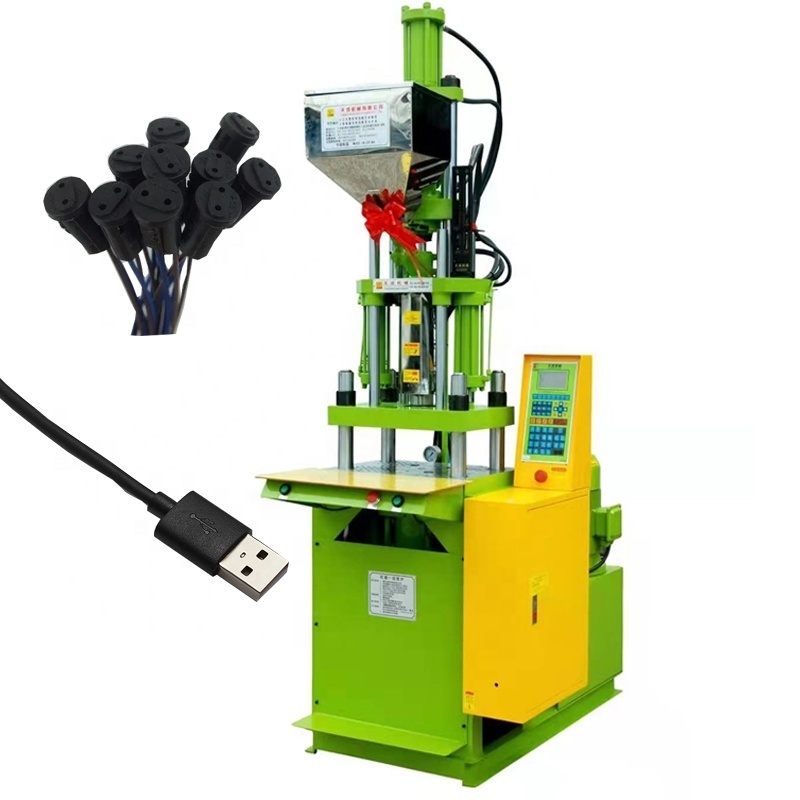

Vertical Plastic Injection Moulding Machine
1. Vertical Clamping/Vertical injection molding, suitable for small insert molding such as electrical plugs and electronic
parts
2. 3/4 section temperature control, and stepless adjustments for injection pressure/injection speed/back pressure, more suitable for the injection of precision plastic parts
3. Quick lock mode/low voltage slow closing mode, automatically open the mold when the machine is abnormal. These safety designs protect the mold well.
4. Fix the down mold and move the upper mold, this wording way is good for positioning the inserts in the mold. Meanwhile,hydraulic ejection make it convenient to take out the finished product from the mold.
parts
2. 3/4 section temperature control, and stepless adjustments for injection pressure/injection speed/back pressure, more suitable for the injection of precision plastic parts
3. Quick lock mode/low voltage slow closing mode, automatically open the mold when the machine is abnormal. These safety designs protect the mold well.
4. Fix the down mold and move the upper mold, this wording way is good for positioning the inserts in the mold. Meanwhile,hydraulic ejection make it convenient to take out the finished product from the mold.
Detail Images
|
screw diameter
|
22mm
|
|
screw speed
|
0-150r/min
|
|
injection rate
|
90mm
|
|
clamping force
|
15t
|
|
weight
|
600kg
|
|
power
|
2.2kw
|
|
Injection pressure
|
1417mpa
|
Application show
