Quick Details
-
Product Name:
-

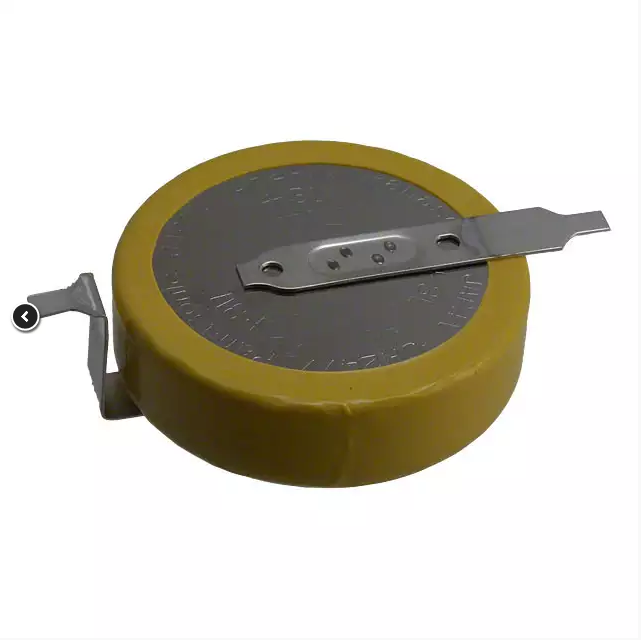

Lithium battery 3v cr2477 with solder tabs pins
-
Battery Type:
-
Lithium manganese dioxide
-
Certificate:
-
RoHS REACH MSDS
-
Weight:
-
10.5g
-
Recommended Continuous Drain:
-
0.4mA
-
Recommended Pulse Drain:
-
25mA
-
Shelf life:
-
5 years
Quick Details
-
Brand Name:
-
JBWCELL
-
Model Number:
-
CR2477
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Lithium battery 3v cr2477 with solder tabs pins
-
Battery Type:
-
Lithium manganese dioxide
-
Certificate:
-
RoHS REACH MSDS
-
Weight:
-
10.5g
-
Recommended Continuous Drain:
-
0.4mA
-
Recommended Pulse Drain:
-
25mA
-
Shelf life:
-
5 years
Lithium battery CR-2477/F2N with solder tabs pins
Product Description
| Battey Type | Lithium battery 3v cr2477 with solder tabs pins | ||||||||||||
| Brand | JBWCELL or OEM | ||||||||||||
| Model | CR-2477/F2N | ||||||||||||
| Size | 24.5*7.7mm | ||||||||||||
| Voltage | 3V | ||||||||||||
| Capacity | 1000mAh | ||||||||||||
| Shelf Life | 5 years | ||||||||||||
| Chemical System | Lithium manganese dioxide button battery (Non-Hg, Non-Cadmium) | ||||||||||||
| Certifications | RoHS SGS REACH MSDS | ||||||||||||
| Description | 3V Lithium manganese dioxide button battery | ||||||||||||
| Storage Performance | After 12 months storage at specified conditions, discharge capacity should be no less than 80% of the original discharge capacity. | ||||||||||||
| Package | Tray bulk, blister card, shrink, box, clamshell. | ||||||||||||
| Shipping | 3-20 working days | ||||||||||||
Related Products
| Model | Voltage(V) |
Norminal Capacity
(mAh) |
Dimension
(mm) |
Weight
(g) |
Recommended Continuous Drain(mA) | Recommended Pulse Drain(mA) |
| CR927 | 3 | 30 | 9.5*2.7 | 0.8 | 0.1 | 5 |
| CR1025 | 3 | 30 | 10*2.5 | 0.8 | 0.1 | 5 |
| CR1130 | 3 | 60 | 11.5*3.0 | 1 | 0.1 | 5 |
| CR1212 | 3 | 18 | 12.5*1.2 | 0.5 | 0.05 | 5 |
| CR1216 | 3 | 26 | 12.5*1.6 | 0.7 | 0.1 | 5 |
| CR1220 | 3 | 36 | 12.5*2.0 | 0.8 | 0.1 | 5 |
| CR1225 | 3 | 50 | 12.5*2.5 | 1 | 0.1 | 5 |
| CR1530 | 3 | 90 | 15*3.0 | 1.5 | 0.1 | 8 |
| CR1616 | 3 | 50 | 16*1.6 | 1.2 | 0.1 | 5 |
| CR1620 | 3 | 70 | 16*2.0 | 1.4 | 0.1 | 5 |
| CR1625 | 3 | 90 | 16*2.5 | 1.4 | 0.1 | 8 |
| CR1632 | 3 | 125 | 16*3.2 | 2.3 | 0.1 | 5 |
| CR2016 | 3 | 80 | 20*1.6 | 1.6 | 0.1 | 10 |
| CR2020 | 3 | 120 | 20*2.0 | 2 | 0.1 | 10 |
| CR2025 | 3 | 150 | 20*2.5 | 2.5 | 0.2 | 15 |
| CR2032 | 3 | 230 | 20*3.2 | 3.1 | 0.3 | 15 |
| CR2050 | 3 | 300 | 20*5.0 | 4.2 | 0.2 | 18 |
| CR2320 | 3 | 130 | 23*2.0 | 3 | 0.2 | 15 |
| CR2325 | 3 | 180 | 23*2.5 | 3.5 | 0.2 | 15 |
| CR2330 | 3 | 250 | 23*3.0 | 4 | 0.3 | 15 |
| CR2335 | 3 | 330 | 23*3.5 | 5 | 0.3 | 15 |
| CR2354 | 3 | 530 | 23*5.4 | 6.3 | 0.3 | 20 |
| CR2430 | 3 | 280 | 24.5*3.0 | 4.3 | 0.4 | 20 |
| CR2450 | 3 | 550 | 24.5*5.0 | 6.2 | 0.4 | 25 |
| CR2477 | 3 | 1000 | 24.5*7.7 | 10.5 | 0.4 | 25 |
| CR3032 | 3 | 500 | 30*3.2 | 7.1 | 0.4 | 25 |
Battery Holder
Packaging & Shipping
Packing:
Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.
Shipping:
Leadtime is 3-20 working days for normal orders.
Our Services
1. We provide various type single cell battery.
2. Battery assembly supported,battery with solder tabs,wires and connectors,with PCM,battery pack customization available.
3. OEM, ODM & Label service.
4. Warranty: 3 years.
5. Good after-sale service.
6. Our products range widely from world wide brand battery, 3V Lithium primary battery, li-ion battery, li-ion battery pack, li-polymer battery, Ni-Mh Ni-Cd battery, Lithium Thionyl Chloride battery, Alkaline battery, Silver Oxide battery, Zinc-Air battery, LiFePO4 battery. Battery accessories such as battery holder, battery charger, battery cap, red steel paper etc.
Trade Term
1. Price term: FOB (Shenzhe/Guangzhou/HongKong/Shanghai), Ex-works, CIF, C&F.........
2. Payment term: 30% TT in advance and the balance 70% against copy of B/L, or 30% TT in advance and the balance before shipment, or 30% TT and 70% LC at sight.
3. Delivery time: If JBWCELL logo, 3-15 days after getting deposite. If OEM, about 20-25 working days after receiving deposite and all the design.
4.Brand: JBWCELL or OEM
5.MOQ: No brand or JBWCELL Logo,NO MOQ. If OEM, 10000pcs.
6.Shelf Life: 5 years
