Quick Details
-
Max. Lifting Height:
-
3m
-
Span:
-
2.5-8m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DOWELL
-
Weight (KG):
-
2000 kg
-
Product name:
-

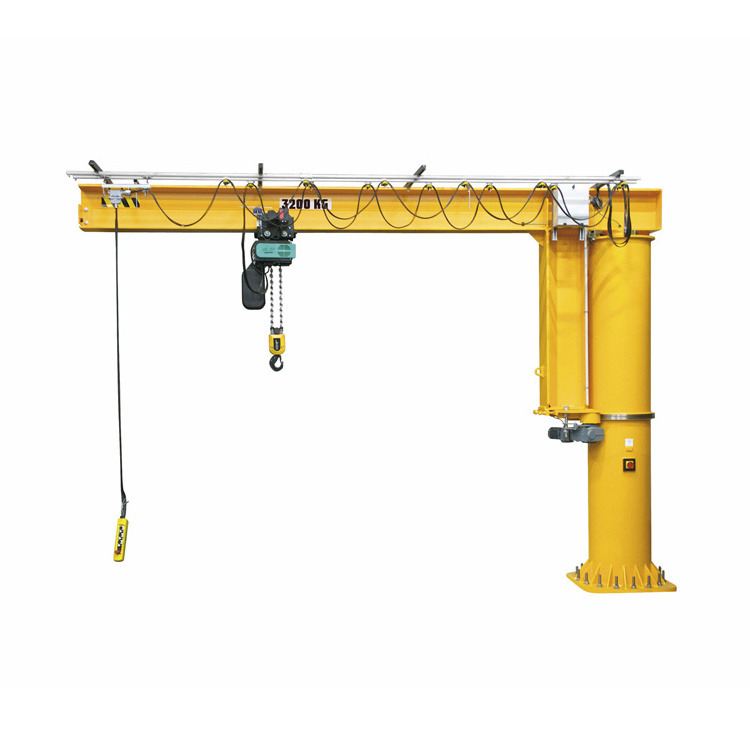

great design 360 degree rotation 2ton traveling jib wall crane
-
Type:
-
Pillar JIB Crane
-
Rated load lifting capacity:
-
1~10ton
-
Max. lifting hight:
-
3m
-
Rotation angle:
-
360
-
Rotation speed:
-
0.75r/min
-
Operating Environment:
-
-25 ~40 Degree
-
Cantilever length:
-
2.5~8m
-
Control method:
-
Electric Operated
-
Working duty:
-
A3/A4
Quick Details
-
Application:
-
Warehouse
-
Rated Loading Capacity:
-
10T
-
Rated Lifting Moment:
-
50KN
-
Max. Lifting Height:
-
3m
-
Span:
-
2.5-8m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DOWELL
-
Weight (KG):
-
2000 kg
-
Product name:
-
great design 360 degree rotation 2ton traveling jib wall crane
-
Type:
-
Pillar JIB Crane
-
Rated load lifting capacity:
-
1~10ton
-
Max. lifting hight:
-
3m
-
Rotation angle:
-
360
-
Rotation speed:
-
0.75r/min
-
Operating Environment:
-
-25 ~40 Degree
-
Cantilever length:
-
2.5~8m
-
Control method:
-
Electric Operated
-
Working duty:
-
A3/A4
Products Description
Application
Product Paramenters
|
Model
|
Unit
|
BZD0.5
|
BZD1
|
BZD2
|
BZD3
|
BZD5
|
||||
|
Rated capacity
|
t
|
0.5
|
1
|
2
|
3
|
4
|
||||
|
Max. Lifting height
|
m
|
3
|
|
|
5
|
5
|
||||
|
Max. working range
|
m
|
4
|
|
|
5
|
5
|
||||
|
Max. turning radius
|
m
|
5
|
|
|
4.5
|
4.5
|
||||
|
Max. lifting torque
|
tm
|
3
|
5.2
|
8.5
|
12.2
|
18.8
|
||||
|
Rotation angle
|
°
|
≤360
|
|
|
|
|
||||
|
Lifting speed
|
m/min
|
8; 8/0.8
|
|
|
|
|
||||
|
Trolley travelling speed
|
m/min
|
20
|
|
|
|
|
||||
|
Rotation speed
|
m/min
|
1
|
0.75
|
0.7
|
0.9
|
0.6
|
||||
|
Weight
|
kg
|
1000
|
1150
|
1350
|
3500
|
4500
|
||||
* The specific weight of this product shall be subject to the actual negotiation.
Features and Advantages
unique structure, high safety, reliability, high working efficiency, energy saving and time saving, flexible operation, etc.
* Compact Design
The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improves space utilization rate and narrows hook operation distance to the maximum intently. The best material handling solution for your applications.
* Smooth, Fast Loading, excellent performance
Stepless frequency conversion control system is installed to the crane and trolley, which make pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of swing of loads.
* Safer, Reliable, Using Free Maintenance Design
Best technology is adopted which makes the frequent operations safe and efficient.
Perfect braking systems can largely improves pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.
Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.
Perfect braking systems can largely improves pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.
Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.
Details Images
Our Advantages
Product packaging
1.Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the
transportation.
3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the
transportation.
3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
