Quick Details
-
Brand Name:
-
Ruiting
-
Voltage:
-
220V/380V 50Hz
-
Power:
-
6kw
-
Dimension(L*W*H):
-
2800*1400*1800mm
-
Weight:
-
2800kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Automatic Paper Cup Machine Paper Cup
-
Color:
-
Customized Color
-
Size:
-
3-12oz(Mould changeable) Suitable paper
-
Working Air Source:
-
0.4-0.5m3/min
-
Paper Cup Size:
-
3-12Oz
-
Speed:
-
60-75 pcs/min
-
Paper meterial:
-
single or double PE coating paper
Quick Details
-
Production Capacity:
-
60 pcs/Min
-
Processing Type:
-
paper products forming machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ruiting
-
Voltage:
-
220V/380V 50Hz
-
Power:
-
6kw
-
Dimension(L*W*H):
-
2800*1400*1800mm
-
Weight:
-
2800kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Automatic Paper Cup Machine Paper Cup
-
Color:
-
Customized Color
-
Size:
-
3-12oz(Mould changeable) Suitable paper
-
Working Air Source:
-
0.4-0.5m3/min
-
Paper Cup Size:
-
3-12Oz
-
Speed:
-
60-75 pcs/min
-
Paper meterial:
-
single or double PE coating paper
Making Double PE coated paper cups, need to buy an air compressor

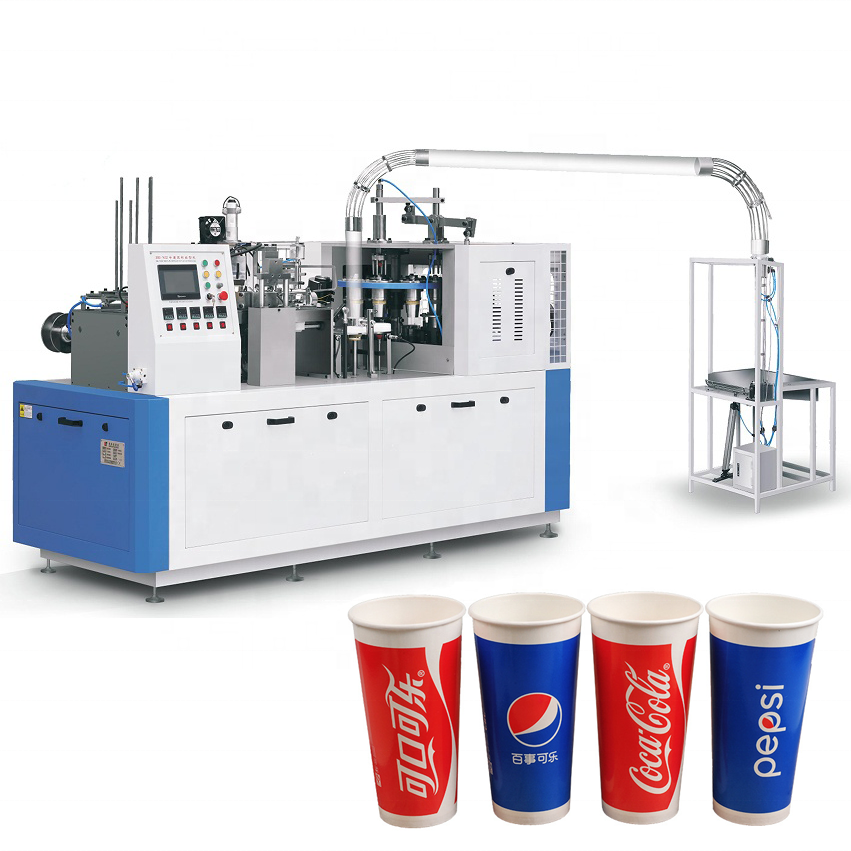

Our newly designed paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.
|
A:Cup top diameter
|
min 45- max 90mm
|
|
B:Cup bottom diameter
|
min 35-max 75mm
|
|
C:Cup height
|
min30-max115mm
|
|
D:bottom knurling height
|
min4 - max12mm
|
|
E:top curling diameter
|
minΦ2.5-maxΦ3
|
|
Model
|
Automatic Paper Cup Machine
|
|
Paper Cup Size
|
3-120z(Mould changeable)
|
|
Suitable paper weight
|
180-300g
|
|
Productivity
|
60-75 Pcs /Min
|
|
Power Source
|
220V/380V 50Hz
|
|
Total Power
|
6 KW
|
|
Total Weight
|
2800KG
|
|
Package Size(L x W x H)
|
2800x1600x1800mm(LxWxH)
|
|
Working Air Source
|
0.4-0.5m3/min
|
