Quick Details
-
Brand Name:
-
Snow-Sea
-
Use:
-
outdoor
-
Warranty Time:
-
2 years
-
Network:
-
FTTH
-
Material:
-
PC
-
Port:
-
8
-
Lateral pressure-resistance:
-
500N
-
Shock-resistance:
-
750N
-
Item:
-
indoor and outdoor
-
Installation:
-
pole-mounted wall-mounted
-
Certification:
-
RoHS
Quick Details
-
Type:
-
Fiber optic distribution box
-
Model Number:
-
ODB-8-M, optical splitter box
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Snow-Sea
-
Use:
-
outdoor
-
Warranty Time:
-
2 years
-
Network:
-
FTTH
-
Material:
-
PC
-
Port:
-
8
-
Lateral pressure-resistance:
-
500N
-
Shock-resistance:
-
750N
-
Item:
-
indoor and outdoor
-
Installation:
-
pole-mounted wall-mounted
-
Certification:
-
RoHS

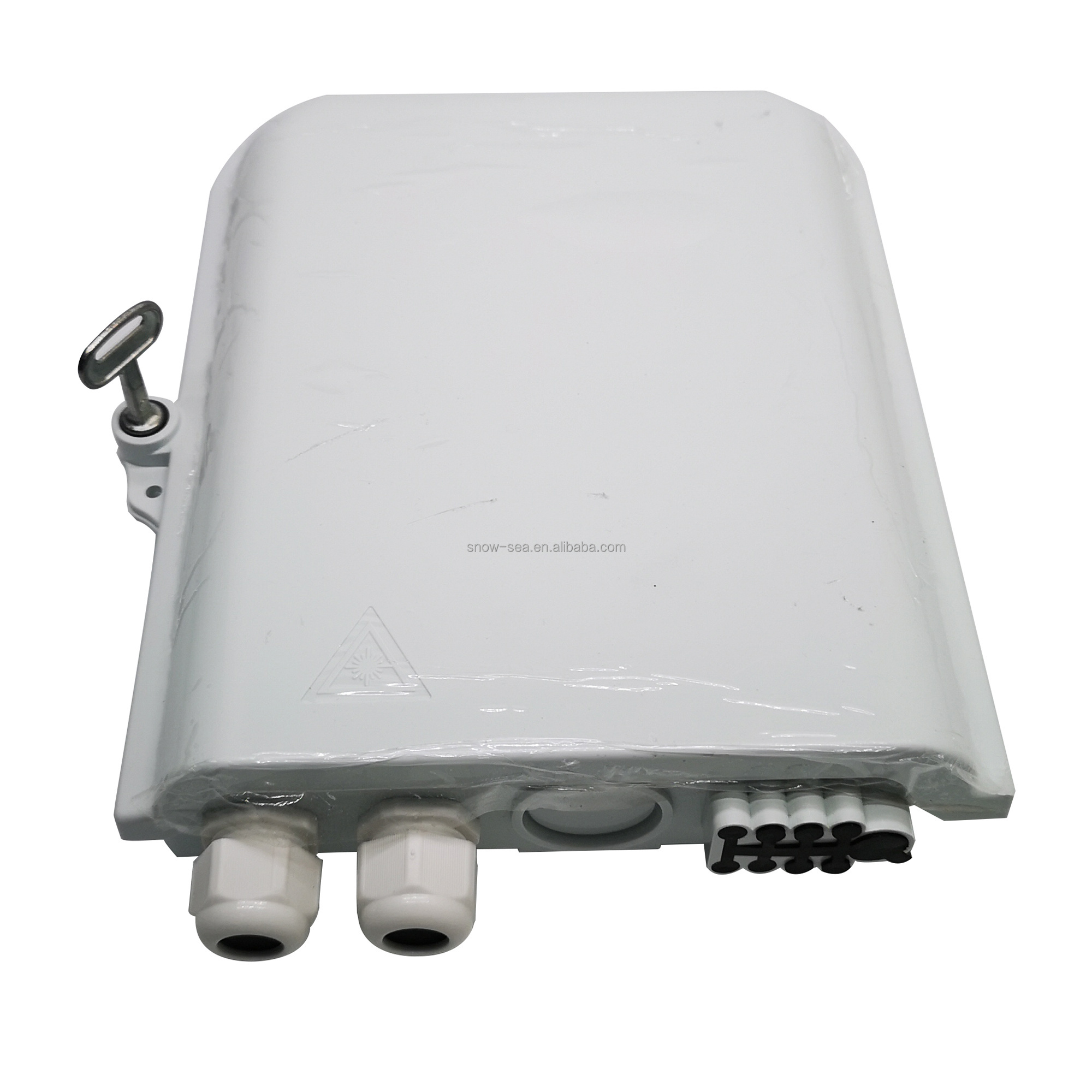

2 In 8 Out
ABS+PC Material Waterproof 8 Core FTTH
Optic
al
Distribution
Box
Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting and distribution can be done in this box, and in meanwhile, it provides solid protection and management for the FTTH network building.
Features
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP 65 .
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5
. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
6.
The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain;
7.
For indoor and outdoor wall mounted or pole mounted.
8.
Box of body use "lock type" structure: Box of body switching of simple, convenient, with a lock function
9.
Lateral pressure-resistance: 500N
10.
Shock-resistance: 750N
12.
Working temperature: -40 ~ +80
℃
Specification
|
Product Name |
8 Cores Optical Distribution Box (Optical Splitter Box) |
|
Application |
Wall-mounted indoor, Pole-mounted outdoor |
|
Dimension |
2 4 *2 0 * 5 cm (Length/Width/Height) |
|
Weight |
0.9 kg |
|
Product Function |
It can internally installed 1pcs 1*8 LGX cas s ette type PLC optical splitter , O r 1pcs 1*8 (or 2pcs 1*4) mini stainless steel tube type optical splitter and 8 pcs SC (or LC duplex) fiber optic adapter |
|
Product Material |
High quality PC+ ABS material |
Dimensions and Capability
Dimensions: 2
40
mm x 200mm x
5
0mm (W x H x D)
Splitter Capacity: 1pcs 1*8 LGX cas s ette type PLC optical splitter , or 1pcs 1*8 (or 2pcs 1*4) mini stainless steel tube type optical splitter .
Adapter Capacity: 8pcs SC/FC simplex adapters or LC duplex adapters.
Cable Entrance: 2 and 1 spare port
Cable Exit:
8
simplex
FTTH
drop cables
patch cord.
Application
Optical LAN & WAN & CATV
FTTH
PON Networks
Broadband High-bit rate data transmission
Active device terminations
and
Testing instruments
Optical fiber communication networks
Optical Signal Distribution
