Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YGS
-
Model Number:
-
YGS elevator controller
-
Type:
-
Elevator Parts
-
Card type:
-
MF1 card
-
Applicable:
-
Hotel elevator access control
-
Card detecting distance:
-
10-50 mm
-
Model:
-
Uncontrolled mode/Floor control/Floor & time control
-
Working temperature:
-
-10~70℃
-
Humidity:
-
5%~95%
-
Power supply:
-
12VDC
-
Certificates:
-
ISO9001 CE
-
Current:
-
10000 mA
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
technical support
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YGS
-
Model Number:
-
YGS elevator controller
-
Type:
-
Elevator Parts
-
Card type:
-
MF1 card
-
Applicable:
-
Hotel elevator access control
-
Card detecting distance:
-
10-50 mm
-
Model:
-
Uncontrolled mode/Floor control/Floor & time control
-
Working temperature:
-
-10~70℃
-
Humidity:
-
5%~95%
-
Power supply:
-
12VDC
-
Certificates:
-
ISO9001 CE
-
Current:
-
10000 mA
Hotel elevator lift door controller board price
Product features:
◊ Card type:MF1 card;
◊ Card detecting distance:10—50mm;
◊ Sharing same management software with hotel lock;
◊ 3 control modes:uncontrolled mode, floor control, floor & time control;
◊ Access control to certain floors can be cancelled during specific periods;
◊ Over 2000 entries record;

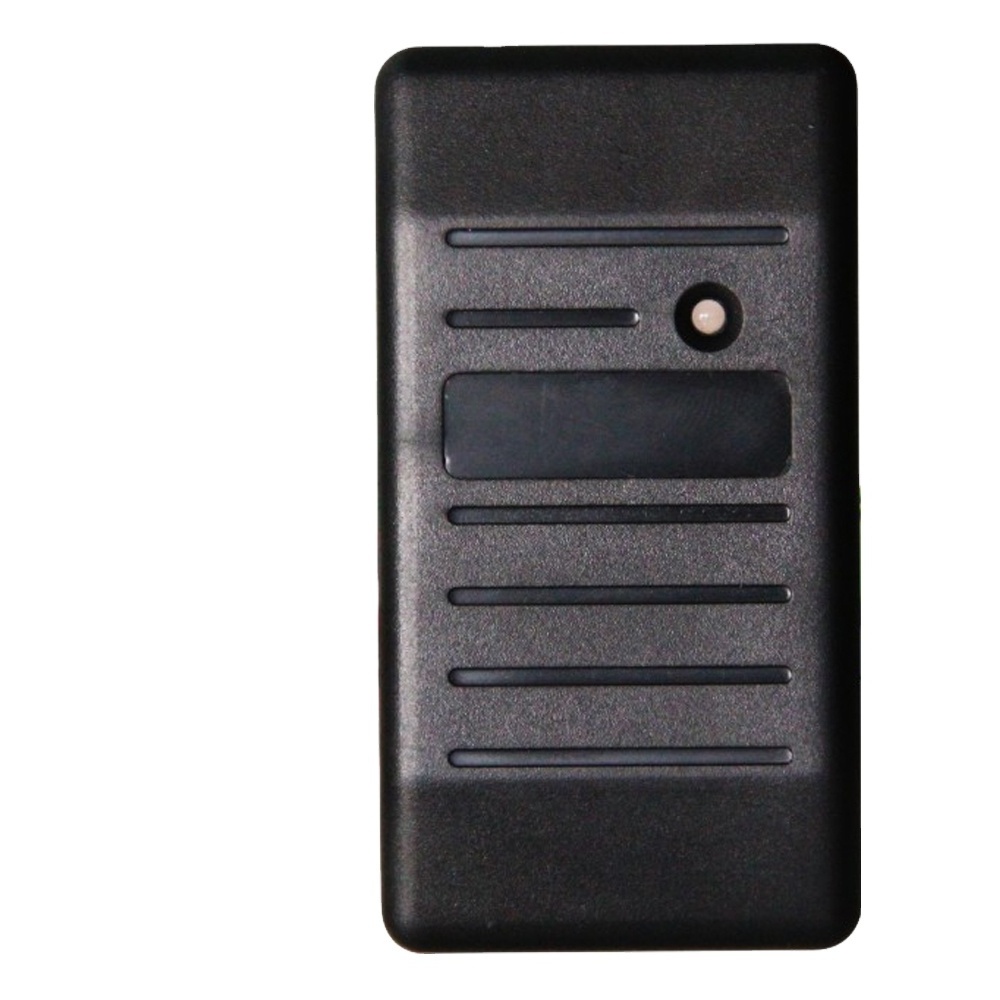

◊ Mini External reader is available for neat lift panel;
◊ Uncontrolled mode and access control mode can be interchanged by reading cards;
Technical parameters:
| Power supply | 12V DC |
| Current | 1000mA |
| Card type | MF1 card |
| Detecting distance | 10—50mm |
| Input | N/A |
| Output |
16 groups of normally-closed (NC) contacts 16 groups of normally-open (NO) contacts |
| Working environment |
Working Temperature:-10~70℃ Storage Temperature:-25 ~125 ℃ Humidity:5% ~95% |
PCB wiring diagram:
System Composition
Energy Saving Switch
Energy saving switch allows maximum energy savings without sacrificing guest comfort.
Whenever the guests leave their rooms, they will take out the card from the switch and
the room power will be cut down automatically. Switch card and room card can be the
same card. This would greatly help hotels shorten the pay-back period and prevent the
fire-disaster.
Wall Reader For Common Areas
This access controller provides access control on common areas, i.e.parking lot,
sauna room, conference room, office etc. Holding one keycard, customers and
staffs can get access to both common areas and guest rooms.
