Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shangshi
-
Voltage:
-
Customizable, Customizable
-
Dimension(L*W*H):
-
3950*2100*2300mm
-
Weight (KG):
-
3000 kg
-
Raw material:
-
Crushed Stone
-
Product Name:
-
Fly ash automatic press concrete cement block making machine
-
Keywords:
-
cement bricks machine making automatic
-
Pallet size:
-
850*550*30mm
-
Color:
-
Designated Color
-
Worker:
-
3-4 Workers
-
Molding cycle:
-
15-20s
-
Brick type:
-
Hollow+Interlocking+Paver+Curbstone
-
Advantage:
-
High Efficiency
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Other
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
6000-35000 pcs/8h
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shangshi
-
Voltage:
-
Customizable, Customizable
-
Dimension(L*W*H):
-
3950*2100*2300mm
-
Weight (KG):
-
3000 kg
-
Raw material:
-
Crushed Stone
-
Product Name:
-
Fly ash automatic press concrete cement block making machine
-
Keywords:
-
cement bricks machine making automatic
-
Pallet size:
-
850*550*30mm
-
Color:
-
Designated Color
-
Worker:
-
3-4 Workers
-
Molding cycle:
-
15-20s
-
Brick type:
-
Hollow+Interlocking+Paver+Curbstone
-
Advantage:
-
High Efficiency

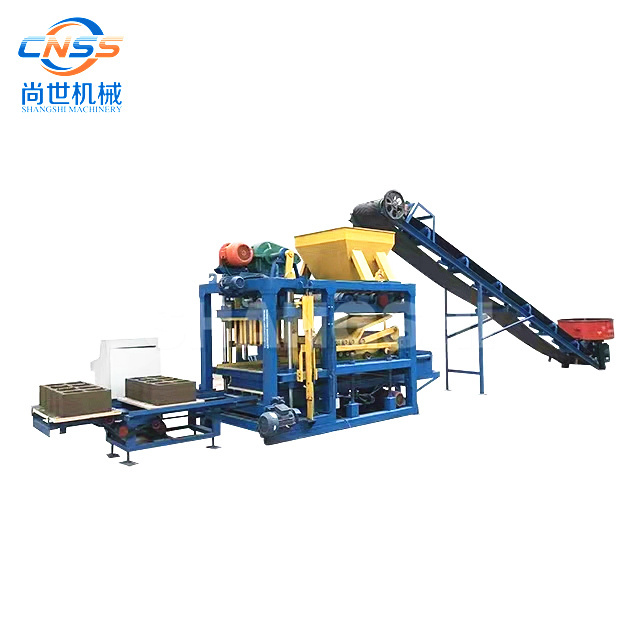

Fly ash bricks maker Hot sale QT4-20 automatic press concrete cement block making machine
Fly ash bricks maker Hot sale QT4-20 automatic press concrete cement block making machine by adopting the combination of vibration between platform and the upper die,the produced block has the advantages of high compactness,high strength,beautiful appearance.Regular vibration,automatic lifting,simple operation and high production efficiency,it's a better choice for users.
QT4-20 Concrete block making machine Product Parameter |
|||
| Dimension(mm) | Weight(kg) | Voltage | Corollary Equipment |
| 2700*1900*2100 | 3000 | Customizable | Conveyor and Mixer |
| Daily Capacity | |||
| Block Size(mm) | Molding Cycle | Number of Per Mold | Capacity/8 Hours |
| 400*200*200 | 20s | 4 Pcs/Mold | 5700 Pcs |
| 400*150*200 | 20s | 5 Pcs/Mold | 7200 Pcs |
| 400*100*200 | 20s | 7 Pcs/Mold | 10000Pcs |
| 240*115*90 | 20s | 15Pcs/Mold | 21600Pcs |
| 240*115*53 | 20s | 24Pcs/Mold | 34500Pcs |
Concrete And Cinder Block Hollow Block Hallow Moulding Machine Cement Concrete Masonry Machine,which is used of raw materials to carry out the scientific ratio,add water and mixing.The brick making machine can pressure highly cement brick,hollow block and colorful road brick,which need not sintering and can use with short time drying.It possess the features of simple operation,low investment and large-scale production and is one of the ideal models in current market,so it is the first choice to customers.
Block Raw Material of Fly ash bricks maker Hot sale QT4-20 automatic press concrete cement block making machine
Brick size and shape can be designed as your request:
1.Fly ash bricks maker Hot sale QT4-20 automatic press concrete cement block making machine is four columns oriented,with vibrating electrical machine.During working time,the lower vibrostand and upside pressure head vertically vibrate synchronously,make the raw materials dense.
2.Timing vibration,automatically lift mold,with hopper and conveyor can save manpower.
3.Machine’s body is made from profiles,strong earthquake resistance,and suspension use the"spring vibration isolation"and directional vertical vibration technology to reduce power consumption as well as loss of mould.
4.The pressure head is longitudinal traverse for convenient to feeding,maintaining and washing.
5.The plate vibrate with mold box synchronously,without impact force and with a long life.
6.Multi –usage,with a variety of mold can produce the block with various specifications.Easy and convenient.
Other Details of Fly ash bricks maker Hot sale QT4-20 automatic press concrete cement block making machine:
Packaging Details of Fly ash bricks maker Hot sale QT4-20 automatic press concrete cement block making machine
1.Standard export packing or according to customer's requirements.
2.If bulk purchasing,we will use standard container.
Delivery Details of Fly ash bricks maker Hot sale QT4-20 automatic press concrete cement block making machine
1.Lead time for mass production:within 3 days afterreceived 30% deposit.
2.Delivery date:within 5 days after received balance payment.
3.After the confirmation of the order,the buyers should pay 30% deposit,the rest can be pay off in two weekdays before shipping the goods off.
