- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
AY
-
Model Number:
-
AY-01
-
Warranty:
-
12 Months
-
Key Words:
-
Tire Bead Breaker
-
Function:
-
hydraulic tire Breaker
-
Application:
-
stripping tire steel ring of truck,engineering truck and agricultural
-
Quantity of oil:
-
255cc
-
Net weight:
-
17kgs
-
Pressure Range:
-
40-150psi (2.8 to 10.3Bar)
-
Max. wheel width:
-
51"
-
Size:
-
55*40*25cm
-
Color:
-
Customer Request
-
Advantage:
-
Weighted extension hook
Quick Details
-
Motor Power:
-
0.75kw
-
Operating Pressure:
-
70Mpa
-
Power Supply:
-
Air Motor
-
Place of Origin:
-
China
-
Brand Name:
-
AY
-
Model Number:
-
AY-01
-
Warranty:
-
12 Months
-
Key Words:
-
Tire Bead Breaker
-
Function:
-
hydraulic tire Breaker
-
Application:
-
stripping tire steel ring of truck,engineering truck and agricultural
-
Quantity of oil:
-
255cc
-
Net weight:
-
17kgs
-
Pressure Range:
-
40-150psi (2.8 to 10.3Bar)
-
Max. wheel width:
-
51"
-
Size:
-
55*40*25cm
-
Color:
-
Customer Request
-
Advantage:
-
Weighted extension hook

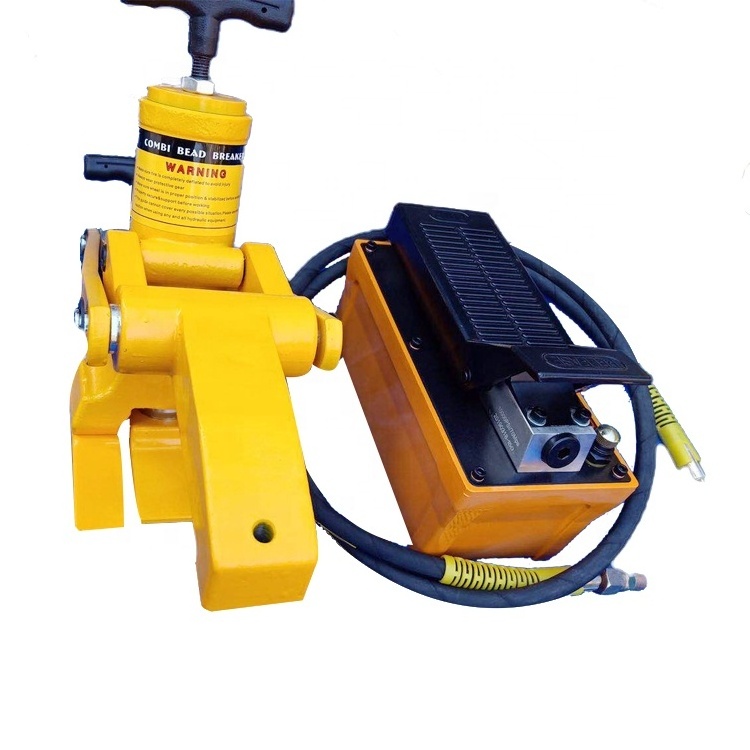

2PCS Tire Changer Bead Clamp Manual Portable Hand Tire Changer Bead Breaker Fine
The bead breaker i
s used on all types of rims except 5-piece earthmover rims, activated by air hydraulic pumps. And it can be applied in any 1, 2 and most 3 piece 2-5-10 hole budd and all tubeless truck tires rims, including some new style wheels.
Additionally, the working range of our bead breaker is up to 5".
Keep both hands on the handles and be away from the clamping jaw or breaker tongue. Make certain that the tool is properly aligned on the rim before allowing the bead breaking action. Do not continue to operate the air/ Hydraulic pump once the breaker rod is completely extended. Failure to comply with these instructions could result in personal injury or damage to the equipment.In a word, the optional air/hydraulic pump is capable of generating fluid pressure up to 10,000 PSI. It is ideal for use with truck,
farm, tractor, garder, combine, and skidder tires.
Caution
Make certain that the teeth are slipping in between the rim and the bead. If not, depress the RELEASE end of the pump pedal and realign the tool.If the tool is not positioned correctly, extending the breaker rod may damage the tool. Continue pumping until the tongue of the Bead Breaker pushes the bead free of the rim.
Depress the RELEASE end of the pump pedal.
Additionally, the working range of our bead breaker is up to 5".
Keep both hands on the handles and be away from the clamping jaw or breaker tongue. Make certain that the tool is properly aligned on the rim before allowing the bead breaking action. Do not continue to operate the air/ Hydraulic pump once the breaker rod is completely extended. Failure to comply with these instructions could result in personal injury or damage to the equipment.In a word, the optional air/hydraulic pump is capable of generating fluid pressure up to 10,000 PSI. It is ideal for use with truck,
farm, tractor, garder, combine, and skidder tires.
Caution
Make certain that the teeth are slipping in between the rim and the bead. If not, depress the RELEASE end of the pump pedal and realign the tool.If the tool is not positioned correctly, extending the breaker rod may damage the tool. Continue pumping until the tongue of the Bead Breaker pushes the bead free of the rim.
Depress the RELEASE end of the pump pedal.
Product details
|
Rated working
|
700bar
|
|
Max open
|
19cm
|
|
Tire changer grip width
|
10cm
|
|
Inlet pressure
|
700bar
|
|
GW
|
30kg
|
|
NW
|
28kg
|
|
Size
|
51*14.5*32
|
|
Package size
|
60*40*22
|
