Twist lock type Intelligent Timing Dimmer Photocontrol day night sensor switch street light photocelltwist lock photocontrol

Basic function

. W ith light control , timing , dimmer functions

. High-power relay, strong load capacity

. C lose (and open) without volts , suitable for various types of lamp loads

. Built-in 16-segment working mode program, convenient to choose

. Optical attenuation compensation function s provides stable brightness for lighting and extends lamp life

. The dimming signal 0-10V or PWM is output separately from the highly stable gold-plated contacts

. Comply with NEMA system and ANSI C136. 41 -201 3 Twist Lock standard requirements

S pecification

1. T urn on :10-30lux, Off<65lux, or on user ’ s requirement

2. soft start ( Gradually brightens and darkens ), the period is about 10seconds

3. O perating Voltage: 85-305v, 50/60Hz;  120-347V 50/60Hz;

4. load capacity : 15A

5. Relay:30A

6. Fail Model: Fail On or Fail Off

7. S ensor type: Silicon Photodiode

8. Operating Temperature :-40~70°C

9. IP Level : IP54, IP65, IP66

10.Surge Protection(MOV):10KV, 450J(or on customer ’ s requirement)

11. Insulation Voltage:2500VAC

12.Guaranteed Operation:10000 operations minimum

13. Timing D imming P rogram: preset 16 segments of dimming program, users can choose a segment according to their needs

14. Dimming S ignal: 0--10VDC OR 10V PWM  40mA max( inhalation )

15. Light attenuation compensation: When this function is enabled, the light controller will automatically reserve part of the lamp power and automatically compensate for the attenuation of the light in 10 years (the default is 30%, which can be determined according to user requirements) to maintain stable lighting brightness on the road surface.

Model function list

Table 1

Product S tructure and W iring

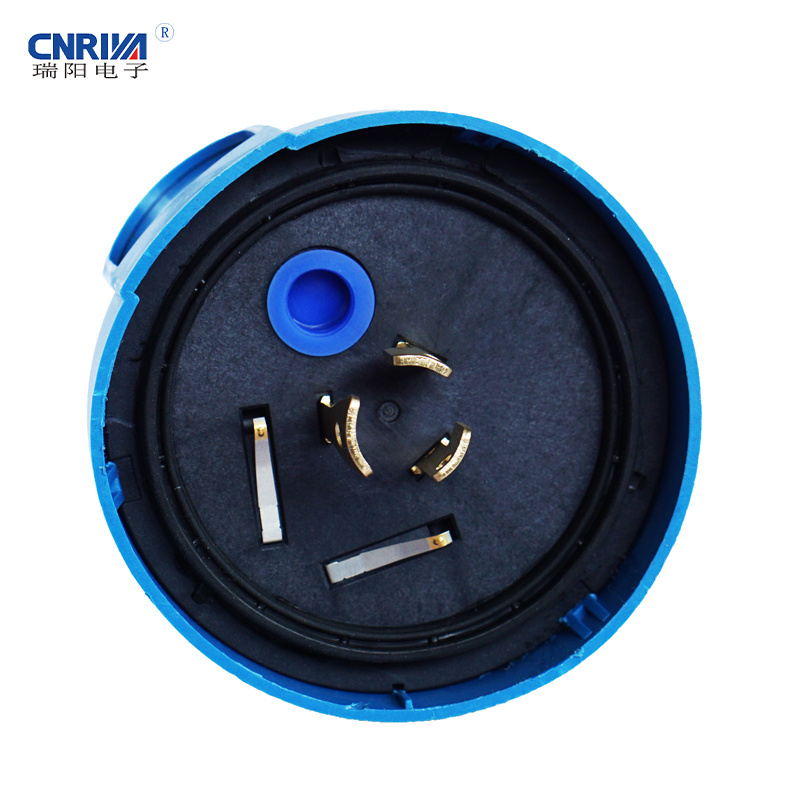

A dial switch is set on the bottom plate to select the working mod el
