Quick Details
-
Power (kW):
-
0.75
-
Range of Spindle Speed(r.p.m):
-
20 - 60 r.p.m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Tencan
-
Voltage:
-
220 voltage
-
Dimension(L*W*H):
-
1050*550*900mm
-
Weight (KG):
-
125 KG
-
Product name:
-
roll ball grinder
-
Model:
-
QM-30
-
Max capacity:
-
10.5L
-
Feed size:
-
less than 10mm
-
Final size:
-
200-500 mesh
-
Power supply:
-
220V/50Hz Single phase
-
Power:
-
0.75KW
-
Rotation speed:
-
20-60 rpm
-
Delivery time:
-
15-20 working days
Quick Details
-
Output (kg/h):
-
1 - 10.5 kg/h
-
Feeding Size (mm):
-
1 - 10 mm
-
Output Size (mesh):
-
200 - 500 mesh
-
Power (kW):
-
0.75
-
Range of Spindle Speed(r.p.m):
-
20 - 60 r.p.m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Tencan
-
Voltage:
-
220 voltage
-
Dimension(L*W*H):
-
1050*550*900mm
-
Weight (KG):
-
125 KG
-
Product name:
-
roll ball grinder
-
Model:
-
QM-30
-
Max capacity:
-
10.5L
-
Feed size:
-
less than 10mm
-
Final size:
-
200-500 mesh
-
Power supply:
-
220V/50Hz Single phase
-
Power:
-
0.75KW
-
Rotation speed:
-
20-60 rpm
-
Delivery time:
-
15-20 working days
Recommend Products
Products Description

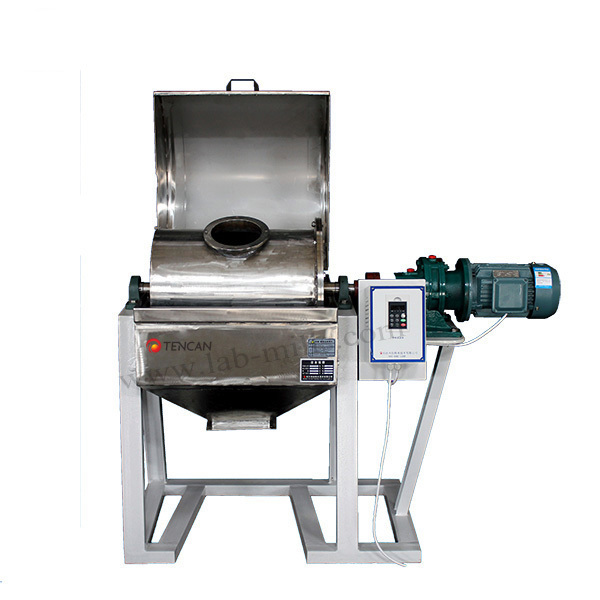

China Tencan QM-30 Powder Making Roll Ball Grinder, Rolling Grinder Machine
|
Model No.
|
Cylinder
Volume (L) |
Maximum Capacity
(L) |
Rotate Speed
(rpm) |
Power Supply
(V/Hz) |
Power
(KW) |
Optional Cylinder or Liners
|
Feed Size
(mm) |
Output
Particle Size (mesh) |
|
QM-30L
|
30
|
10.5
|
20~60
|
220V-50Hz
|
0.75
|
Carbon Steel Cylinder
Stainless SteelCylinder Nylon Liner Corundum Liner Zirconia Liner PU(polyurethane) Liner PTFE Liner |
≤10
|
≥300
|
|
QM-50L
|
50
|
17.5
|
20~50
|
1220V-50Hz
|
1.5
|
|
≤10
|
≥300
|
|
QM-100L
|
100
|
35
|
20~45
|
380V-50Hz
|
2.2
|
|
≤20
|
≥300
|
|
QM-200L
|
200
|
70
|
20~40
|
380V-50Hz
|
4
|
|
≤20
|
≥300
|
|
QM-300L
|
300
|
105
|
20~38
|
380V-50Hz
|
5.5
|
|
≤20
|
≥300
|
|
QM-500L
|
500
|
175
|
20~36
|
380V-50Hz
|
7.5
|
|
≤20
|
≥300
|
|
QM-1000L
|
1000
|
350
|
20~34
|
380V-50Hz
|
11
|
|
≤30
|
≥300
|
|
QM-2000L
|
2000
|
700
|
20-34
|
380V-50Hz
|
22
|
|
≤30
|
≥300
|
|
Custom
|
Custom
|
Custom
|
Depends
|
Depends
|
Depends
|
|
≤30
|
≥300
|
Light roll ball mill
is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling machine altar. The machine is preferred equipment for scientific research, teaching, experiment and production due to its advantages such as beautiful design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine, where mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow movement and disperse materials, thus it obtains best effects of grinding. As result, materials are ground into micron powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set working time according to requirement at any time. It saves time and labor, and is easy for operating.
Working Principle of Roll Ball Mill
When roll mill works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity,
they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.
Features of Roll Ball Mill
1. Stable running, high efficiency, low noise and non-pollution
2. All kinds of hard materials can be ground with dry or wet grinding method; the machine is suitable for rough and fine grinding
or can be also applied to mixing materials.
3. The machine is self-equipped with pouring device, and has function of separating powder and ball media automatically,
convenient to output powder.
4. Equipped with safety cover, finest pure degree and non-pollution.
5. Anti-abrasion, high efficiency of grinding.
6. A variety of liner jars in different materials can be selected such as alloyed steel, stainless steel, abrasion-resisting
polyurethane, corundum ceramic, zirconia, and etc. Models of 20-2000L volume are available for customers’ needs.
Available & Matched Accessories
Besides the roll ball mill machines, we have all kinds of mill pots for customer’s option, like stainless steel roll mill jar,
zirconia roll mill jar, corundum mill jar, nylon mill jar, PU mill jar, and etc. We further produce all kinds of stainless steel
or carbon steel roll mill jars with corundum liner, zirconia liner, polyurethane liner, PTFE liner and nylon liner in different
sizes from 30L to 2000L.
Additionally, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, carbon steel
mill balls,tungsten carbide mill balls, etc.
