Quick Details
-
Max.Transformer Capacity(kVA):
-
5 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QIWEI
-
Weight (KG):
-
500
-
Dimension(L*W*H):
-
1520*1250*1500mm
-
Wire Diameter Range (mm):
-
0.03 - 0.4 mm
-
Supply voltage:
-
220v±10% 50HZ
-
Source pressure:
-
0.45-0.7 Mpa
-
Rated power:
-
3KW
-
Winding speed:
-
3000-6000RPM
-
Counting accuracy:
-
±0.01 circle
-
Line type precision:
-
0.01 mm
-
Application:
-
Winding Coil
-
Product name:
-
Transformer Coil Winding Machine
-
Function:
-
Coil Winding Coil Winding Tool
-
Name:
-
Toroidal Taping Machine
Quick Details
-
Max. Load (KG):
-
10 KG
-
Length of Axis (mm):
-
1 mm
-
Center Height (mm):
-
2 mm
-
Max.Transformer Capacity(kVA):
-
5 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QIWEI
-
Weight (KG):
-
500
-
Dimension(L*W*H):
-
1520*1250*1500mm
-
Wire Diameter Range (mm):
-
0.03 - 0.4 mm
-
Supply voltage:
-
220v±10% 50HZ
-
Source pressure:
-
0.45-0.7 Mpa
-
Rated power:
-
3KW
-
Winding speed:
-
3000-6000RPM
-
Counting accuracy:
-
±0.01 circle
-
Line type precision:
-
0.01 mm
-
Application:
-
Winding Coil
-
Product name:
-
Transformer Coil Winding Machine
-
Function:
-
Coil Winding Coil Winding Tool
-
Name:
-
Toroidal Taping Machine
Product Paramenters
|
Product Description
|

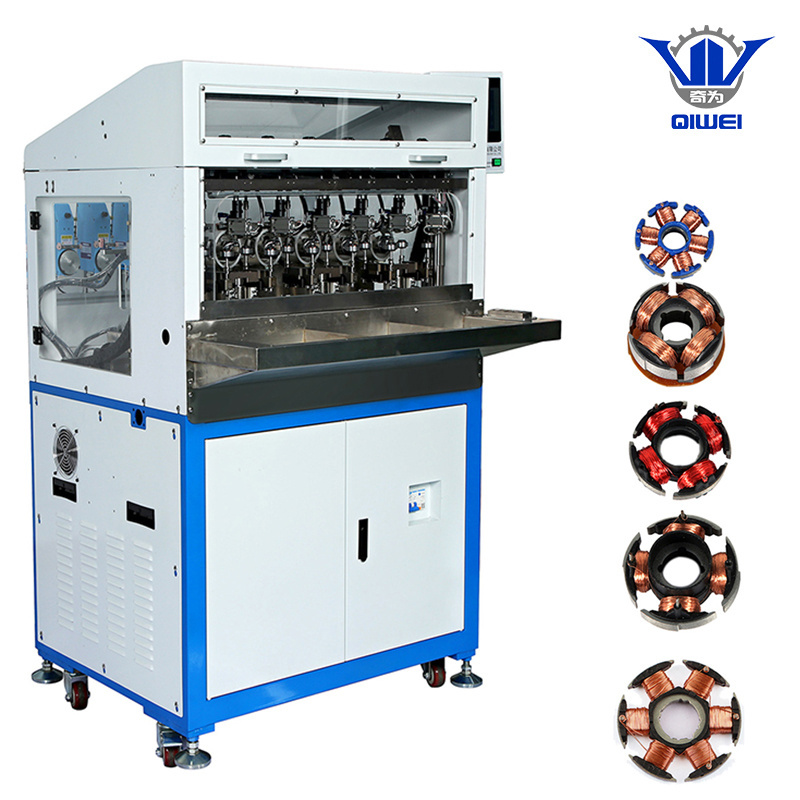

Model QMW-6210 winding machine is a 12 stations automatic winding machine,it contain a new proprietary technology developed by Qiwei, it including 6 stations for winding and 6 stations for loading and unloading.It also can store more than 50 different specifications winding way. In addition,in order to provide more kinds of winding ways, it can change tooling fixture in a short time. Last ,customer can choose their own requirement to adding safety sensor,Pneumatic scissors,etc
|
|
Application
|
Fits for winding heat dissipation fan iron core diameter Φ12 to φ42 AC Cooling Fan Iron Core
|
|
Machine Efficiency Reference
|
Use the outer diameter φ 42 iron core,0.11 wire diameter,500T per pole as an example, about 600 PCS/h
|
