Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KELEVER or OEM
-
Model Number:
-
XB2-BD21
-
Operation type:
-
2 Position Select
-
Mounting Hole Size:
-
22mm
-
Contact configuration:
-
1NO
-
Color:
-
Black
-
Mechanical life:
-
1000000 Times
-
Electrical Life:
-
AC ≥100000 Times
-
Standard:
-
IEC 60947-5-1
-
Brand:
-
KELEVER
-
Usage:
-
Circuit Control
-
Package:
-
Inner Box+Carton
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
3A
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KELEVER or OEM
-
Model Number:
-
XB2-BD21
-
Operation type:
-
2 Position Select
-
Mounting Hole Size:
-
22mm
-
Contact configuration:
-
1NO
-
Color:
-
Black
-
Mechanical life:
-
1000000 Times
-
Electrical Life:
-
AC ≥100000 Times
-
Standard:
-
IEC 60947-5-1
-
Brand:
-
KELEVER
-
Usage:
-
Circuit Control
-
Package:
-
Inner Box+Carton
-
Certification:
-
CE
Product Description

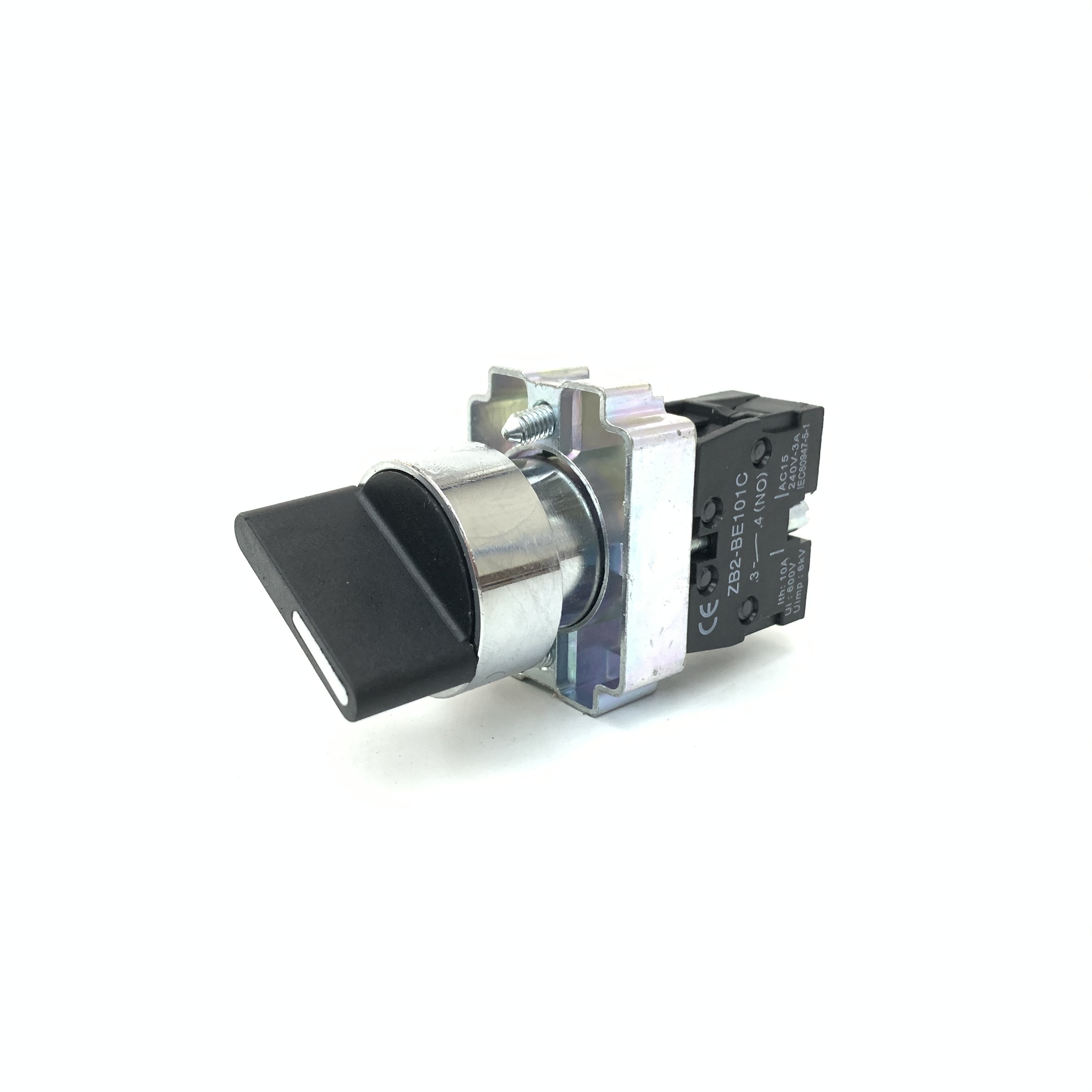

XB2-BD21 22mm 2 position selector push button switch
XB2, XB4, XB5 series Push Buttons are suitable for industrial control circuits with AC 50Hz or 60Hz, rated operating voltage to 380V and DC operating voltage to 250V, and are used for controlling electromagnetic starters, contactors, relays and other electrical circuits.
|
Ui(V):
|
415
|
|
|
|
|
||||
|
Ith(A):
|
10
|
|
|
|
|
||||
|
Ue(V):
|
-
|
380
|
250
|
240
|
125
|
||||
|
Ie(A):
|
AC-15
|
2.5
|
-
|
3
|
-
|
||||
|
|
DC-13
|
-
|
0.27
|
-
|
0.55
|
||||
|
Ambient temperature:
|
-25
o
C~+55
o
C
|
|
Earthquake resistance:
|
<500Hz,Amplitude about 1.0mm
|
|
Impact resistance:
|
≥10g
|
|
Protection level:
|
IP40,can be customized IP65
|
|
Contact resistance:
|
≤50mΩ
|
|
Mechanical life:
|
Momentary type ≥ 1000000 times,other types ≥100000 times
|
|
Electrical life:
|
≥100000 times
|
|
Short circuit protection:
|
RT16-10A
|
|
connections - terminals:
|
1 x 0.5 mm² with cable end, 2 x 1.5 mm² or 1 x 2.5 mm² without cable end
|
|
Standard:
|
GB 14048.5-2008、IEC 60947-5-1
|
