Quick Details
-
Place of Origin:
-
Guangdong, China
-
Size:
-
L440*W285*H55mm
-
Weight:
-
4.3Kg
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
8.8Gpbs
-
Place of Origin:
-
Guangdong, China
-
Size:
-
L440*W285*H55mm
-
Weight:
-
4.3Kg

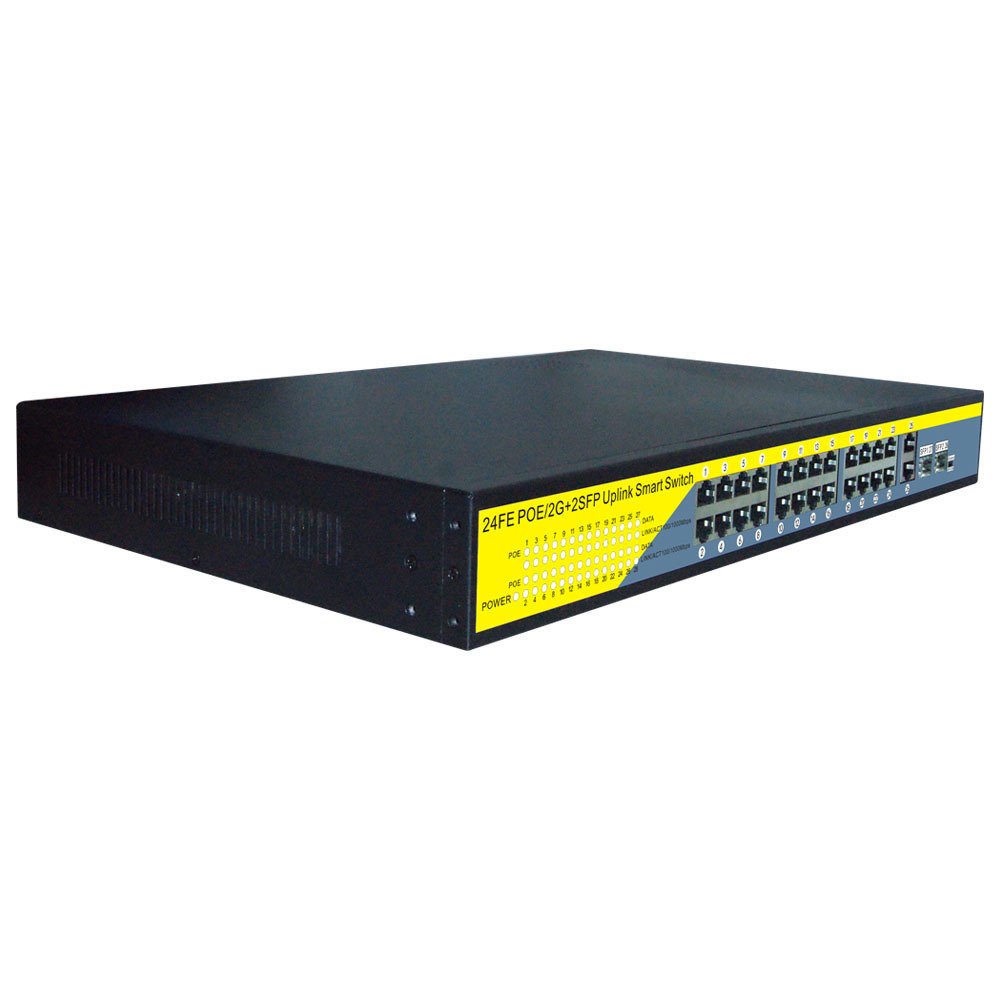

passive 250m Poe Ethernet Switch 24 Port gigia for cctv
Products Features:
² 24*10/100mbps POE port,2*10/100/1000mbps UP-Link port,2*SFP port
² 100m Transmission Distance,250m after use extend function
² Compatible with IEEE802.3AF/AT
² Whole Power:360W(52V 7.5A)
² All port supported by MDI/MDIX auto flip and self negotiation
² Supply 24pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
² Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
² E ach port max. power supply reached 30W.
Application:
² Wireless Access Point
² IP Camera
² IP Phone
² Computer Networks
Technicial Parameters:
| Product | 24 Port POE Switch (24+2+2Built-in) | Model No. | DJA-2422GB |
| Power Supply | Built-in and External are available | Output Power | 15.4W/30W |
| POE Port | 1 to 24 support IEEE802.3AF/AT | Power Pin | Both 1/2+,3/6- and 4/5+7/8- |
| POE Type | E nd-span | Whole Power | ≤360W (52V 7.5A) |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair | Power Distance | ≤250m |
| Switch Capability | 8.8Gbps | Data Distance | ≤250m |
| Forwarding Mode | Store and forward | Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx:14800pps/port |
| MAC Address | MAC address table 1K | Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender | Size | 440*285*55mm (L*W*H) |
| Warranty | 2 years | Package | DJA color box& neutral box |
We offer OEM,ODM and Customized services to meet your requirements,and also welcome you to be our DJA brand sales agent in your country.
