Quick Details
-
Power:
-
3kw
-
Min. Lifting Height:
-
1m
-
Table Size:
-
1800*1000mm or customized
-
Overall Dimensions:
-
2260*950*1100 mm
-
Weight:
-
500 kg
-

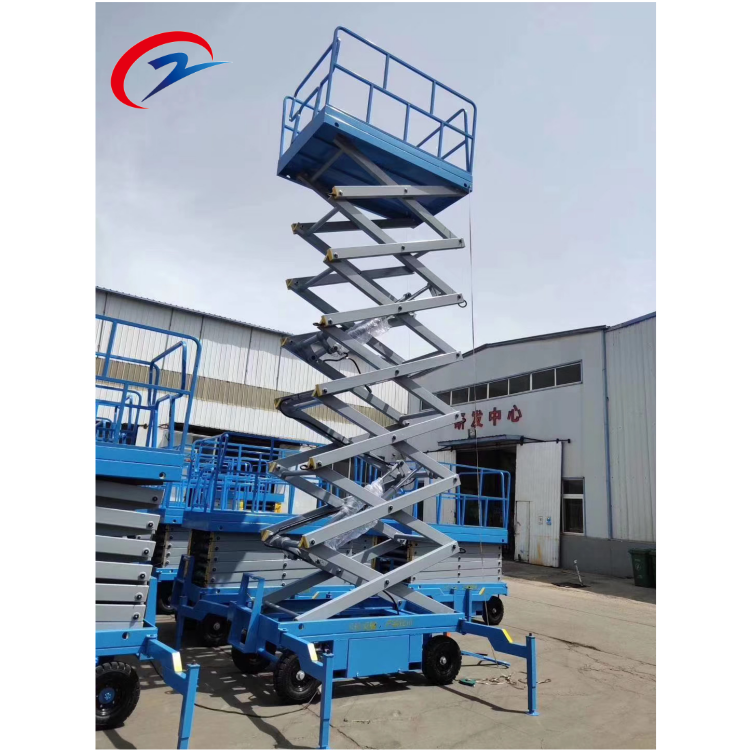

Product name:
-
Mobile scissors lift
-
Keywords:
-
Scissors lift
-
Application:
-
High altitude work
-
Material:
-
High-duty Steel Structure
-
Usage:
-
Higher Level
-
Color:
-
Customized Color
-
Lifting height:
-
6m
-
Control:
-
Hydraulic Control
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongcan
-
Power:
-
3kw
-
Min. Lifting Height:
-
1m
-
Table Size:
-
1800*1000mm or customized
-
Overall Dimensions:
-
2260*950*1100 mm
-
Weight:
-
500 kg
-
Product name:
-
Mobile scissors lift
-
Keywords:
-
Scissors lift
-
Application:
-
High altitude work
-
Material:
-
High-duty Steel Structure
-
Usage:
-
Higher Level
-
Color:
-
Customized Color
-
Lifting height:
-
6m
-
Control:
-
Hydraulic Control
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
Standard configuration
1. Table: 3mm flat bending plate
2. Scissor pole: 160*100*5.5mm rectangular tube, Q345 manganese steel
3. Underframe: 160*80*6mm 160*80*4 rectangular tube, Q345 manganese steel
4. Track rail: 4mm flat plate is bent to make track, and nylon slider is used as guide wheel, with large contact surface and stable lifting
5. Cylinder: 2 HSG90/60, 2 HSG100/70
6.Hydraulic tubing: 2-13-43MPa Hengyu double-layer steel mesh high-pressure tubing
7. Pumping station: install an emergency lowering valve, the platform can be manually controlled to lower when power is off; a built-in overflow valve can prevent the system pressure from being too high during upward movement and play an overload protection function
8. Power and voltage: 4kw/380v
9. Tires: 4 sets of 600-9 pneumatic tires
10. Outrigger: 160*80*5mm rectangular tube
11. Control form: upper and lower control.
12. Axle pin: 45# round steel, quenched and tempered. Pin shaft Φ40.
13. Hydraulic oil: 46# anti-wear hydraulic oil
14. Lifting speed: 4-6m/min, the falling speed is adjustable
|
Model
|
Table size（mm）
|
Load（kg）
|
Clear height（m）
|
Dimensions (without guardrail)（mm）
|
Weight
|
|
QYCY0.5-4
|
2100*830
|
500
|
4
|
2250*950*1200
|
880
|
|
QYCY0.5-6
|
2100*830
|
500
|
6
|
2250*950*1200
|
880
|
|
QYCY0.5-7
|
2100*830
|
500
|
6.8
|
2250*950*1280
|
970
|
|
QYCY0.5-8
|
2100*930
|
500
|
8
|
2250*1060*1380
|
1050
|
|
QYCY0.5-9
|
2100*930
|
500
|
9
|
2250*1060*1500
|
1165
|
|
QYCY0.5-10
|
2100*1230
|
500
|
10
|
2250*1350*1530
|
1360
|
|
QYCY0.3-11
|
2100*1230
|
300
|
11
|
2250*1350*1650
|
1400
|
|
QYCY0.5-12
|
2550*1530
|
500
|
12
|
2796*1670*1750
|
2260
|
|
QYCY0.5-14
|
2812*1530
|
500
|
14
|
3067*1730*1810
|
2486
|
|
QYCY0.3-16
|
2812*1600
|
300
|
16
|
3067*1810*2080
|
3063
|
|
QYCY0.3-18
|
3070*1600
|
300
|
18
|
3321*1810*2080
|
3900
|
|
QYCY1.0-4
|
2100*1200
|
1000
|
4
|
2250*1350*1180
|
1250
|
|
QYCY1.0-6
|
2100*1200
|
1000
|
6
|
2250*1350*1300
|
1400
|
|
QYCY1.0-8
|
2100*1200
|
1000
|
8
|
2250*1350*1420
|
1585
|
|
QYCY1.0-10
|
2100*1200
|
1000
|
10
|
2250*1350*1530
|
1700
|
|
QYCY1.0-12
|
2550*1530
|
1000
|
12
|
2796*1670*1750
|
2560
|
|
QYCY1.0-14
|
2812*1600
|
1000
|
14
|
3067*1810*1900
|
3230
|
|
QYCY1.5-6
|
2100*1530
|
1500
|
6
|
2250*1750*1530
|
1780
|
|
QYCY1.5-8
|
2100*1530
|
1500
|
8
|
2250*1750*1690
|
2070
|
|
QYCY1.5-10
|
2100*1500
|
1500
|
10
|
2250*1750*1850
|
2250
|
|
QYCY1.5-12
|
2600*1500
|
1500
|
12
|
3000*1900*2300
|
3500
|
|
QYCY1.5-14
|
3200*1600
|
1500
|
14
|
3500*2000*2200
|
5000
|
|
QYCY2.0-6
|
2100*1530
|
2000
|
6
|
2250*1750*1530
|
1780
|
|
QYCY2.0-8
|
2100*1530
|
2000
|
8
|
2250*1750*1690
|
2070
|
|
QYCY2.0-10
|
2100*1530
|
2000
|
10
|
2250*1750*1850
|
2250
|
|
QYCY2.0-12
|
2600*1500
|
2000
|
12
|
3000*1900*2300
|
4500
|
|
QYCY2.0-14
|
3200*1600
|
2000
|
14
|
3500*2000*2500
|
5500
|
After the payment of the deposit, the factory will start production, 7~15 working days will be normal delivery, before the delivery of balance payment
We can provide you with a variety of lift equipment
Mobile lift, fixed lift, self-propelled lift, boarding bridge, cargo lift, household lift, etc
Zhongcan Machinery Co., Ltd.
is a modern technology-based manufacturing enterprise specializing in the design, research and development, production, sales and after-sales service of lifting equipment.
There are six series of more than fifty varieties. The main products are wheelchair lifts, home lifts, self-propelled lifts, mobile lifts, fixed docking lamps, mobile docking lamps, fixed scissor lifts, rail hydraulic lift platforms, aluminum alloy lifts, car lifts, crank arm lifts, etc.
Our lifting platforms are sold all over the world, Europe, America, Southeast Asia and most other countries.Product quality is guaranteed, and the rate of negative evaluation is zero.Complete after-sales system, so that customers feel at ease to use
