Quick Details
-
Power:
-
0.75KW-30KW
-
Weight:
-
KG
-
Dimension(L*W*H):
-
customized
-
Product name:
-
dairy machine
-
Material:
-
Stainless Steel 304/316L
-
Function:
-
storage mixing tank
-
Usage:
-
Dairy Product Production Line
-
Name:
-
Milk Production Machinery
-
Final product:
-
Flavoured Milk Yogurt
-
Type:
-
Milk Cooling tank
-
Raw material:
-
Fresh Liquid Milk milk powder
-
Application:
-
Milk Yogurt
-
Origin:
-
China wenzhou LENO machinery
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Leno
-
Voltage:
-
110V-480V
-
Power:
-
0.75KW-30KW
-
Weight:
-
KG
-
Dimension(L*W*H):
-
customized
-
Product name:
-
dairy machine
-
Material:
-
Stainless Steel 304/316L
-
Function:
-
storage mixing tank
-
Usage:
-
Dairy Product Production Line
-
Name:
-
Milk Production Machinery
-
Final product:
-
Flavoured Milk Yogurt
-
Type:
-
Milk Cooling tank
-
Raw material:
-
Fresh Liquid Milk milk powder
-
Application:
-
Milk Yogurt
-
Origin:
-
China wenzhou LENO machinery
|
milk tank control monitor data system tracking milk tank sensor
|
|
|
|
|||
|
Profile type
|
Single layer tank
|
Double layer tank
|
Three layer tank
|
|||
|
Material
|
SS304 or SS316L
|
|
|
|||
|
Volume
|
100L-20T (Customized)
|
|
|
|||
|
Pressure
|
Vacuum-1Mpa
|
|
|
|||
|
Tank Type
|
Vertical type or Horizontal type
|
|
|
|||
|
Structure
|
/
|
Inner layer+dimple jacket
|
inner layer+dimple jacket+insulation
|
|||
|
Cooling way
|
/
|
R404
|
R404
|
|||
|
Agitator type
|
low speed
|
|
|
|||
|
|
0-63RPM
|
|
|
|||
|

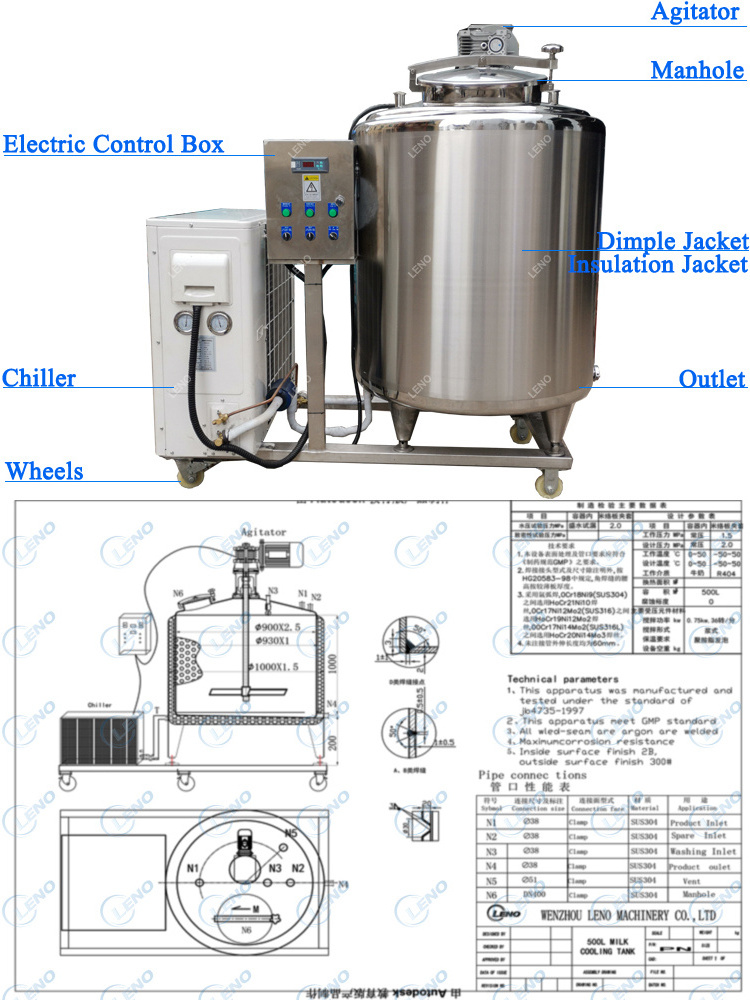

Other Components
|
1.Quick open manhole / Pressure manhole
|
|
|
|||
|
|
2.Various types of CIP cleaners
|
|
|
|||
|
|
3.Sterile respirator
|
|
|
|||
|
|
4.Adjustable Legs / Movable Wheels
|
|
|
|||
|
|
5.Inlet and Outlet sanitary valve
|
|
|
|||
|
|
6.Thermometer (According to customer requirements )
|
|
|
|||
|
|
7.Paddle blender .(According to customer requirements)
|
|
|
|||
|
|
8.Liquid level meter and lever controller (According to customer requirements)
|
|
|
|||
|
|
9.Ladder,refrigerator,compressor
|
|
|
|||
|
Model
|
Volume(L)
|
Compressor Powr(KW)
|
Dimension of tank(D*L(mm)
|
Agitator power(kw)
|
Agitator speed(r/min)
|
|||||
|
LNT-500
|
500
|
4.5
|
Φ800x900
|
0.55
|
36RPM
|
|||||
|
LNT-800
|
800
|
8
|
Φ1000x900
|
0.75
|
|
|||||
|
LNT-1000
|
1000
|
12
|
Φ1200x1000
|
0.75
|
|
|||||
|
LNT-2000
|
2000
|
15
|
Φ1200x1000
|
1.5
|
|
|||||
|
LNT-3000
|
3000
|
15
|
Φ1400x2000
|
2.2
|
|
|||||
|
LNT-6000
|
6000
|
30
|
Φ1600x3000
|
3.0
|
|
|||||
|
LNT-8000
|
8000
|
30
|
Φ1800x3000
|
3.0
|
|
|||||
|
LNT-10000
|
10000
|
44
|
Φ2000x3500
|
3.0
|
|
|||||
|
We can customize the equipment according to customer requirements.
|
|
|
|
|
|
|||||
Application:
Used for storage and cooling the fresh juice of pasture and farm.and also can be used for
small milk collection station, dairy processing plants, and food, feed, pharmaceutical factories.
small milk collection station, dairy processing plants, and food, feed, pharmaceutical factories.
|
Q1
|
Are you trade or manufacturer?
|
|
A
|
We are a factory with an international sales company specialized in support for global distributors.
|
|
Q2
|
Can you provide instant technical consulting services?
|
|
A
|
We are able to discuss technical details and offer suggestions over the phone in English.
You can get the answers in minutes, instead of days. |
|
Q3
|
What's the difference between Ready-To-Ship and Customized products?
|
|
A
|
Some of RTS standard products are in stock and ready to ship in 2-3 days.
We can also quick design and make the drawings for customer requirements, then begin the production. |
|
Q4
|
What is the payment terms?
|
|
A
|
We accept Alibaba Trade Assurance Order, also can T/T and L/C.
|
|
Q5
|
How to choose the shipment way?
|
|
A
|
It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
|
|
Q6
|
How about the after-sales service?
|
|
A
|
Fast after-sales support. Our products have a one-year warranty and free permanent consulting services.
|
