Quick Details
-
Place of Origin:
-
Jiangsu, China, China Jiangsu
-
Engine type:
-
4 Stoke
-
Product Name:
-

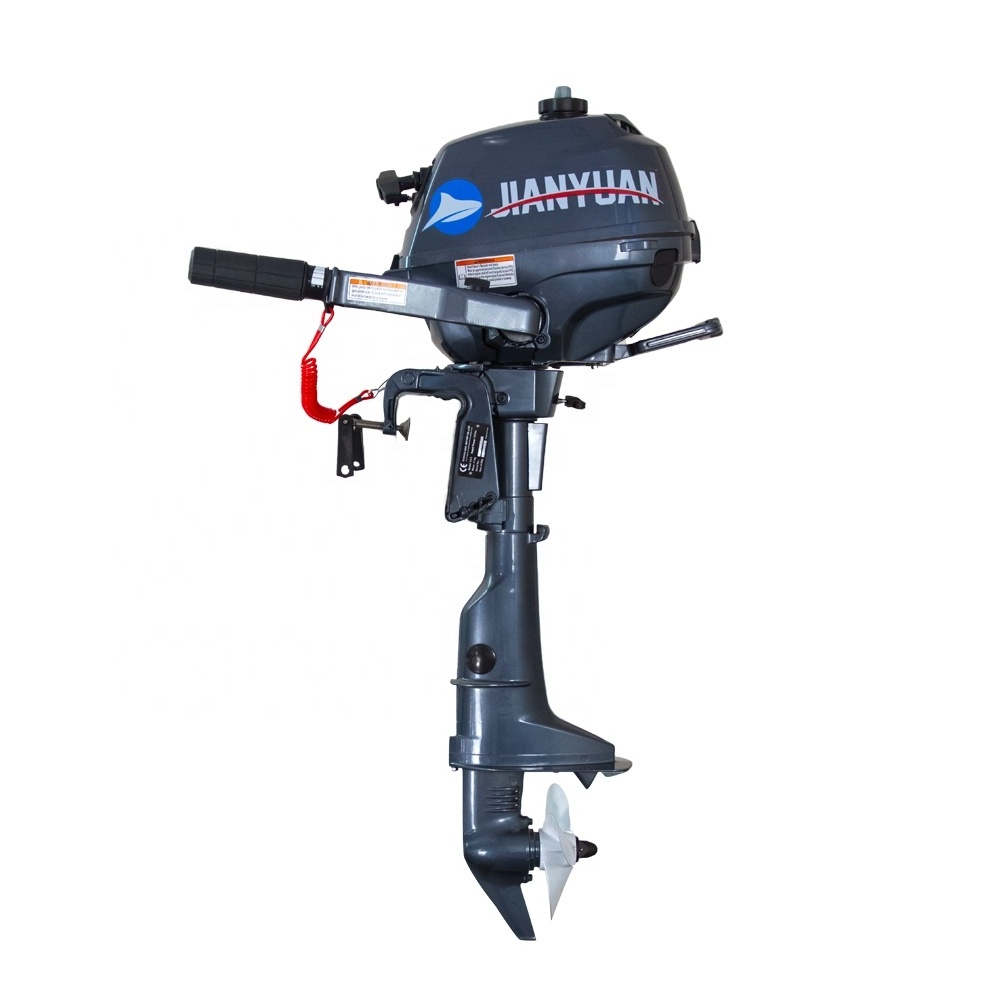

JIANYUAN 4-stroke 4hp outboard engine
-
Starting system:
-
Manual
-
Warranty:
-
6 Months
-
Displacement:
-
72cc
-
Color:
-
Silver
-
Control System:
-
Steering Handle
-
Type:
-
4 Stroke
-
Engine Model:
-
4-Stroke 4hp
Quick Details
-
Dimensions (L x W x H) (mm):
-
101*64.5*39
-
Brand Name:
-
JIANYUAN
-
Model Number:
-
4HP
-
Place of Origin:
-
Jiangsu, China, China Jiangsu
-
Engine type:
-
4 Stoke
-
Product Name:
-
JIANYUAN 4-stroke 4hp outboard engine
-
Starting system:
-
Manual
-
Warranty:
-
6 Months
-
Displacement:
-
72cc
-
Color:
-
Silver
-
Control System:
-
Steering Handle
-
Type:
-
4 Stroke
-
Engine Model:
-
4-Stroke 4hp
Product Description
Four stroke 4 horsepower
1. Suitable for ship type, four stroke, 4 hp outboard engine, suitable for 2 Small ships of various materials ranging from
0 m to 3.3 m (such as Inflatable boat, wooden boat, fiberglass boat, plastic boat, etc.)
2. During driving, there is a built-in fuel tank with one tank of oil. The maximum throttle operation can last for about 2 hoursand the driving speed is about 15Km/h. Due to different ship types, loads, and natural conditions, the speed of travel may also vary.
0 m to 3.3 m (such as Inflatable boat, wooden boat, fiberglass boat, plastic boat, etc.)
2. During driving, there is a built-in fuel tank with one tank of oil. The maximum throttle operation can last for about 2 hoursand the driving speed is about 15Km/h. Due to different ship types, loads, and natural conditions, the speed of travel may also vary.
3. Use four stroke machine fuel: Please use gasoline grade 92 or above, and add engine oil separately to the engine oil
tank. Add 350 milliliters of engine oil.
tank. Add 350 milliliters of engine oil.
4. Other instructions: This machine has a forward neutral gear, an infinitely variable throttle, and a water cooling system.
Aluminum alloy propeller
Aluminum alloy propeller
Detailed Images
|
Product Model
|
F4
|
F6
|
F8
|
F15
|
F18
|
|
Engine Type
|
4 Stroke
|
4 Stroke
|
4 Stroke
|
4 Stroke
|
4 Stroke
|
|
Idle Speed(r/min)
|
1900-2100
|
1450-1550
|
1450-1550
|
900-1000
|
900-1000
|
|
Displacement(cc)
|
72
|
148
|
148
|
323
|
323
|
|
Bore x Stroke(mm)
|
54*31.5
|
59*41
|
59*41
|
59*59
|
59*59
|
|
Max Power
Output(kw(ps)/r/min) |
1.91KW(4)@5000
|
4.4(6.0)@5000
|
4.4(8.0)@5000
|
5.9(15)@5200
|
5.9(18)@5200
|
|
Transom Height(mm)(S/L)
|
S:381 L:508
|
S:381 L:508
|
S:381 L:508
|
S:381 L:508
|
S:381 L:508
|
|
Net Weight(kg)
|
S:17 L:19
|
S:27 L:27
|
S:27 L:27
|
S:48 L:51
|
S:48 L:51
|
|
Packing Size(mm)
|
S:1010*645*390
|
S:1020*718*270
|
S:1020*718*270
|
S:108*1000*427
|
S:108*1000*427
|
|
|
L:1110*645*390
|
L:1020*718*270
|
L:1020*718*270
|
L:1207*1000*427
|
L:1207*1000*427
|
Packaging details
Packaging exterior
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
Inside the packaging
The exterior is wrapped in a hard paper box, and the interior is wrapped with high-density foam inlaid at the top and bottom, greatly reducing the probability of damage caused by impact and extrusion during transportation.
Company Display
Jianyuan Yacht Sales Co., Ltd. is a high-tech enterprise dedicated to the production and sales of outboard engines, yachts, and other products. Crafted with craftsmanship and excellent quality, the company adheres to high industry standards in product production and research, innovatively quotes overseas core technologies, and combines modern advanced equipment to grasp every detail with craftsmanship, allowing our aquatic products to win market favor with high quality.
FAQ
(A)： How could I get a sample?
We can deliver the conventional samples within 5 days. You have to afford the sample cost and express fee.
(B):How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
3) We will provide some wearing spare parts freely.
(C):Whether you could make our brand or color on your products?
Yes. We can print your Logo on the products if you can meet our MOQ.
(D):Should I mix gasoline with oil if I buy 2-stroke outboard engine?
Yes, you should mxi gasoline and oil with rate 25:1 in run-in period, and rate 50:1 after run-in period.
(E):How can I get spare parts?
You can buy spare parts from us. Some of spare parts like propeller are universal with other brand machine.
(B):How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
3) We will provide some wearing spare parts freely.
(C):Whether you could make our brand or color on your products?
Yes. We can print your Logo on the products if you can meet our MOQ.
(D):Should I mix gasoline with oil if I buy 2-stroke outboard engine?
Yes, you should mxi gasoline and oil with rate 25:1 in run-in period, and rate 50:1 after run-in period.
(E):How can I get spare parts?
You can buy spare parts from us. Some of spare parts like propeller are universal with other brand machine.
