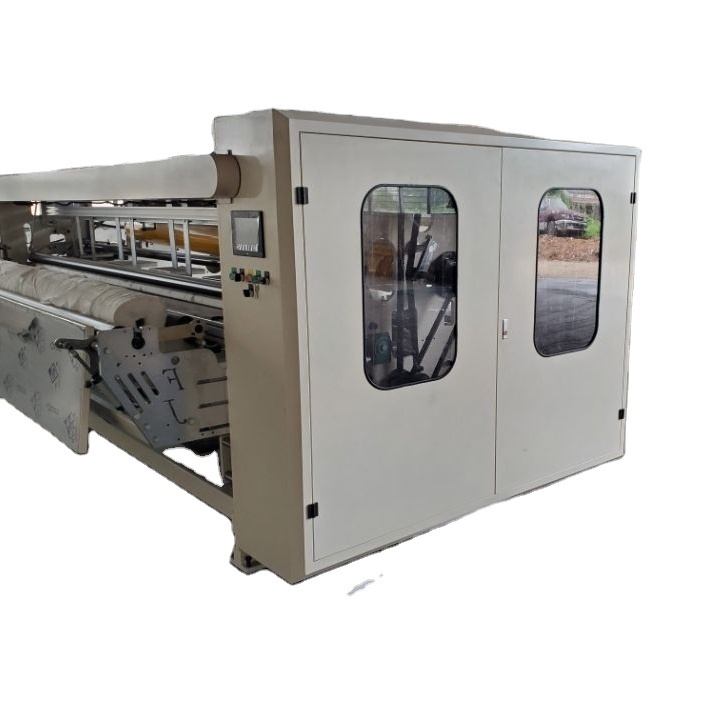

J:CDH-1575-YE Tissue Toilet Paper Roll Making Machine

J:CDH-1575-YE Tissue Toilet Paper Roll Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $32500

≥2 Sets

US $28500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V 50HZ

Power:: 7.5KW

Dimension(L*W*H):: 6200*4200*1800mm

Weight:: 6800 kg

Warranty:: One year

Material:: Virgin Wood Pulp

Core:: coreless

Size:: 90-250mm diameter

Speed:: 180-200 M/MIN

Finished Product:: TOILET ROLLER PAPER

Embossing roller:: steel to rubber

Layer:: 2 Ply

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: None

Certification:: CE

Quick Details

Production Capacity:: 50 pcs/min

Place of Origin:: Fujian, China

Brand Name:: chuangda

Voltage:: 380V 50HZ

Power:: 7.5KW

Dimension(L*W*H):: 6200*4200*1800mm

Weight:: 6800 kg

Warranty:: One year

Material:: Virgin Wood Pulp

Core:: coreless

Size:: 90-250mm diameter

Speed:: 180-200 M/MIN

Finished Product:: TOILET ROLLER PAPER

Embossing roller:: steel to rubber

Layer:: 2 Ply

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: None

Certification:: CE

Product Description

High Quality Toilet Paper Making Machine,Small Toilet Paper Making Machine,Toilet Roll Making Machine Price

Full-automatic edge-trimming tail-gluing embossing rewinding and perforating toilet paper machine

toilet paper machine,toilet paper manufacturing machine,toilet roll making machine, toilet paper making machine,

paper machine,automatic paper perforating machine,toilet tissue machine, bumf machine, bathroom tissue machine,

bumph machine, tissues machine, tissue machine, toilet paper roll machine,toilet roll making machine

Equipment Function & Character:

1.The machine is with international advanced PLC programmable controlling technical, frequency conversion speed-regulator, electronic brake and man-machine interface operation table. The multi functions mounting on this machine has won the favor and credit among users by their profound practicability.

2.Under European CE standard designing, Passed CE certificate, With CE or UL certificate for Electric Parts and with safety device, such as, safety-guard door, emergency stop and so on.

3.Most of parts are precisely processed by numerical-control machine;the key mechanical parts are under CNC processing; while the main outsourcing parts are world famous brand.

4.Automatic roll core splicing unit without manual core feeding; Auto edge trimming, glue spraying and sealing synchronously in one time, which had materialized the popular technique of edge-trimming and tail-gluing as well as auto pushing out the final products after rewinding;

5. Monitoring system on broken paper or torn edge under high-speed running the equipment; Jumbo roll tension controlling system; Pneumatic lifting the jumbo roll;

6.It can work together with color printing and rewinding machine or glue laminating unit to produce kitchen towel.

Main Technical Parameter :

Machine Model		1092	1575	1760	2200	2500	2800
Width (mm)		1350	1750	1900	2150	2450	2750
Finished Products Diameter		Φ 60~150mm (Tightness can be adjustable)
Finished Products Inner Diameter		Φ32~50 mm
Jumbo roll diameter (mm)		Φ 1200 (Other sizes can be ordered)
Jumbo Roll Inner Diameter		3”,76.2 mm (other sizes can be ordered)
Perforation distance (mm)		4 blade,90~160mm;2 blade,180~320mm;
Production speed		160-180 m/min
Parameter set		Touching-screener Multi-menu Man-machine Interface Operation System
Programmable controller		Mitsubishi PLC program
Mechanical driving		Driven by stepless speed-regulator to guarantee the precise length of final products.
Embossment unit		Single embossment, Double embossment, Steel to steel embossment;
Embossment down roller		Felt roller, paper roller, rubber roller
Jumbo roll stand		1-3 plies (ply quantity can be ordered)
Air pneumatic system		3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves)
Power		5.5-15KW (Frequency speed-regulate )
Overall size (m)(L×W×H)		6 X (2.3-4) X 1.8
Weight of equipment		4000~8000kg (approximately)
Chosen items (Should be ordered separately)
Embossment	Single embossment, double embossment, steel to steel embossment
Embossment down roller	Felt roller, paper roller, rubber roller
Jumbo roll stand	1-3 plies
Jumbo roll stand driving	Driven by variator
Rewinding unit	Non-core unit
Printing unit	Single color heliotype printing unit
Side rolling embossment	Steel to steel
Perforation mode	Air pneumatic separating unit
Smooth embossment	Steel to steel, Steel to rubber ;
Remote telecom service system	Should be ordered separately.
