Quick Details
-
Model Number:
-
KCD4
-
Max. Current:
-
20A
-
Mechanical Life:
-
10000 Cycles
-
Function:
-
On-off Lighted
-
Rating:
-
16A 250VAC / 20A 125VAC
-
Products name:
-
Electric Rocker Switch
-
Application:
-
Electric Equipment
-
Color:
-
Red Yellow Green Blue White
-
Material:
-
PA66
-
Lamp color:
-
Orange\Red\Blue\Green\yellow
-
Type:
-
On-off Two Position
-
Electrical Life:
-
Min10000 Cycles
-
Pins:
-
4 Pin 6 Pin
-
Certification:
-
CE,CB,QC
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANHEDA
-
Model Number:
-
KCD4
-
Max. Current:
-
20A
-
Mechanical Life:
-
10000 Cycles
-
Function:
-
On-off Lighted
-
Rating:
-
16A 250VAC / 20A 125VAC
-
Products name:
-
Electric Rocker Switch
-
Application:
-
Electric Equipment
-
Color:
-
Red Yellow Green Blue White
-
Material:
-
PA66
-
Lamp color:
-
Orange\Red\Blue\Green\yellow
-
Type:
-
On-off Two Position
-
Electrical Life:
-
Min10000 Cycles
-
Pins:
-
4 Pin 6 Pin
-
Certification:
-
CE,CB,QC

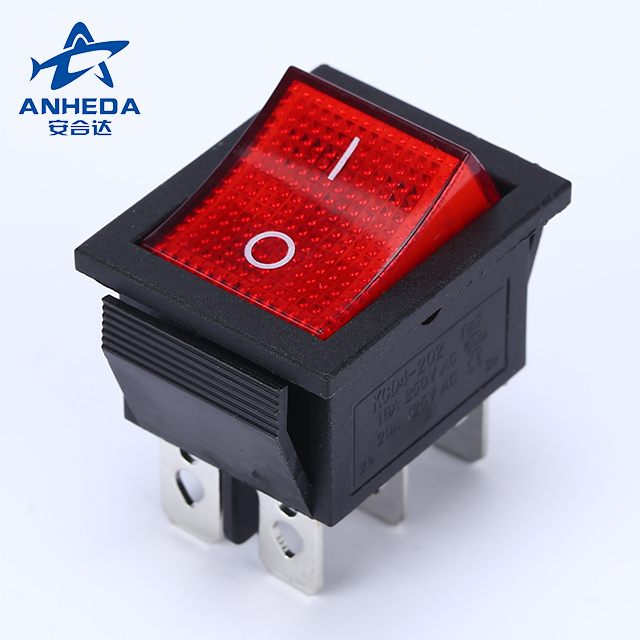

high quality 20a 125v 15a 250v ac kcd4 red rocker switch 4/6 pin
high quality 20a 125v 15a 250v ac kcd4 red rocker switch
high quality 20a 125v 15a 250v ac kcd4 red rocker switch
Product details
| Function | ON OFF, ON ON, ON OFF ON |
| Type | KCD4 Rocker Switch |
| Certificate | Rohs,CE,CQC |
| Lamp color | White Orange Red Blue Green |
| Housing color | CUSTOM-MADE |
| Material | PA/PC |
| Color | Red,Green |
| Product type | Rocker Switch |
| Item | 6 pins rocker switch |
| Rating | 16A 250VAC / 20A 125VAC |
| Product Keywords | 20a 125v 15a 250v ac rocker switch,4 pins rocker switch,red rocker switch |
Quality assurance:
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
| Specification of Rocker Switch | |||
| Rating | 16A/250V AC, 20A/125V AC | ||
| Rated Load | 2/8A 250V AC | ||
| Contact Resistance | ≤50MΩ | ||
| Dielectric Intensity | ≥1500V AC/min | ||
| Withstand Voltage | 1500V AC/min | ||
| Temperature | -25~85°C | ||
| Insulation Resistance | ≥100MΩ | ||
| Life | ≥10,000 cycles | ||
| Pins | 4/6 | ||
| Function | ON-OFF/ON-ON/ON-OFF-ON | ||
| Illumniated | 220V Neon Lamp | ||
| APPROVALS | |||
| CE | CQC | Rohs | |
Detailed Images
| Material of Rocker Switch | |
| Part | Material |
| Base Plastic | Nylon |
| Button Plastic | PA66/ PC |
| Terminal | Brass(tin plated) |
| Contact | Compound silver/ Copper |
| Spring | Tungsten steel |
| Waterproof Cap | PVC ( If you required) |
| Mount | Snap in |
Application:Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc |
|
