HDPE Geocell cellular confinement system

HDPE Geocell cellular confinement system

FOB Reference Price: Get Latest Price

≥1000 Square meters

US $2.49

≥3000 Square meters

US $1.33

≥10000 Square meters

US $1.09

≥20000 Square meters

US $1.02

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Load support,Retaining wall,slope protection, Load support,Slope stabilization,Retaining wall, ,slope protection

Design Style:: Industrial

Place of Origin:: Shandong, China

Brand Name:: Road or OEM or Customized

Model Number:: TGLG-50-400,200-400,75-330,100-330,200-330

Product name:: HDPE Smooth/Textured Geocell

Material:: HDPE PE

Color of geocell:: Black/Green or customized

Surface:: Smooth or Textured for perforated or non-perforated

Height of geocell:: 50,75,100,150,200mm

Welding distance:: 330/400/445/500mm

sheet thickness:: Smooth:1.0-1.1mm/Textured:1.4-1.5mm

Tensile Yield strength:: ≥20Mpa

Seam Peel Strength:: Smooth≥500-2000N/Textured≥750-2000N

Quick Details

Warranty:: More than 5 years

After-sale Service:: Online technical support, Other

Project Solution Capability:: Others

Application:: Load support,Retaining wall,slope protection, Load support,Slope stabilization,Retaining wall, ,slope protection

Design Style:: Industrial

Place of Origin:: Shandong, China

Brand Name:: Road or OEM or Customized

Model Number:: TGLG-50-400,200-400,75-330,100-330,200-330

Product name:: HDPE Smooth/Textured Geocell

Material:: HDPE PE

Color of geocell:: Black/Green or customized

Surface:: Smooth or Textured for perforated or non-perforated

Height of geocell:: 50,75,100,150,200mm

Welding distance:: 330/400/445/500mm

sheet thickness:: Smooth:1.0-1.1mm/Textured:1.4-1.5mm

Tensile Yield strength:: ≥20Mpa

Seam Peel Strength:: Smooth≥500-2000N/Textured≥750-2000N

Product Description

HDPE Geocell

Geocell is a net-shapped cell structure made by welding high intensity thermoplastic sheet

Features

It is flexible to fold during transportation stretching out and being filled with stone or concrete during service and forming into structure with powerf

SMOOTH

TEXTURED

1.can be used as cushion coat to strength loading capacity of weak ground.

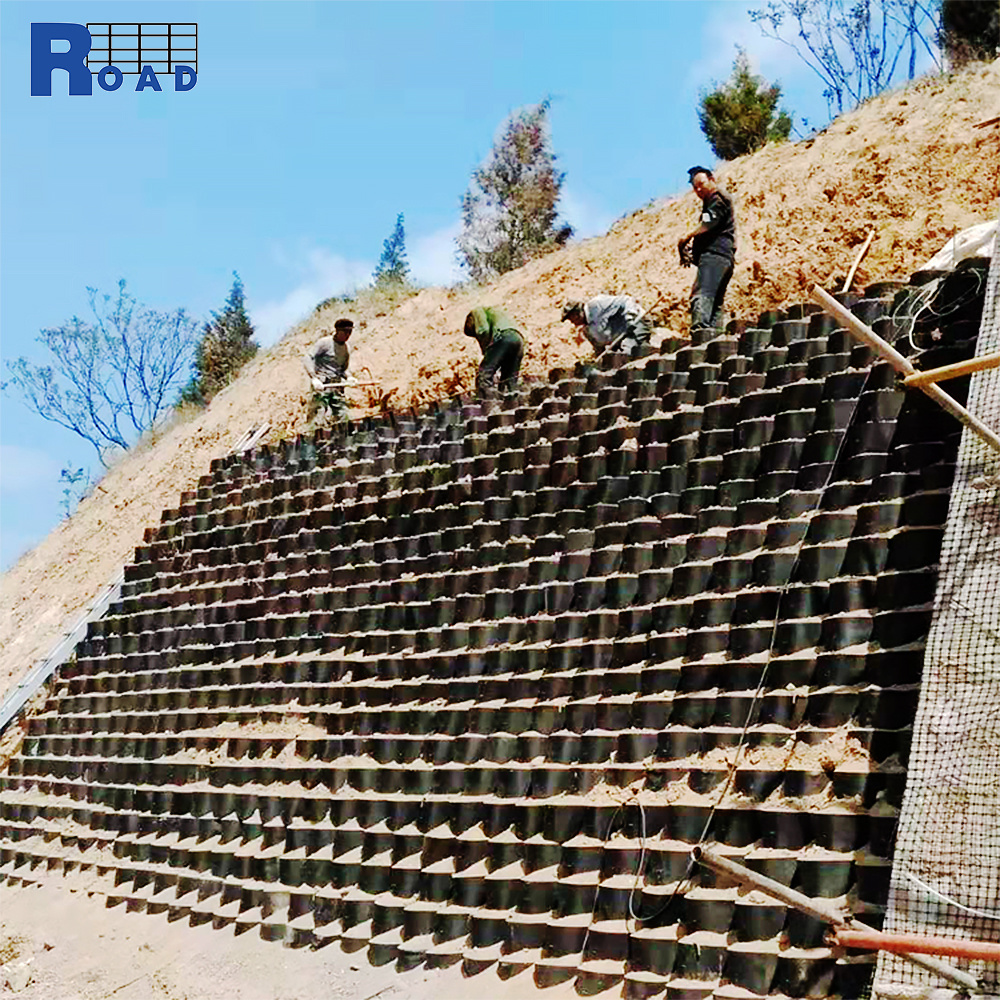

2.can be paved in slope as slope protection structure.
3.can be used to build the support block structure.

Application Scenario

Processing half filled and half excavated roadbeds

Roadbed in windy and sandy areas

Treatment of Loess Collapse Roadbed

Packing&Shipping

To better ensure the safety of your goods,professional,environmentally friendly convenient and efficient packaging services will be provided

HDPE Geocell Product Properties

Spec	Height (mm)	Welding distance (mm)	smooth Sheet thickness(mm)	textured Sheet thickness(mm)	Seam peel strength≥（N)	Expanded Cell Size (mm)	Expanded panel size(m)
TGLG-75-330	75	330	1.1	1.5	1065	244×203	2.44×6.15
TGLG-100-330	100		356	1.1	1.5			1420	259×224	2.56×6.52
TGLG-150-330	150		400	1.1	1.5			2130	295×250	4×5
TGLG-200-330	200		445	1.1	1.5			2840	320×287	2.56×8.35
TGLG-75-356	75	356	1.1	1.5	1065	259×224	2.56×6.52
TGLG-100-356	100		712	1.1	1.5			1420
TGLG-150-356	150			1.1	1.5			2130
TGLG-200-356	200			1.1	1.5			2840
TGLG-75-400	75	400	1.1	1.5	1065	295×250	4×5
TGLG-100-400	100			1.1	1.5			1420
TGLG-150-400	150			1.1	1.5			2130
TGLG-200-400	200			1.1	1.5			2840
TGLG-75-445	75	445	1.1	1.5	1065	320×287	2.56×8.35
TGLG-100-445	100			1.1	1.5			1420
TGLG-150-445	150			1.1	1.5			2130
TGLG-200-445	200			1.1	1.5			2840
TGLG-75-660	75	660	1.1	1.5	1065	488×406	2.44×12.29
TGLG-100-660	100			1.1	1.5			1420
TGLG-150-660	150			1.1	1.5			2130
TGLG-200-660	200			1.1	1.5			2840
TGLG-75-712	75	712	1.1	1.5	1065	508×475	2.56×13.72
TGLG-100-712	100			1.1	1.5			1420
TGLG-150-712	150			1.1	1.5			2130
TGLG-200-712	200			1.1	1.5			2840
