Quick Details
-
1080P iptv transcoder Input:
-
Dual GbE interfaces
-
1080P iptv transcoder Output:
-
Dual GbE interfaces
-
Video encoding:
-
HEVC/H.264/MPEG-2
-
Audio encoding:
-
MPEG-1 Layer II, AAC, AC3
-
1080P iptv transcoder Protocol:
-
UDP, RTSP, RTMP, HTTP, RTMPS, HLS, FTP, SRT, RTMPS
-
IPTV Channels:
-
200channels SD/96 channels 720P/48channels 1080p/8channels 4K
-
Feature:
-
Delivery TV video audio any to any for WAN transmission
-
Resolution frame rate:
-
4K, HD to SD down, SD to HD up conversion
-

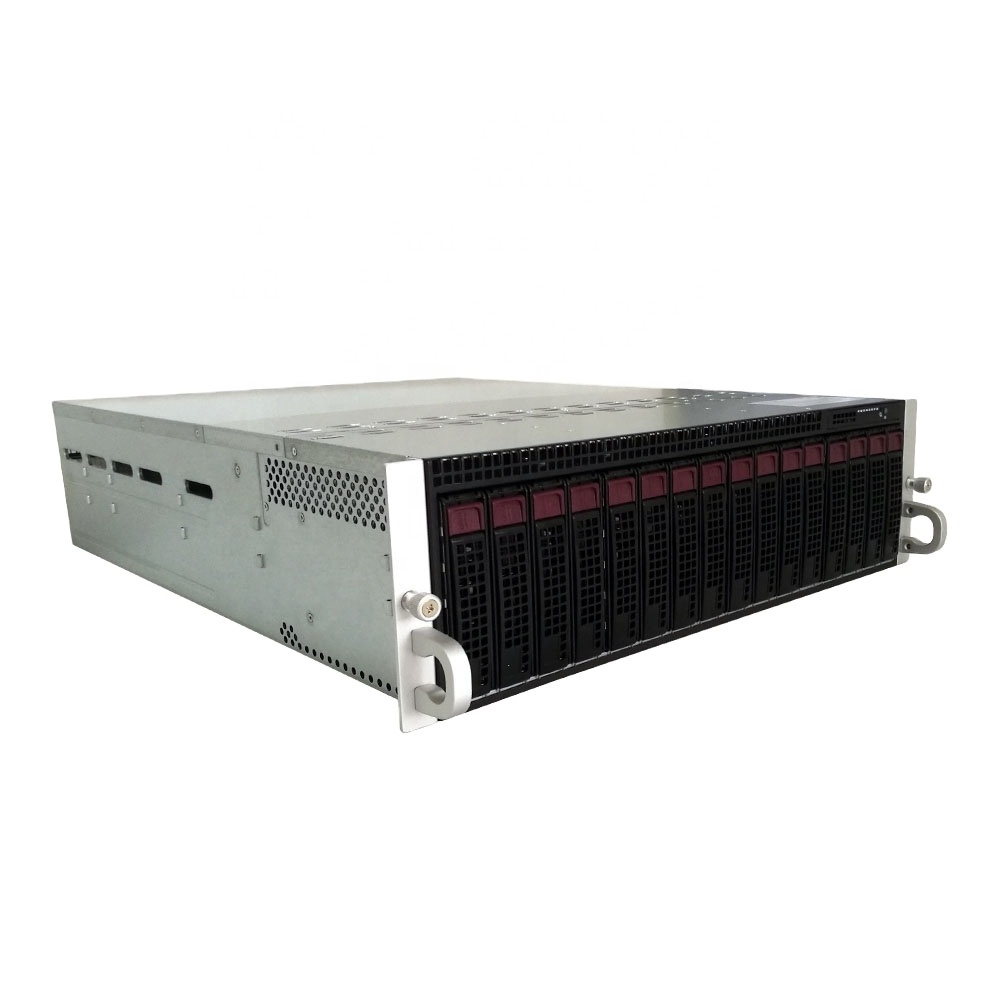

Product name:
-
upd to http transcoder
-
Application:
-
IPTV OTT System Total Solution
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibvision
-
Model Number:
-
Anystream428
-
1080P iptv transcoder Input:
-
Dual GbE interfaces
-
1080P iptv transcoder Output:
-
Dual GbE interfaces
-
Video encoding:
-
HEVC/H.264/MPEG-2
-
Audio encoding:
-
MPEG-1 Layer II, AAC, AC3
-
1080P iptv transcoder Protocol:
-
UDP, RTSP, RTMP, HTTP, RTMPS, HLS, FTP, SRT, RTMPS
-
IPTV Channels:
-
200channels SD/96 channels 720P/48channels 1080p/8channels 4K
-
Feature:
-
Delivery TV video audio any to any for WAN transmission
-
Resolution frame rate:
-
4K, HD to SD down, SD to HD up conversion
-
Product name:
-
upd to http transcoder
-
Application:
-
IPTV OTT System Total Solution
Highlights
1.Telco Quality, Highly Reliable, High density 3-RU platform can process up to 200*SD, 96*720P, 48*1080P Full HD(1080P), 16*4K profiles
2.Achieve a compression gain of 40-60% over H.264/AVC in subjective quality, optimized for 800 Kbps for SD 1.5Mbps for HD 720p,3Mbps for HD 1080p
3.Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application
4. H.265/HEVC Main Profiles Level 5.1
5.Baseline, main profile & high profile with variable GOP
6.Picture-in-picture (PIP) operation supported
7.HD-to-SD down, SD-to-HD up conversion
8.GbE IP outputs –UDP, RTSP, RTMP,Pull/Push HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files
9.Flexible GOP structures with Reference-frame and B-frame edit
10.Frame rate down- and up-conversion
11.High quality pre-processing including filtering, Deinterlacing, cross scaling,De-Block Filter
12.Support for Variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency
13.PCR correction to accurately correct several PCR of input data
14.Based on embedded Ubuntu Linux via flashdisk
15.DVB and Subtitles can be included in transcoded streams (burned-in), offers subtitles with 100% compatibility with all existing device
16. Logo insertion and Image cropping/resizing
17.High contrast LCD display
18.Parameter template settings and imports
19.Real time preview of input video stream in encoding and parameter configuration
20.Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours
21.Real-time dynamic monitoring of each transcoding channel operation
22.Easy configuration via Web GUI
23.Designed for secure 24*7*365 operation
24.Dual hot-swappable power supply
|
Inputs and Outputs
|
|
|
Connector
|
Two Gig Ethernet Ports per blade,
|
|
|
Up to 8 hot plug blades
|
|
|
RJ45 100/1000M - Auto Negot
|
|
|
MPEG-TS(MPTS or SPTS) Over IP input
|
|
|
MPEG-TS (SPTS) Over IP out
|
|
|
TS Over UDP/RTP/HTTP
|
|
|
RTP over HTTP
|
|
|
FLV Over HTTP
|
|
|
RTMP
|
|
|
MP3 over HTTP
|
|
|
FLV
|
|
|
ASP
|
|
|
HTTP Live streaming Apple HLS (m3u8)
|
|
Pre-processing
|
|
|
|
LOGO insertion
Subtitle Overlay |
Option Static or roll subtitle, up to 3 way
|
|
|
Deinterlace
|
default, Close, Linear, Blend, Bob, Yadif
|
|
|
PID Configuration
|
PMT/Video/Audio PID;
|
|
|
|
PCR delay/disp interval
|
|
|
Advanced Processing
|
In-loop De-blocking filter Scene detection,
|
|
|
|
CABAC. CAVLC Entropy coding Automatic
|
|
|
|
PicAFF, MBAFF Interlaced coding Automatic
|
|
|
|
Flexible Macroblock Ordering(ASO) and Arbitrary
|
|
|
|
Slice Ordering(ASO) in Baseline profile
|
|
|
|
8x8 vs, 4x4 Transform Adaptivity in High profile
|
|
|
|
Quantization Scaling Matrices in High profile
|
|
|
|
I,B and P Slices,Multiple Reference Frames
|
|
|
Video Processing
|
|
|
|
Bitrate Control
|
VBR, CBR, ABR, NearCBR
|
|
|
Frame rate
|
2-30fps
|
|
|
Screen Ratio
|
4:3, 16:9
|
|
|
Option
|
Multiple concurrent outputs per each encoding input
|
|
|
|
H.265/ HEVC Main profile Level 4.1&5.1
|
|
|
|
H.264 Main/High Profile 3.0- 5.1
|
|
|
|
H.264 Baseline Levels 1, 2, 3
|
|
|
|
H.263 Profile Levels 10, 20, 30
|
|
|
|
MPEG-4 SP, Levels 0, 0b, 1, 2, 3
|
|
|
Encoding delay
|
1000-1500ms
|
|
|
B-Frame
|
0-5
|
|
|
Reference Frame
|
1-6
|
|
|
Key frame rate
|
1-18
|
|
|
Video Bitrate
|
32kbps to 10Mbps
|
|
|
Video Delay
|
0-1000ms
|
|
|
Scale
|
Ordinary, Auto Padding intelligent Scale
|
|
|
Fast Mode
|
Quality Priority,Balanced, Speed Priority
|
|
|
MPEG-2 Input
|
H.264 Output
|
Max.Channels
|
|
|
SD/480i inputs @4 Mbps
|
SD @800kbps, 480p
|
25
|
|
|
720p inputs @10 Mbps
|
720p @2Mbps
|
12
|
|
|
1080i/p inputs @18Mbps
|
1080p @ 4Mbps
|
5-6
|
|
|
4k/H.264 @20Mbps
|
4k @ 12Mbps
|
1-2
|
|
|
|
3840x2160p(UHD)
|
|
|
|
|
1920x1080p,1280x720p
|
|
|
|
|
720x576p, 720x480p, 640x480p, 480x360p,
|
|
|
|
|
Configurable
|
|
|
|
Audio Processing
|
|
|
|
Numbers of encoding
|
2 audio Channels per one video source
(Provides up to 8 audio channels for customization) |
|
|
Audio encoding
|
AAC,AACv2,AMR
|
|
|
|
D Digital(AC-3)/D Digital Plus(EAC-3)
|
|
|
|
MP2A,MP3A,Transparent
|
|
|
Audio Channel
|
Single, Dual, 5.1 Channel
|
|
|
Audio Track
|
0, 1, 2, 3
|
|
|
AV Sync
|
0s, 0.5s, 1s, 3s, 4s, 5s, 6s
|
|
|
Sample rate
|
8khz to 48khz
|
|
|
Bitrate rate
|
8kbps to 384kbps
|
|
|
Volume
|
Ordinary,Intensity1,Intensity2,Intensity3
|
|
|
AGC
|
On, Off
|
|
|
Management
|
|
|
|
Local interface
|
Power On/Off buttonPower On/Off button
Power LED; Blade status LED |
|
|
Configuration
|
Web-based user's interface
|
|
|
Port
|
RJ45, 10/100/1000M BaseT
|
|
|
Language
|
English
|
|
|
Environment
|
|
|
|
Fans
|
4x 8cm Heavy duty fans with optimal cooling zone
|
|
|
Form Factor
|
3RU
|
|
|
|
Dual hot-swappable
|
|
|
|
1000W: 100-120V,50-60Hz, 12-10Amp
|
|
|
|
1620W: 180-240V,50-60Hz, 10.5-8Amp
|
|
|
Operation temperature
|
0~50℃ (32 -122°F)
|
|
|
Storage temperature
|
-40-70°C (-40-158°F)
|
|
|
Power consumption (per blade)
|
1620W high-efficiency redundant
|
|
|
Dimensions
|
590mm (W) x 440mm (L) x 140mm (H)
|
|
|
Weight
|
40kg (62.2lbs)
|
|
